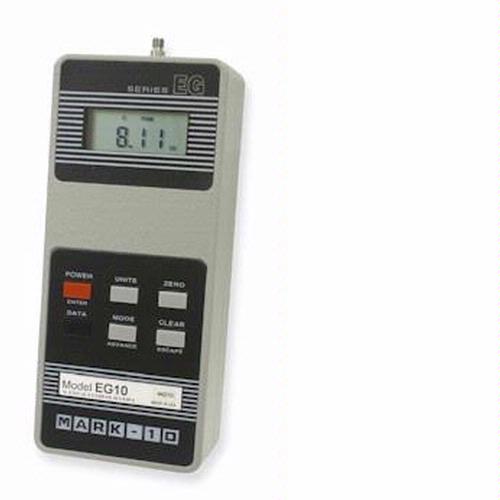

Mark-10 EG2 Force Gauge, 2 x 0.002 lb |
|
±0.3% accuracy. Dual setpoints with outputs, programmable analog and digital filters. Reversible aluminum housing for hand held use or stand mounting. Optional RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. more ... |
Test Equipment >
Force Gauges >
Digital Force Gauges
|
|
|
|
Features
The Mark-10 EG force gauge is an ideal solution for compression and tension applications requiring accuracy and flexibility in the entire 0.12 lb to 500 lb range. Features include selectable units of measurement, automatic peak memory, simple pushbutton calibration, programmable automatic shutoff, initial status of units and mode of operation, permanent configuration memory, and optional outputs (RS-232, Mitutoyo, and analog). Reversible aluminum housing allows for hand-held use or test stand mounting.
Features:
- Compatible with all Mark 10 test stands and grips
- Selectable units of measurement
- Programmable default configuration
- Peak memory for tensile and compressive forces
- Push-button calibration
- Battery or AC operation
- Programmable automatic shutoff
- Permanent configuration memory
- Optional RS-232, Mitutoyo and analog outputs
- Reversible aluminum housing for handheld use or test stand mounting (see below)
- Same housing size for all capacities
Specifications:
- Accuracy: ± 0.3% of full scale ±1 digit
- Sampling rate: 30 readings/sec
- Safe overload: 150% of capacity
- Battery life: 8-10 hours per charge
- Weight: 0.9 lbs (0.4 kg)
- Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
- Warranty: 3 years
Mark-10 EG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, hook, flat, users manual, and NIST-traceable certificate of calibration.
The Mark 10 EG force gauge is compatible with all Mark-10 force measurement test stands. It is shown here in a compression testing application, mounted to an ES30 test stand with optional items: digital travel display and extension rod.
Reversible Housing - A Mark-10 Exclusive
All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Mark-10 BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.
Optional Equipment:
- A wide range of test stands and gripping fixtures
- Outputs package - RS-232, Mitutoyo, and analog outputs. Available at time of purchase or as an upgrade.
- Overload protection module - Protects the force gauge against overloads during motorized tests, adjustable from 20 - 110% of gauges full capacity. For use with Mark-10 motorized test stands.
- Output cable - Send test data to a PC, statistical printer, or other data collector for further analysis.
Model |
Capacity x resolution |
Price |
EG012 |
0.12 x 0.0001 lb, 50 x 0.05 gF, 0.5 x 0.0005 N, 110V |
$755 |
EG025 |
0.25 x 0.0002 lb, 100 x 0.1 gF, 1 x 0.001 N, 110V |
$755 |
EG05 |
0.5 x 0.0005 lb, 250 x 0.2 gF, 2.5 x 0.002 N, 110V |
$755 |
EG2 |
2 x 0.002 lb, 1 x 0.001 kgF, 10 x 0.01 N, 110V |
$660 |
EG5 |
5 x 0.005 lb, 2.5 x 0.002 kgF, 25 x 0.02 N, 110V |
$660 |
EG10 |
10 x 0.01 lb, 5 x 0.005 kgF, 50 x 0.05 N, 110V |
$660 |
EG20 |
20 x 0.02 lb, 10 x 0.01 kgF, 100 x 0.1 N, 110V |
$660 |
EG50 |
50 x 0.05 lb, 25 x 0.02 kgF, 250 x 0.2 N, 110V |
$660 |
EG100 |
100 x 0.1 lb, 50 x 0.05 kgF, 500 x 0.5 N, 110V |
$660 |
EG200 |
200 x 0.2 lb, 100 x 0.1 kgF, 1000 x 1 N, 110V |
$755 |
EG500 |
500 x 0.5 lb, 250 x 0.2 kgF, 2500 x 2 N, 110V |
$755 |
Optional Equipment |
EGRS |
Output option for EG (RS232, Mitutoyo, Analog) |
142 |
09-1047 |
Cable, EG/EG/EG/EGI to Mitutoyo SPC (requires EGRS) |
$71 |
09-1048 |
Cable, EG/EG/EG/EGI to RS-232, 25-pin (requires EGRS) |
$71 |
09-1048A |
Cable, EG/EG/EG/EGI to RS-232, 9-pin (requires EGRS) |
$71 |
09-1090 |
Cable, set point, EG/EGI/EG to test stand |
$137 |
11-1042 |
Overload protection module, EG/EG/EG/EGI to test stand |
$185 |
Weight:
10.00 lb
|
|
| |
|
* within the 48 continental US States
|
Optional Accessories
more info
|
Mark-10 09-1047 Mitutoyo Cable
Cable, BG/CG/EG/BGI to Mitutoyo SPC
|
|
more info
|
Mark-10 09-1048A RS-232, 9-pin Cable
Cable, BG/CG/EG/BGI to RS-232, 9-pin
|
|
more info
|
Mark-10 G1028 Hook, 20 lb
These hooks are ideal for a variety of tensile tests. Use them with a force gauge and a test stand to create a complete testing system.
Model |
Capacity (lb / N) |
Weight (lb / kg) |
RA |
|
|
D |
G1028 |
20 / 100 |
0.01 / 0.005 |
0.05 / 1.3 |
1.0 / 25.4 |
0.1 / 2.5 |
#10-32F |
G1038 |
200 / 1000 |
0.02 / 0.009 |
0.2 / 5.1 |
1.5 / 38.1 |
0.19 / 4.8 |
#10-32M |
G1035 |
500 / 2500 |
0.5 / 0.023 |
0.3 / 7.6 |
1.9 / 48.3 |
0.28 / 7.1 |
5/16-18M |
G1042 |
1000 / 4500 |
0.32 / 0.145 |
0.5 / 12.7 |
4.1 / 104.1 |
0.45 / 11.4 |
1/2-20M |
|
|
more info
|
Mark-10 G1029 Flat Head, 200 lb
These attachments are ideal for compression testing of buttons, membrane switches, etc. Use them with a force gauge and a test stand to create a complete testing system.
Model |
Capacity (lb / N) |
Weight (lb / kg) |
A |
B |
C |
G1029 |
200 / 1000 |
0.01 / 0.005 |
0.5 / 12.7 |
0.5 / 12.7 |
#10-32F |
G1036 |
500 / 2500N |
0.06 / 0.027 |
0.75 / 19.1 |
0.87 / 22.1 |
5/16-18F |
|
|
more info
|
Mark-10 15-1004 MESURGauge Data Collection Software
We are pleased to introduce Mark-10 MESURgauge software, a measuring and analysis program designed to expand the functionality of Mark-10 force and torque measuring instruments.
- Ability to display both load and travel data
The ability of MESURgauge to display load and travel data sets it apart from other basic force measurement programs. If the customer wishes to plot a graph of load vs. travel, common for such applications as tensile testing and spring testing, MESURgauge is a compelling alternative to more expensive and complex material testing programs.
- Compatibility with competitors gauges
Any force or torque gauge with RS-232 data output is compatible with Mark-10 MESURgauge software. Simply enter in the appropriate communication protocols of the gauge into the program.
- Simulated data makes evaluation a breeze
Built-in simulated data allows the customer to evaluate the program with data which can be graphed, analyzed, and manipulated just like real test data. A gauge and cable are not necessary.
Mark-10 MESURgauge is a measuring and analysis program designed to expand the functionality of force and torque measuring instruments. Mark-10 MESURgauge Software captures readings from any force or torque gauge with RS-232 output and displays data in tabular and graphical formats. Load data can be graphed versus time or distance, particularly useful for such applications as spring testing and tensile testing.
Mark-10 MESURgauge Software includes a set of tools to analyze test results, including statistical calculations, quick data export to Microsoft Excel, customizable reports, pass/fail indicators, and many others. Test setups and sequences are customizable and can be saved and recalled. The user can program test start and stop conditions, including load, time, distance, and sample break.
Additional features in Mark-10 MESURgauge Software include a large display screen for real time load and travel data and a utility to configure Mark-10 gauges from a PC. Built-in simulated data generation allows Mark-10 MESURgauge Software to be evaluated without a gauge.
Additional Features:
- Inputs data from a force or torque gauge and travel display to a PC for further analysis
- Real time tabular and graphical data displaying load vs. time or load vs. distance
- Configurable start and stop test triggers (time, load, number of samples, or distance)
- Statistical calculations (minimum, maximum, average, area under curve)
- Graph manipulation tools, including zooming, scaling, panning, titles, and more
- One-button export to Excel
- Create customizable reports and report templates
- Compatible with all Mark-10 and other force and torque measuring instruments
- Save and recall test setups and test data
- Configure Mark-10 instruments easily through a simple interface
- View real time data on a large simulated instrument display
Computer Requirements
- Windows 2000 or later operating system
- At least 150 MB of free hard disk space
- Minimum display resolution of 1024 x 768
|
|
more info
|
Mark 10 RSU100 Communication adapter, RS-232 to USB
The RSU100 is a communication adapter used to convert RS-232 data
from a Mark-10 device to USB format for PC use.: : :
INCLUDED ITEMS:
1 RSU100 Communication Adapter:
1 USB cable, 6’:
1 Installation CD:
1 User’s guide : : :
User’s guide : :
|
|
|
|
|
|
|
