Mark-10 BG20 Force Gauge, 20 x 0.01 lb |
|
| ±0.2% accuracy. RS-232, Mitutoyo and analog outputs with automatic timed output on RS-232. Dual setpoints with outputs, programmable analog and digital filters. Reversible aluminum housing for hand held use or stand mounting. Full computer control more ... |
|
Test Equipment >
Force Gauges >
Digital Force Gauges
|
|
|
|
|
|
Features

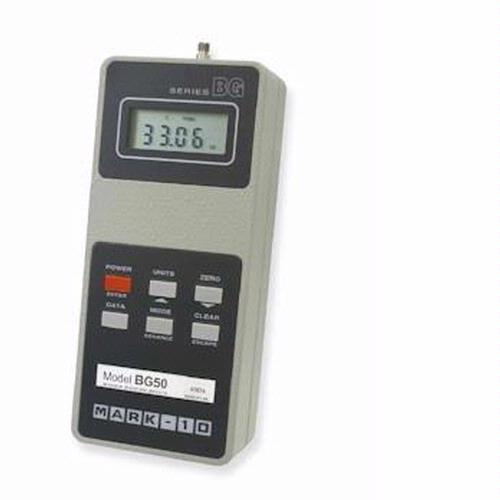

The Mark 10 BG Digital Force Gauge is an advanced force measurement solution with sophisticated measurement capabilities, data outputs, computer control capabilities, and a long list of features and configurable settings. The BG can stop motorized test stand travel at user-selectable set points, and can also prevent force overload (when used with the ESM motorized test stand). Go / no go testing can also be accomplished with an optional plug-in hi / lo limits indicator.
Features:
- Compatible with all Mark 10 test stands and grips
- RS-232, Mitutoyo and analog outputs
- GCL-Gauge Control Language for full computer control
- Automatic timed output on RS-232
- Dual set points with outputs
- Averaging mode for average readings over time
- External trigger for contact or switch testing and data capture
- General purpose I/O for external device control
- Programmable analog and digital filters
- Selectable units of measurement
- Programmable default configuration
- Peak memory for tensile and compressive forces
- Push-button calibration
- Battery or AC operation
- Programmable automatic shutoff
- Reversible aluminum housing for handheld use or test stand mounting (see below)
- Same housing size for all capacities
Specifications
- Accuracy: ± 0.2% of full scale ±1 digit
- Sampling rate: 65 readings/sec
- Display rate: 25-10/sec, 65/sec in peak mode
- Display: 4-1/2 digit, 0.3 inch (7.6 mm) high LCD
- Indicators for low battery , units and mode of operation
- Power: AC or rechargeable battery with IPM, a 3-step Intelligent Power Management system that warns the user via LO BAT indicator and then will shut off the gauge
- RS-232 - Fully configurable up to 9600 baud. Includes GCL (Gauge Control Language)
- Mitutoyo output - Serial BCD suitable for all Mitutoyo SPC-compatible devices
- Analog output - +/-VDC +/-0.25% of full scale at capacity. Positive for compression, negative for tension
- Set point outuputs: 3 open collector lines (utilizing Mitutoyo lines)
- General purpose I/O: 3 open collector outputs and one input (utilizing Mitutoyo lines)
- Sensor detection: 0.010 (0.25 mm) maximum deflection at full load
- Safe overload: 150% of capacity - display shows == at 110% and above
- Battery life: 8-10 hours per charge
- Weight - Gauge only: 0.9 lbs (0.4 kg)
- Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
- Warranty: 3 years
The Mark 10 BG digital force gauge is compatible with all Mark-10 force measurement test stands. It is shown here in a tensile testing application, mounted to an ESM motorized test stand with optional items: digital travel display, limit switches, and wedge grips. Mark-10 BG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, chisel, cone, v-groove, hook, flat, extension rod, users manual, and NIST-traceable certificate of calibration
Reversible Housing - A Mark-10 Exclusive
All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Mark-10 BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.
| Model |
Capacity x resolution |
Price |
| BG012 |
0.12 x 0.00005 lb, 50 x 0.02 gF, 0.5 x 0.0002 N, 110V |
$1087 |
| BG025 |
0.25 x 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N, 110V |
$1087 |
| BG05 |
0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N, 110V |
$1087 |
| BG2 |
2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N, 110V |
$945 |
| BG5 |
5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N, 110V |
$945 |
| BG10 |
10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N, 110V |
$945 |
| BG20 |
20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N, 110V |
$945 |
| BG50 |
50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N, 110V |
$945 |
| BG100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N, 110V |
$945 |
| BG200 |
200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N, 110V |
$1087 |
| BG500 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N, 110V |
$1087 |
| Optional Equipment |
| 09-1047 |
Cable, BG/CG/EG/BGI to Mitutoyo SPC |
$71 |
| 09-1048 |
Cable, BG/CG/EG/BGI to RS-232, 25-pin |
$71 |
| 09-1048A |
Cable, BG/CG/EG/BGI to RS-232, 9-pin |
$71 |
| 09-1090 |
Cable, set point, BG/BGI/CG to test stand |
$137 |
| 11-1022 |
Hi / Lo limits indicator for BG/BGI/CG |
$85 |
| 11-1042 |
Overload protection module, BG/CG/EG/BGI to test stand |
$185 |
Weight:
10.00 lb
|
|
|
| |
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Inscale 46-5-S Stainless Steel Floor Scale, 4 x 6, 5000 x 1 lb
This heavy duty type 304 Inscale Stainless Steel Floor Scale withstands the widest variety of hostile chemical and washdown environments. Stainless steel hardware and a stainless steel junction box are standard. NTEP approved Legal for Trade
- Comes with a NEMA 4X stainless steel indicator
- 15 foot cable included
- Factory pre-calibrated
- Installs in 15 minutes or less - simply plug in and weigh!
- 3 year warranty
Included Inscale TI-600 indicator:
- NEMA 4x stainless steel enclosure.
- NTEP approved for 5000 divisions.
- Keyboard tare entry.
- Full duplex RS-232 serial port.
- Gross, net, tare, print, ticket mode.
- Full font panel configuration.
- Stainless steel swivel stand
| Model Number |
Capacity
x Graduation
(lbs) |
Platform
Size
(ft) |
Shipping Weight
(lbs) |
Ramp Model Number |
| 22-5-S |
5000 x 1 |
2 x 2 |
80 |
22-10R-S |
| 22-10-S |
10000 x 2 |
2 x 2 |
80 |
22-10R-S |
| 33-5-S |
5000 x 1 |
3 x 3 |
200 |
33-10R-S |
| 33-10-S |
10000 x 2 |
3 x 3 |
200 |
33-10R-S |
| 44-5-S |
5000 x 1 |
4 x 4 |
295 |
43-10R-S |
| 44-10-S |
10000 x 2 |
4 x 4 |
295 |
43-10R-S |
| 45-5-S |
5000 x 1 |
4 x 5 |
380 |
44-10R-S |
| 45-10-S |
10000 x 2 |
4 x 5 |
380 |
44-10R-S |
| 46-5-S |
5000 x 1 |
4 x 6 |
430 |
44-10R-S |
| 46-10-S |
10000 x 2 |
4 x 6 |
430 |
44-10R-S |
| 55-5-S |
5000 x 1 |
5 x 5 |
455 |
53-10R-S |
| 55-10-S |
10000 x 2 |
5 x 5 |
455 |
53-10R-S |
| 57-5-S |
5000 x 1 |
5 x 7 |
690 |
54-10R-S |
| 57-10-S |
10000 x 2 |
5 x 7 |
690 |
54-10R-S |
|
|
