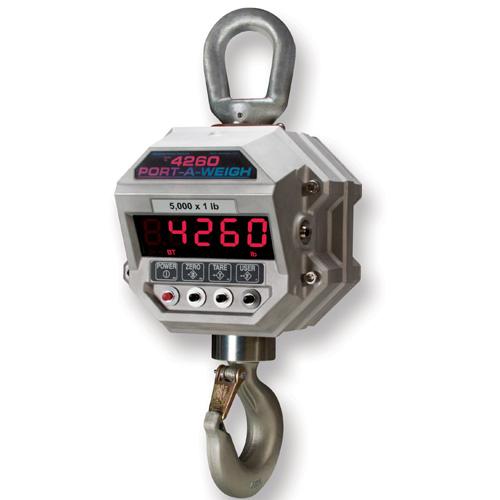

MSI 503413-0004 Port-A-Weigh MSI-4260 Legal for Trade 10,000 x 2.0 lb
Introduced in 1980, the MSI-4260 Port-A-Weigh established the original industry standard for accurate, reliable, and safe overhead crane weighing. After three decades of production, added advancements, and thousands of worldwide installations, the next generation more ...
Industry’s original standard for accurate, reliable and safe overhead weighing.
Introduced in 1980, the MSI-4260 Port-A-Weigh established the original industry standard for accurate, reliable, and safe overhead crane weighing. After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with “ScaleCore” technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions
Options and Accessories
Heat shield for hot-metal and high temperature applications (contact factory for operating specifications)
Substitute shackle for bottom swivel hook (for possible headroom loss reduction)
Oversized top lifting eye or shackle (for oversized crane hook interface)
Factory Mutual Approved (intrinsically safe for use in hazardous environments): Class I, II, III; DIV. 1, Group C, D, E, F, & G; DIV. 2, Group A, B, C, D, & G (Pending)
802.11 b/g wireless module
Retrofit Kit: Upgrade previous MSI-4260 to new generation MSI-4260 with ScaleCore
NEMA 4, IP66 marine grade 356 alloy anodized cast aluminum
Lifting Eye, Shackle & Hook
Crosby ® or equal with 360° thrust-bearing swivel hook
200% Safe / 500% Ultimate (except as noted)
Power: Turns Unit ON or OFF Zero: Zeros applied load up to 100% of capacity (limited range in NTEP/OIML configurations) Tare: Tares applied load and displays weight in Net mode F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD
Five- digit, 1.2 in (30 mm) LED with programmable brightness control
The MSI-8000 RF Remote Display: Wireless Control Made Easy
The MSI-8000 is a wireless remote display for viewing and control of any RF compatible MSI-3460 Challenger 3 or MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices
Compact and portable, the MSI-8000’s heavy-duty NEMA 4/IP65 industrial-grade enclosure makes it ideal for use in nearly any operating environment. The MSI-8000 features a large five-digit 1.25 inch (31 mm) LCD display for improved visibility, and a user-friendly keypad for simple configuration and operation. Standard function keys include: Power, Zero, and Tare and three programmable keys for functions like Peak Hold, Totalizing, Unit Select, Print and Setpoints.
The MSI-8000 operates on a license-free 2.4 GHz frequency with a typical application range exceeding 100 feet (33 m). Power is supplied by an internal rechargeable lithium polymer battery, which provides up to 24 hours continuous use between charging. An integrated RS-232 data port allows the MSI-8000 to easily interface with peripheral devices such as printers, PCs and scoreboards
