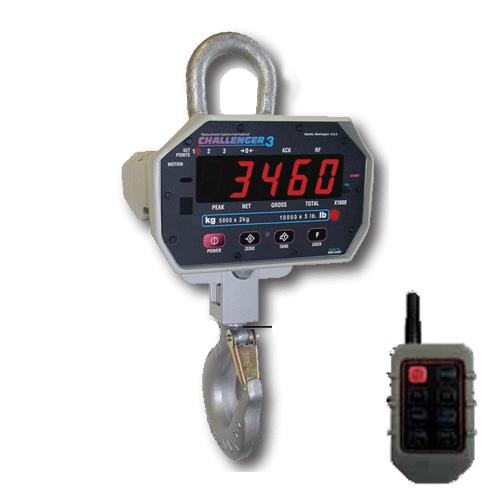

MSI 139107 MSI-3460 CHALLENGER 3 Crane Scale With RF Remote Controller Legal For Trade 1000 x 0.5 lb |
|
| The original signature Challenger packaging has been upgraded to NEMA 4 / IP65 levels. Manufactured in the USA in strict compliance with the highest Safety Standards, Challenger continues to sustain minimum 200% safe and 500% ultimate load ratings. more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
Industry’s standard crane scale for light to medium capacity applications The MSI-3460 “ScaleCore” measurement module features the industry leading weighing functions of previous Challenger designs plus much more. Long range viewing is enhanced with an ultra-bright LED digital display with 1.5 inch (38 mm) high digits with resolution settings of up to 10,000 divisions and precision 0.1% loading accuracy across an available capacity range of 250 to 15,000 lbs. Product operating time is extended to over 50 plus hours with a single 6-volt rechargeable battery.
The original signature Challenger packaging has been upgraded to NEMA 4 / IP65 levels. Manufactured in the USA in strict compliance with the highest Safety Standards, Challenger continues to sustain minimum 200% safe and 500% ultimate load ratings.
Available options include: RF remote control, MSI-8000 RF remote display and audible alarm. An electronics retrofit kit is available for customers who wish to upgrade their existing MSI-3260 or MSI-3360 Challengers to the new generation MSI-3460.
The MSI-3460 Crane Scale provides cost-effective light to medium capacity overhead weighing. For higher capacities, heavy duty, outdoor and continuous production use, MSI recommends MSI-4260, MSI-4300, MSI-6260CS or MSI-9300. Note: 15,000 lb (7,500 kg) unit comes standard with 12 ton top shackle.
MSI-3460 Options and Accessories
- RF Remote Controller (typical range 50 feet /15 m)
- Universal Direct Power Supply (115/230 VAC)
- Audible Setpoint Alarm
- Spare Battery and Battery Charger
- Enhanced Resolution
- NTEP Legal for Trade (up to 10,000 lb)
- RF Module for Connectivity with MSI-8000 RF Remote Display
- Optional MSI-8000 RF Remote Display
- Retrofit Kit: Upgrades Models MSI-3260 and MSI-3360 to a MSI-3460
The MSI-3460 now features the ScaleCore measurement
module providing industry leading weighing features of previous
Challenger designs plus much more. Long range viewing is enhanced
with a larger 1.5 inch (38 mm) ultra-bright LED digital display and
resolution settings of up to 10,000 divisions for precise 0.1% loading
accuracy over a broad capacity range from 250 to 15,000 lb. Product
operating time is extended to over 80 plus hours with a single
6-volt rechargeable battery.
The original signature Challenger packaging has been upgraded to NEMA 4 / IP65
levels. Manufactured in the USA in strict compliance with the highest safety standards,
Challenger continues to sustain minimum 200% safe and 500% ultimate overload ratings.
A ScaleCore electronics retrofit kit is available for upgrading existing MSI-3260
or MSI-3360 Challengers to new generation MSI-3460.
Dimensions
X:
28.70
Y:
9.00
Z:
14.00
Weight:
27.00 lb
|
1 Year Manufacture Warranty
|
Other MSI 3460 CHALLENGER 3 Crane Scales
| Image |
Name |
Price |
|
|
$1,980.00
|
|
|
$2,140.00
|
|
|
$2,110.50
|
|
|
$1,876.00
|
|
|
$2,290.50
|
|
|
$2,240.00
|
|
|
$2,060.00
|
|
|
$1,960.00
|
|
|
$2,389.50
|
|
|
|
$2,389.50
|
|
|
$2,488.50
|
|
|
$2,646.50
|
|
|
$2,384.00
|
|
|
$2,853.00
|
|
|
$4,305.50
|
|
|
$4,285.75
|
|
Specifications
| Standard Model |
139102 |
151563 |
139103 |
151564 |
139104 |
151569 |
139105 |
| 502887-0001 |
502887-0002 |
502887-0003 |
502887-0004 |
| With RF Remote Controller |
139106 |
151570 |
139107 |
151571 |
139108 |
151572 |
139109 |
| 502887-0005 |
502887-0006 |
502887-0007 |
502887-0008 |
| control for On/Off, Zero, Tare and other funtctions |
| With Modem Install for connectivity to Model MSI-8000 |
139110 |
151573 |
139111 |
151576 |
139112 |
151577 |
139113 |
| 502887-0009 |
502887-0010 |
502887-0011 |
502887-0012 |
| With Bluetooth and ScaleConnect App |
176905-250 |
176905-500 |
176906-1K |
176906-2K |
176907-5K |
176907-10K |
176908 |
| Bluetooth and WiFI Models will NOT work with any MSI Remote Displays |
| With WiFi and ScaleConnect App |
176909-250 |
176909-500 |
176910-1K |
176910-2K |
176911-5K |
176911-10K |
176912 |
| Bluetooth and WiFI Models will NOT work with any MSI Remote Displays |
| Specifications |
| Capacity x Readability |
250 x 0.1 lb |
500 x 0.2 lb |
1000 x 0.5 lb |
2000 x 1 lb |
5000 x 2 lb |
10000 x 5 lb |
15000 x 5 lb |
| 125 x 0.05 kg |
250 x 0.1 kg |
500 x 0.2 kg |
1000 x 0.5 kg |
2500 x 1 kg |
5000 x 2 kg |
7000 x 2 kg |
| Accuracy |
± (0.1% +1d) of applied load |
| Legal for Trade |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
NTEP CC 86-021A3 |
- |
| Display |
5 digit, 1.5 inch (38 mm) high LED; programmable brightness control |
| Filtering |
Off, Lo, Hi-1, Hi-2 selectable |
| Units |
Pounds or Kilograms selectable |
| Resolution |
2000-3750 divisions standard (Up to 10,000 d available) |
| Power |
6 Volt Rechargeable Battery (115/230 VAC Rapid Charge Battery Charger included) |
| Operating Time |
Up to 50 hours depending on programmed operating mode |
| Auto-Off Mode |
Select for 15, 30, 45, 60 minutes or Off |
| Auto Sleep Mode |
Power down during non-use and power up with weight change or any key press |
| Service Counter |
Maintains two counters. The first counts number of lifts for inspection reminders and the second counts overloads for safety warnings |
| Operating Temperature Range |
-4° to +122°F (-20° to +50°C) |
| Enclosure |
NEMA 4/IP65, powder coated alodined cast aluminum corrosion resistant |
| Hook |
Crosby 360° non-bearing swivel |
| Safe Overload |
200% of rated capacity |
| Ultimate Overload |
500% of rated capacity |
|
|
|
|
|
|
|
Optional Accessories
more info
|
MSI 140049 (C00502-0001) replacement Battery assembly six volt rechargeable for MSI-3460
MSI C00502-0001 replacement Battery assembly six volt rechargeable for MSI-3460 Crane Scales
|
|
more info
|
MSI 139153 (502956-0002) replacement Universal for Europe 230 VAC, 50/60 Hz battery charger
MSI 502956-0002 replacement Universal for Europe 230 VAC, 50/60 Hz battery charger
|
|
more info
|
MSI 503239-0001 Spare RF remote controller
MSI 503239-0001 Spare RF remote controller
|
|
more info
|
MSI 139152 (502956-0001) Battery Charger for MSI-3460 With North American Style Plug
MSI Battery Charger for MSI-3460 With North American Style Plug
|
|
more info
|
MSI 178004 4in LASERLIGHT2 RF Six-Digit Scoreboard with ScaleCore RF Kit and Tilt Mounting Bracket
Prominently display weight, numeric data and messages with the
LaserLight2 remote display. A super-bright LED display with non-glare
lens provides sharp seven-segment, six-digit characters that are easy to
read. Never lose visibility in dark conditions or experience wash-out in
direct sunlight. Simply power up a LaserLight2 remote display in your
application and the benefits are clearly visible.
A redesigned enclosure provides easy access to internal
components. The front panel swings open for
convenient setup and service, yet
is securely held in place.
The weather-tight, IP66
rated enclosure provides
superior protection for
worry-free daily use. The
external keypad makes
navigating configuration
options safe and easy
with up, down, left and
right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.
Available in four-inch or six-inch character sizes, LaserLight2 remote displays
include annunciators for gross, net, pounds, and kilograms. For added
convenience, time and date is also included.
Standard Features
- Six high-intensity red digits (double-row discrete LED)
- Auto Learn mode of communication protocol
- Hold displayed weight (demand input)
- Software selectable standstill mode for no updates while in motion
- Mirror (reverse image) feature, auto mode
- Durable weather-tight IP66 enclosure
- Adjustable daylight/night intensity
- Non-glare contrast filtered lens
- RS-232, 20 mA, and RS-485 communications
- Auto sensing 115/230 VAC power supply
- PEMs locations accomdate flange or VESA mounting brackets
- Polyethylene breather vent inhibits internal moisture buildup
- Red, green and arrow lights in Stop/Go model
| Display |
6-digit, 7-segment discrete oval precision optical
performance red LED lamps
Contrast enhanced optical filtering lens
1- or 2- place decimal or comma indication
4 annunciators for GR, NT, lb, kg
4-inch red, green ball/arrow in Stop/Go model |
| Maximum
Viewing Distance |
4-inch: 200 ft (60 m)
6-inch: 300 ft (100 m) |
| Input Interface |
RS-232, RS-485, 20 mA current loop
(active or passive, switch selectable) |
| Input Data Format |
Baud Rate: 1200, 2400, 4800, 9600 and 19,200
self-learning or software selectable |
| Character Format |
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits,
self-learning or software selectable |
| Update |
Continuous or out-of-motion only; software selectable |
| Power Consumption |
4-inch: 21 watt
6-inch: 27 watt |
| Time |
Software enable/disable, 12- or 24-hour format |
| Date |
Software enable/disable, US or ISO format |
| Rating/Material |
IP66 Weather tight, mild steel, black powder coated |
| Dimensions |
4-inch (L x H): 22.28 in x 9.8 in
6-inch (L x H): 30.63 in x 12.77 in
Stop/Go (L x H): 30.63 in x 12.77 in
(flanges add 3.16 inches in width) |
| Weight |
4-inch: 20 lb (9 kg)
6-inch and Stop/Go: 25 lb (11 kg) |
| Operating
Temperature Range |
-40°F to 120°F (-40°C to 49°C) |
| Warranty |
Two-year limited warranty |
|
|
more info
|
MSI 178006 6in LASERLIGHT2 RF Six-Digit Scoreboard with ScaleCore RF Kit and Tilt Mounting Bracket
Prominently display weight, numeric data and messages with the
LaserLight2 remote display. A super-bright LED display with non-glare
lens provides sharp seven-segment, six-digit characters that are easy to
read. Never lose visibility in dark conditions or experience wash-out in
direct sunlight. Simply power up a LaserLight2 remote display in your
application and the benefits are clearly visible.
A redesigned enclosure provides easy access to internal
components. The front panel swings open for
convenient setup and service, yet
is securely held in place.
The weather-tight, IP66
rated enclosure provides
superior protection for
worry-free daily use. The
external keypad makes
navigating configuration
options safe and easy
with up, down, left and
right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.
Available in four-inch or six-inch character sizes, LaserLight2 remote displays
include annunciators for gross, net, pounds, and kilograms. For added
convenience, time and date is also included.
Standard Features
- Six high-intensity red digits (double-row discrete LED)
- Auto Learn mode of communication protocol
- Hold displayed weight (demand input)
- Software selectable standstill mode for no updates while in motion
- Mirror (reverse image) feature, auto mode
- Durable weather-tight IP66 enclosure
- Adjustable daylight/night intensity
- Non-glare contrast filtered lens
- RS-232, 20 mA, and RS-485 communications
- Auto sensing 115/230 VAC power supply
- PEMs locations accomdate flange or VESA mounting brackets
- Polyethylene breather vent inhibits internal moisture buildup
- Red, green and arrow lights in Stop/Go model
| Display |
6-digit, 7-segment discrete oval precision optical
performance red LED lamps
Contrast enhanced optical filtering lens
1- or 2- place decimal or comma indication
4 annunciators for GR, NT, lb, kg
4-inch red, green ball/arrow in Stop/Go model |
| Maximum
Viewing Distance |
4-inch: 200 ft (60 m)
6-inch: 300 ft (100 m) |
| Input Interface |
RS-232, RS-485, 20 mA current loop
(active or passive, switch selectable) |
| Input Data Format |
Baud Rate: 1200, 2400, 4800, 9600 and 19,200
self-learning or software selectable |
| Character Format |
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits,
self-learning or software selectable |
| Update |
Continuous or out-of-motion only; software selectable |
| Power Consumption |
4-inch: 21 watt
6-inch: 27 watt |
| Time |
Software enable/disable, 12- or 24-hour format |
| Date |
Software enable/disable, US or ISO format |
| Rating/Material |
IP66 Weather tight, mild steel, black powder coated |
| Dimensions |
4-inch (L x H): 22.28 in x 9.8 in
6-inch (L x H): 30.63 in x 12.77 in
Stop/Go (L x H): 30.63 in x 12.77 in
(flanges add 3.16 inches in width) |
| Weight |
4-inch: 20 lb (9 kg)
6-inch and Stop/Go: 25 lb (11 kg) |
| Operating
Temperature Range |
-40°F to 120°F (-40°C to 49°C) |
| Warranty |
Two-year limited warranty |
|
|
|
|
|
|
|
|
|
)
)
