Hoto Instruments ELM-2000 Digital Surface Speed Meter |
|
| The ELM-2000 digital surface speed meter measures surface speed, rotational speed and distance. It features four measuring modes: Real time displays the current value, Maximum displays the highest value, Minimum displays the lowest value and Mean displays the average value taken during the test. more ... |
|
Test Equipment >
Specialty Testers >
Speed Meters
|
|
|
|
|
|
Features

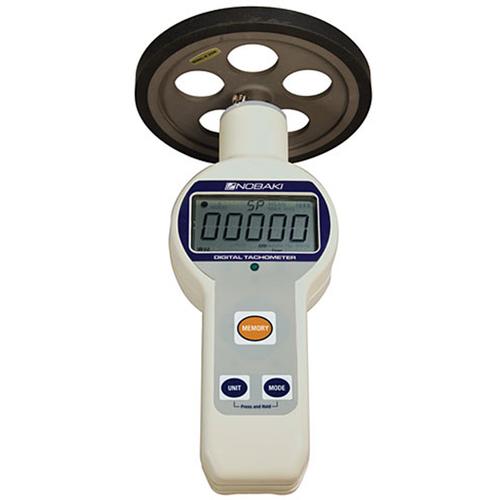

The ELM-2000 digital surface speed meter measures surface speed, rotational speed and distance. It features four measuring modes: Real time displays the current value, Maximum displays the highest value, Minimum displays the lowest value and Mean displays the average value taken during the test. It’s built with a ergonomic metal housing and operates on two standard AA batteries.
ELM-2000 Digital Surface Speed Meter Kit
The kit includes a 12" circumference wheel, cone and funnel adapters, two AA batteries and carrying case.
- Rugged metal housing
- Ergonomic design fits comfortably in your hand and lessens fatigue
- Four measuring modes: Real time, maximum, minimum and mean
- Up to 2,000 fpm using the 12" wheel
- 14 different measuring units:
- Speed: FPM, in/min, yd/min, m/min, cm/min, in/sec, cm/sec
- Rotation: RPM, rev/sec (without 12" wheel)
- Counter: ft, in, yd, m, cm
- Last reading recall and 99 data memory
- Auto statistics: Max, Min and Mean
- Easy-to-read 5 digit 0.47" (12 mm) high LCD
- Low battery indicator
- ELM-2000 kit includes 12" circumference wheel, cone and funnel adapters, two AA batteries and carrying case
Weight:
5.00 lb
|
|
|
|
Specifications
| Model |
Unit |
Speed Range |
Resolution |
Power |
| HSS-F |
ft/min |
1.0 ~ 400.0 |
0.1 |
110/220 VAC |
| HSS-IN |
inch/min |
12 ~ 4700 |
1 |
110/220 VAC |
| HSS-Y |
yard/min |
0.3 ~ 110.1 |
0.1 |
110/220 VAC |
| HSS-M |
m/min |
0.3 ~ 120.0 |
0.1 |
110/220 VAC |
| HSS-CM |
cm/min |
30 ~ 12000 |
1 |
110/220 VAC |
| HSSD-F |
ft/min |
1.0 ~ 400.0 |
0.1 |
24 VDC |
| HSSD-IN |
inch/min |
12 ~ 4700 |
1 |
24 VDC |
| HSSD-Y |
yard/min |
0.3 ~ 110.1 |
0.1 |
24 VDC |
| HSSD-M |
m/min |
0.3 ~ 120.0 |
0.1 |
24 VDC |
| HSSD-CM |
cm/min |
30 ~ 12000 |
1 |
24 VDC |
|
|
|
|
|
| |
|
|
Product support
Frequently asked questions
Helpful answers about this product.
What is the Hoto Instruments ELM2000 Digital Surface Speed Meter used for?
It is used to measure surface speed.
Is the ELM2000 a digital meter?
Yes, the ELM2000 is a digital surface speed meter.
What brand makes this surface speed meter?
This product is made by Hoto Instruments.
|
|
|
