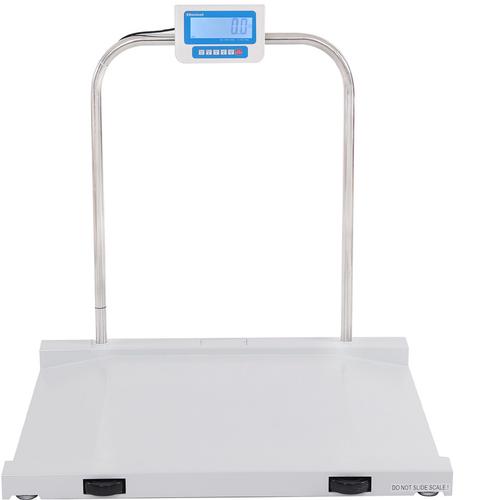

Brecknell MS1000-LCD Bariatric/Handrail Scale 1000 x 0.5 lb |
|
| This electronic Bariatric Handrail scale was designed for either walking on or being wheeled on to be weighed. The stainless steel handrail provides support for those that are unsteady on their feet. more ... |
|
Medical Equipment >
Medical Scales >
Wheelchair Scales
|
|
|
|
|
|
Features
MS1000-LCD Wheelchair Scale is ideal for any busy medical centers where the patients weight needs to be regularly taken and monitored.
This low profile, robust, easy-to-clean patient & wheelchair platform has been specially designed to remain low to the ground with a gradual 9% entry and exit ramp. Provides a safe and easy way to push patients in wheelchairs on and off the scale.
Also, fitted with a fixed stainless steel handrail to help support any unbalanced patient. The weight indicator is easily viewable by both patient and consultant.
This weight indicator comes with a large, easy-to-read LCD backlit display. Ideal for viewing in all lighting conditions.
- Accuracy: Within 0.1%
- Power: AC adapter (included) or six AA batteries (not included)
- Construction: Powder coated rugged steel with smooth top plate surface and two handles and wheels for relocating the scale. Built-in ramp ends to aid wheelchair access. ABS plastic indicator.
- Capacity: 1000 lb x 0.5 lb / 500 kg x 0.2 kg
- Display: Large, easy-to-read 6 digit 1.5" / 38 mm high digit LCD with backlight
- Operator Keys: On/Off/Zero, Tare, Unit, BMI, Print, Hold
SBI 210 Indicator Specififications
Capacity: 1000 lb x 0.5 lb / 500 kg x 0.2 kg
Construction: White robust ABS housing
Load Cells: Ideal for leveling the scale when used on an uneven floor. Four load cell platform with anti slip adjustable feet. Ideal for leveling the scale when used on an uneven floor.
Indicator Mounting: Comes standard with indicator mounting clamps for quickly attaching the indicator to the vertical or horizontal handrail
Units: lb, oz, lb/oz, kg
Display: Large, easy-to-read 6 digit 1.5" / 38 mm high digit LCD with backlight Function Keys: On/Off/Zero, Tare, Unit, BMI, Print, Hold
Scales Functionality: This scale is designed to be easy and simple to use. With basic key functions, from unit switching to hold to 100% tare for removing the weight of any wheelchair.
Calibration: Front panel calibration with up to three linear points if needed (scale comes already calibrated)
Power: Comes standard with an AC external 110V to 240V power adapter with interchangeable USA plug end (included) or six AA batteries (not included)
Battery Life: Approximately 24 hours with backlight or 37 hours with no backlight
Built-in Power Saving Features: Subject to how the scale is to be used, there are a number of ways to prolong the battery life of this scale. From turning off the backlight to setting the auto off to engage when the scale is not in use.
Communication: One RS-232 full duplex (9 way D type) One USA -VCP (USB type A). USB VCP driver can be downloaded from the Downloads section of the website.
Calibration: Front panel calibration Indicator Packing: Comes packed within the base packing box
Operating Temperature: 41º F to 95º F / 5º C to 35º C
|
|
Specifications
| Model |
MS1000-LCD
810036380263 |
| Capacity x Readability |
1000 lb x 0.5 lb
500 kg x 0.2 kg |
| Accuracy |
Within 0.1% |
| Power |
AC adapter (included) or six AA batteries (not included) |
| Battery Life |
Approximately 24-37 hours |
| Units: |
lb, oz, lb/oz, kg |
| Display |
Large, easy-to-read 6 digit 1.5" / 38 mm high digit LCD with backlight |
| Communication |
One RS-232 full duplex (9 way D type) One USA -VCP (USB type A). |
| Construction |
Mild steel |

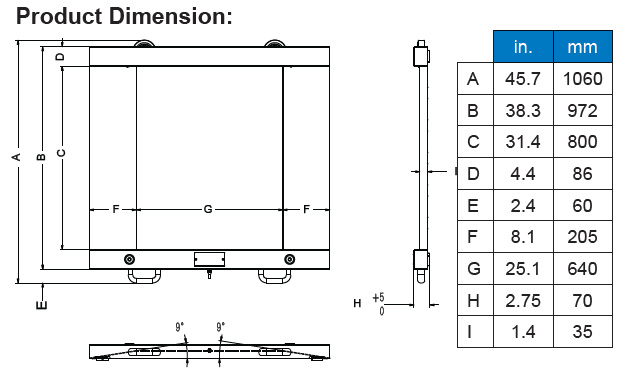

| Guard Rail Dimension |
33.85 inch x 27.6 inch
860 mm x 700 mm |
| Packaging Dimension |
47.6" x 47.25" x 6.9"
1210 mm x 1200 mm x 175 mm |
| Packaging Contents |
MS1000-LCD platform, guard/ handrail, indicator, power supply with US plug and indicator mounting brackets |
| Shipping Weight |
110 lb / 50 kg |
|
|
|
|
|
| |
|
|
|
|
|
