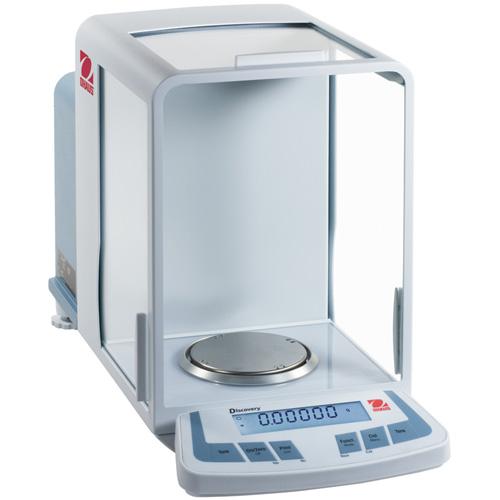

Ohaus DV-214C Discovery Analytical Balance, 210 g x 0.1 mg
Ohaus Discovery analytical balances with SmarText software. Highest performance on any analytical balance - 2X the repeatability and linearity performance of other lab scales in its class. Capacities from 81 to 310 grams with 0.01 or 0.1 milligram readabi more ...
The Ohaus Discovery is the professionals choice for analytical weighing applications!
The NEW Ohaus Discovery series of semi-micro and analytical balances combine unmatched weighing performance with Ohaus SmarText software, making it extremely reliable and easy to use. The Ohaus Discovery lab scale features durable glass and steel construction and together with advanced AutoCal internal calibration make it the best performing balance in its class:
Highest Performance with repeatability and linearity performance thats 2X better than most balances in its class
SmarText Software utilizes text prompts to guide users through application use and balance setup
Advanced AutoCal automatic internal calibrationensures accurate weighing
The Ohaus Discovery series features four analytical models with capacities up to 310 grams by 0.1 mg with a FineRange model that offers 10 microgram readability. The Ohaus Discovery analytical balance is perfect for university research, pharmaceutical research and drug discovery, and general laboratory weighing applications.
The Ohaus Discoverys repeatability and linearity performance is 2X better than most semi-micro balances in its class. Glass and steel construction resists the effects of static and corrosion increasing balance stability and accuracy, as well as extending product life.
SmarText is Ohaus easy to use balance software that utilizes text prompts to guide users through application use and balance setup. Delivered through a 2-line backlit LCD and clearly marked buttons, SmarText tells you what is going on and what you have to do next.
Utilizing the 2-line LCD, SmarText simultaneously displays weight and application-specific information such as percent or count. At the touch of the Function button, SmarText will display application reference information such as the average piece weight (APW).
Advanced AutoCal To minimize weighing errors and ensure accurate measurements, AutoCal utilizes two internal weights to perform a linear calibration. AutoCal internal calibration system automatically calibrates the balance when it senses a temperature change significant enough to affect the weighing accuracy.
81* / 210
Repeatability (Std. dev.) (mg)
milligram, gram, carat, ounce, troy ounce, grain, pennyweight, momme, Hong Kong tael, Singapore tael, Taiwan tael, custom
weighing, parts counting with automatic sample recalibration, percent weighing, checkweighing, animal/dynamic weighing, gross/net/tare weighing, totalization, high point, density, statistics, pipette calibration
selectable environmental filters, RS232 interface with full GLP/GMP protocol, easy to clean stainless steel platform, wind ring and glass & steel construction, protective in-use cover, integral weigh below hook, easy to use keypad, up-front level indicator
External adapter, 100-120VAC 150mA, 220-240VAC 100mA, 50/60 Hz plug configuration for US, Euro, UK, Japan & Australian
2-line alphanumeric backlit LCD display 4 x 1 inch / 10 x 2.5 mm
Pan Size (diameter)
3.5" (9 cm)
Free height above pan
9.5" (24 cm)
Dimensions (W x H x D)
7.9" x 11.8" x 18" (20 x 30 x 45.7 cm)
Statistics Statistics are used when it is desired to compare a number of samples and examine the relative deviation of the samples along with other statistical data. A minimum of three samples are required in this program. Statistics contains menu options which include: number of samples, maximum, minimum, difference, sum, mean, standard deviation, relative deviation, auto sample and auto print.
In addition to standard weighing, statistical data can be provided for Animal/Dynamic Weighing and Checkweighing measurements.
Density The Ohaus Discovery analytical balance provides users with four methods of density determination to choose from depending on their need. They are:
User can determine density for solids more dense than water
User can determine density for solids less dense than water
User can determine density for liquid density (sinker needed, not included)
User can determine density for porous material (impregnated with oil)
After entering a couple of parameters into the balance, the built in density table, and mass measurement of the balance take over to provide rapid and accurate density results, with no manual calculations needed.
Pipette Calibration Pipette calibration checks the accuracy and precision values of pipettes by weight analysis. The Ohuas Discovery DV215CD 0.01 mg semi-micro balance is recommended for maximum accuracy. To calibrate a pipette, the user will select the type of liquid to be used in the pipette (normally water), barometric pressure, nominal value, and unit of measure of the pipette. The balance will do the rest. The Ohuas Discovery will accept an alternate liuids density in g/cc at current room temperature as well.
Percent Weighing This mode allows the user to display the weight of a sample as a percentage of a reference weight useful in sieving applications, reagent weighing, moisture determination and other types of ingredient mixing.
Parts Counting Parts counting mode is useful when counting pills, or parts that have a consistent, but low nominal mass. This mode allows the user to count based on a calculated piece weight. The optimization feature improves counting accuracy by automatically re-calculating the piece weight as parts are added.
Check Weighing This mode allows the user to check the weight of a sample against preset target parameters such as underweight and overweight.
Animal/Dynamic Weighing Dynamic weighing can be used when eigher a rough environment is encountered such as on a ship, or when in a location that may not have ideal conditions. In addition, this mode allows the user to weigh moving objects such as animals, insects or other moving specimens. Dynamic weighing averages out weight readings over a period of time and displays the results until cleared.
Totalization This mode allows the user to sum a series of sample weights that can be greater than the capacity of the balance. Totalization is helpful when adding the masses of several samples together without the need for a calculator.
High Point High point can be used when analyzing batches or lots, or for quality checking of random samples. When in High Point mode, the balance will save only the highest weight value from a series of weighings.
Multiple Weighing Units The Ohaus Discovery analytical balance features multiple weighing units including a user-defined custom unit for use in unique weighing applications.
Environmental Settings When working in harsh environments, users can adjust Discoverys environmental settings to compensate for vibrations and other disturbances.
Connectivity Discovery comes with an included RS232 interface and provides full GLP/GMP data output
Up-Front Level Indicator Discovery has been designed with an up-front level indicator eliminating the need to look behind the balance during the leveling process. A quick glance at the up-front level indicator helps to ensure that the balance is level prior to each use.
Easy to View Display Discovery features a 2-line alphanumeric LCD display with a brilliant backlight.
Easy to Clean Discoverys stainless steel platform and removable wind ring make it extremely easy to clean.
Weigh Below Hook Discoverys integral weigh below hook allows density determination or calculating the specific gravity of samples.
Ohaus SF-42 Impact Printer
Ohaus is introduces its newest compact impact printer, the SF42. Coupled with an Ohaus balance featuring GLP functions such as the MB45, Explorer and Navigator, the SF42 is the economical choice for providing a fully documented audit trail. Audit trails required to meet today’s most stringent standards for quality and verification.
Quick and easy setup
Ink ribbon prevents fading
Self test mode assures proper functionality
Compatible with Ohaus balances equipped with RS232 interface
Interface: Serial (RS232 Compatible)
Printer Method: Impact Dot Matrix (Inked Ribbon)
Character Format: 5 x 7 Dot Matrix
Character Dimension: (in/cm) 0.04 x 0.10 / .11 x .26
Character Density: 42 Characters per line
Printing Speed: 40 lines per minute
Paper Width: (in/cm) 2.25/5.7
Power Adapter: AC adapter (110/120, 220/240 VAC) 50/60Hz
Power: 9 V dc, 600mA, (center pin positive)
Operating Temp. 32°to 104F°/0°C to 40°C
Dimensions (W x H x D) (in/cm): 4 x 3.7 x 7.3 / 10.4 x 9.6 x 18.6
Weight (lb/kg) 1.3 / 0.59 (without internal paper roll)
Printing Method - Thermal
Power - DC 7V ±1V (Printing), use exclusive adapter (DC 7V 1.6A) Thermal paper
Operating Temperature - 30 - 104° F / 0 - 40° C
Dimensions (W x D x H) - 4.17 x 7. x 3.5 in / 106 x 180 x 88 mm
Weight - 1lb / 470 g
Safety Standards - CE Marking/TUV - GS/FCC Class, B/VCCI Class B (AC adapter PSE/UL/C - UL/TUV - GS)
OHAUS Value in a Full-Featured, Portable Printer The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.

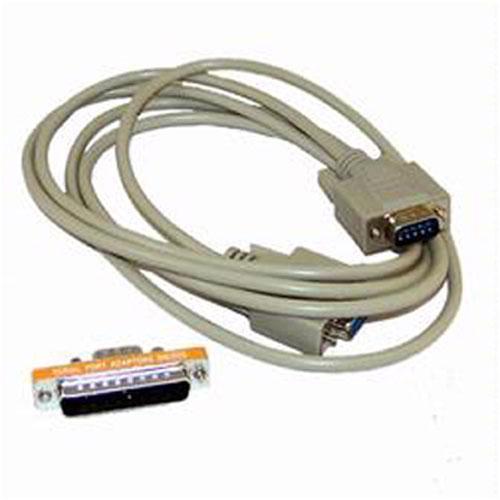

Standard RS-232 Cable for Ohaus Adventurer Pro, Ohaus Explorer Pro and Ohaus Voyager Pro Series balancesfrom the for 80252042 Dot Matrix Printer
RS232 Cable & Adapter (used with 80252042 Printer) for Ranger and Ranger Count, Pioneer, MB23, MB25, MB35, MB45, Adventurer Pro, Discovery, T31P, T51P and T71P
