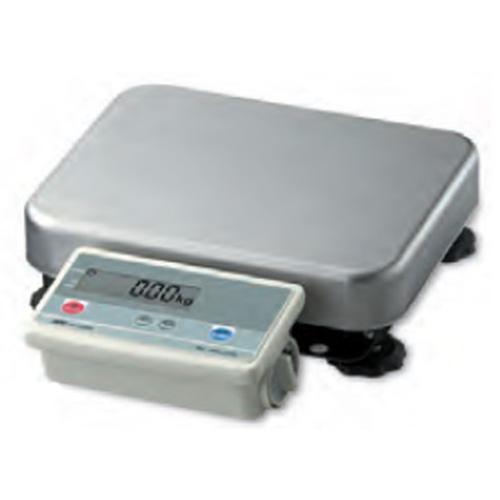

AND Weighing FG-60KBM Platform Scale, 150 x 0.01 lb, non-NTEP
Flexible internal software settings, AC or battery operation, stainless steel pan and moisture protected load cell, optional RS232, weighs in lbs/kgs. more ...
The new A&D Weighing FG-K Series industrial bench scales combines fast weighing response time with accurate measurement to suit any weighing application.
Three Weighing Fesolutions: Normal (1/3000), High (1/6000 for 30 kg & 60 kg weighing capacity) and higher resolution (1/12000 for 60 kg and 1/15000 for 30 kg and 150 kg weighing capacity).
Counting Function: Useful in piece counting applications with sample size of 5, 10, 20, 50 and 100 pieces for unit weight registration.
Comparator Function: HI / OK / LO comparator indication and optional relay output (FG-24) for checkweighing applications
Calibration Function: Simple calibration with external calibration weight
Auto Power Off function: Saves power consumption by automatically switching itself off when the scale displays zero for approximately 5 minutes
Low Power Supply Indication: Alerts user to check AC power supply "L1" or batteries "Lb0"
Filtering Function: Filtering levels of slow, normal and fast are selectable to suit environmental conditions
Leveling Feet and Bubble: Easy to adjust the level of the scale for accurate weighing
Optional RS-232C and Comparator Output: Easy to connect peripherals such as printer, comparator light and computer for weighing system applications.
AC or battery operation
Stainless steel weigh pan
Selection of lb / kg via push button
Full scale push button tare
Easy to operate anywhere
Rugged, heavy duty construction -- built to last
2 year manufacturers warranty
NTEP Approved, Class III Legal for Trade (non-NTEP high resolution models available, see below)
Model
FG-30KBM
FG-60KBM
FG-150KBM
FG-30KAM
FG-60KAM
FG-150KAM
FG-60KAL
FG-150KAL
FG-200KAL
Capacity X Readability
60 x 0.005 lb
150 x 0.01 lb
300 x 0.02 lb
60 x 0.005 lb
150 x 0.01 lb
300 x 0.02 lb
150 x 0.01 lb
300 x 0.02 lb
400 x 0.02 lb
30 x 0.002 kg
60 x 0.005 kg
150 x 0.01 kg
30 x 0.002 kg
60 x 0.005 kg
150 x 0.01 kg
60 x 0.005 kg
150 x 0.01 kg
200 x 0.01 kg
960 x 0.1 oz
2400 x 0.2 oz
4800 x 0.5 oz
960 x 0.1 oz
2400 x 0.2 oz
4800 x 0.5 oz
2400 x 0.2 oz
4800 x 0.5 oz
6400 x 0.5 oz
Legal for Trade
FG-30KBM-N
FG-60KBM-N
FG-150KBM-N
FG-30KAM-N
FG-60KAM-N
FG-150KAM-N
FG-60KAL-N
FG-150KAL-N
FG-200KAL-N
Capacity X Readability
60 x 0.02 lb
150 x 0.05 lb
300 x 0.1 lb
60 x 0.02 lb
150 x 0.05 lb
300 x 0.1 lb
150 x 0.05 lb
300 x 0.1 lb
400 x 0.1 lb
30 x 0.01 kg
60 x 0.02 kg
150 x 0.05 kg
30 x 0.01 kg
60 x 0.02 kg
150 x 0.05 kg
60 x 0.02 kg
150 x 0.05 kg
200 x 0.05 kg
960 x 0.5 oz
2400 x 1 oz
4800 x 2 oz
960 x 0.5 oz
2400 x 1 oz
4800 x 2 oz
2400 x 1 oz
4800 x 2 oz
6400 x 2 oz
No. of samples
5 (can be changed to 10, 20, 50 or 100 ) pieces
Max. counts
120,000 pcs
96,000 pcs
120,000 pcs
120,000 pcs
96,000 pcs
120,000 pcs
96,000 pcs
120,000 pcs
160,000 pcs
Min. unit weight
0.25 g
0.625 g
1.25 g
0.25 g
0.625 g
1.25 g
0.625 g
1.25 g
1.25 g
Repeatability (Std. deviation)
0.05 kg
0.01 kg
0.02 kg
0.05 kg
0.01 kg
0.02 kg
0.01 kg
0.02 kg
0.02 kg
Linearity error
0.01 kg
0.02 kg
0.05 kg
0.01 kg
0.02 kg
0.05 kg
0.02 kg
0.05 kg
0.05 kg
Sensitivity drift
20 ppm /C (10 °C~30 °C / 50 °F~86 °F)
Display
7 segment LCD display (Character height 26 mm)
Display update
10 times per second
Operating temp
—10 °C~40 °C / 14 °F~104 °F, less than 85% RH (no condensation)
Power supply
AC adapter or C size (R14P / LR14) x 4 batteries
Battery operating
Approximately 150 hours with alkaline dry cell battery
Weighing pan size
300 x 380 mm / 11.8 x 15.0 inches
390 x 530 mm / 15.4 x 20.9 inches
Dimension
380(W) x 464(D) x 118(H)mm
300(W) x 624(D) x 781(H)mm
390(W) x 771(D) x 781(H) mm
Weight
9.7 kg
11.2 kg
16.4 kg
Calibration weight (Factory setting)
30 kg / 60 lb
60 kg / 150 lb
150 kg / 300 lb
30 kg / 60 lb
60 kg / 150 lb
150 kg / 300 lb
60 kg / 150 lb
150 kg / 300 lb
200 kg/400 lb
Other AND Weighing Weighing FG-K Platform Scales -non-NTEP
AND Weighing KO:WW9-7 : RS-232C Cable D-Sub 9 pin more info Price: $59.95 In Stock
A&D part # KO:WW9/7 - RS-232C Cable to D-Sub 9 pin. Cable length 6 feet. Fits the following A&D models: FS, FG, HV, HV-G, HW-G, HV-WP, HW-WP, Ad-4326, AD-4327
Note - ANDs user manual might reference the serial RS232 cable part number AX-KO1786-200 for the FG bench scale as "FG to D-Sub 9 pin computer / RS-232C cable, 2m" but AND Weighing USA uses part number KO:WW9/7 instead of AX-KO1786-200
