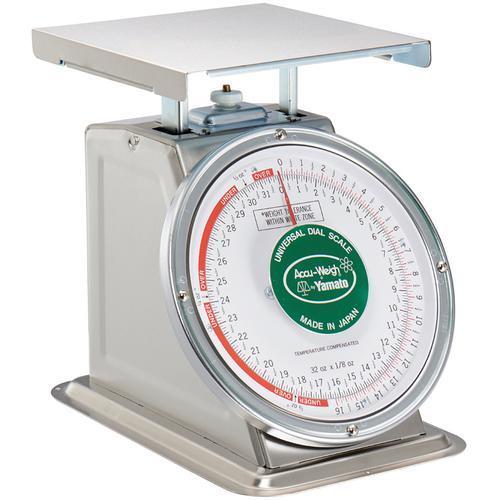

Yamato CW(N) 5/SS Top Loading Dial Portion Control Scale 8 inch Dial 5lb x 1/2oz |
|
| The Yamato CW(N) Series Portion Control Scales are tools used to measure the weight of things accurately. They're like high-tech kitchen scales, but they’re used in places like restaurants, factories, and packaging plants. more ... |
|
Scales >
Food Scales >
Mechanical Topladers
|
|
|
|
|
|
Features
The Yamato CW(N) Series Portion Control Scales are tools used to measure the weight of things accurately. Theyre like high-tech kitchen scales, but they’re used in places like restaurants, factories, and packaging plants.
These scales help businesses make sure they’re giving consistent amounts, which is crucial for quality control and customer satisfaction
- Designed for check weighing, general weighing, portion control, and batching
- NSF certified
- Available capacities: 1000 grams, 2 pounds, and 5 pounds
- Air dashpot included for faster readings
- Color-coded, rotating chart for setting portion weight and tolerance guide zones
- 30-degree tilted dial for easy reading
- Zero-setting mechanism and fine-point indicator for accuracy
- Removable stainless-steel platform for easy cleaning
- Available options: 4.2-quart stainless bowl, 2.5-quart stainless flat bowl, carrying handle
- Air dashpot included on all CW(N) models for faster weight reading
- Color-coded weight tolerance zones: 1/8, 1/4 and 1/2 ounce zones
- Easy-to-read 30 degre tilted dial
- Checkweighing, portion control, batch, and basic weighing
- Fine-point indicator for accuracy
- 3-year warranty
- Zero-setting mechanism
- Rotating dial chart
- Optional carrying handle
- Optional spider and
- bowl assembly
Dimensions
X:
17.00
Y:
15.00
Z:
11.00
Weight:
6.00 lb
|
|
Other Yamato CW(N) Series Portion Control Scales
|
Specifications
| Model |
Platform Size |
Dial |
Capacity x Readability |
CW(N) 1K/SS
YAM-1170-001030 |
7.5in x 7.5in |
8 inch |
1000g x 5g |
CW(N) 2/SS
YAM-1170-001010 |
7.5in x 7.5in |
8 inch |
2 lb x 1/8oz |
CW(N) 5/SS
YAM-1170-001020 |
7.5in x 7.5in |
8 inch |
5 lb x 1/2oz |
| Weighing System |
Temperature compensated spring mechanism |
| Platform |
7.5in x 7.5in (191mm x 191mm) stainless steel, removable |
| Operating Temperatures |
14°F ~ 104°F ( -10°C ~ 40°C) |
| Housing Material |
Stainless steel |
| Functions |
Basic weighing, checkweighing, portion control, batching |
| Options |
2.5qt (10in) stainless-steel fl at bowl and spider assembly
4.2qt (11in) stainless-steel bowl
2.5qt (10in) stainless-steel fl at bowl |
|
|
|
|
|
|
| |
|
|
|
|
