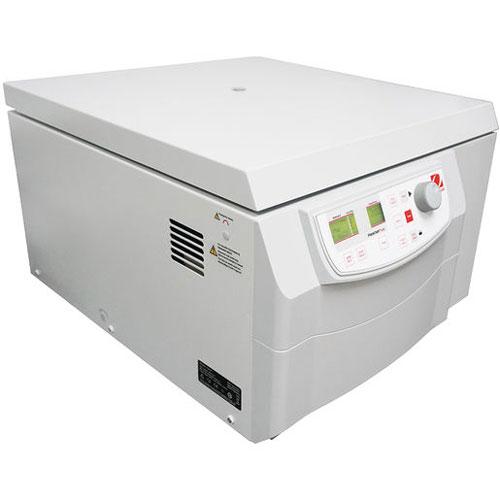

Ohaus FC5916 Frontier 5000 Multi Benchtop Centrifuge: 4 x 750 ml, 200 rpm ; 16,000 rpm (non-refrigerated) |
|
Frontier 5000 Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 7 models with capacities from 0.2 ml to 4 × 750 ml, they feature high-speed performance at maximum volume, automatic rotor identification, and safety features. more ... |
Laboratory Equipment >
Centrifuges >
Centrifuges
|
|
|
|
Features
Frontier 5000 Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 7 models with capacities from 0.2 ml to 4 × 750 ml, they feature high-speed performance at maximum volume, automatic rotor identification, and safety features.
APPLICATIONS: Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing
DISPLAY: Backlit Color Liquid Crystal Display (LCD)
OPERATION: Designed to be used with a variety of rotors and accessories
COMMUNICATION: N/A
CONSTRUCTION: Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid
DESIGN FEATURES: Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing
FEATURES
- Our multi-purpose centrifuges offer a high-speed centrifugation platform which can be customized to fit workflow needs using a wide variety of rotors and accessories.
- The intuitive design of the centrifuges and accessories enables easy access to parameter settings and quick rotation between applications. Features include automatic rotor recognition and backlit LCD.
- The performance of these centrifuges is propelled by German engineering and high quality components for reliable use. Constructed from chemical-resistant stainless steel to ensure durability in lab use.
Product Specifications
Speed Range |
200 rpm ; 16,000 rpm |
Maximum Relative Centrifuge Force (x g) |
24,325 g |
Maximum Capacity(Rotor) |
4 x 750 ml |
Program memories |
99 |
Rotor In Package |
N/A |
Acceleration Gear |
10 |
Deacceleration Gear D0 |
10 |
Dimensions |
26.4 in x 15.4 in x 21.3 in (670 mm x 390 mm x 540 mm) (LxHxW) |
Display |
2-line, backlit LCD |
Lid lock |
Motor driven |
Net Weight |
187 lb (85 kg) |
Noise Level |
<_63±2 dB(A) |
Power |
AC Adapter (Included) |
Power Consumption |
680 W |
Pre-cool time |
N/A |
Rotor Compatibility |
Angle 4 x 85ml RB ID Hi; Angle 12 x 15 ml RB/FA ID; Angle 6 x 250 ml FB ID; Angle 24 x 1.5 / 2.0 ml ID Sealable; Angle 6 x 50 ml RB ID Hi Swing out 4 x 100 ml ID; Angle 12 x 1.5 / 2.0 ml ID; Angle 4 x 8-w PCR Strip ID; Angle 44 x 1.5 / 2.0 ml ID; Swing out 4x750ml ID Sealable Swing out 4 x 100 ml ID Sealable; Angle 6 x 85 ml RB ID; Angle 24 x 1.5 / 2.0 ml ID; Rotor Angle 4x500ml ID; Angle 6 x 85 ml RB ID Hi Angle 30 x 15 ml RB/FA ID; Angle 30 x 1.5 / 2.0 ml ID Sealable; Angle 10 x 50 ml FA ID Angle 64 x 0.5 ml ID; Angle 20 x 10 ml RB ID Hi; Angle 6 x 50 ml RB/FA ID; Swing out 2 x 3MTP ID |
Rotor Recognition Method |
Auto |
Running Time |
Continous; Quickspin; 10 sec to 99 h 59 min 59 sec |
Safety Certification |
CE; FCC |
Working Environment |
36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
|
|
Other Ohaus Frontier 5000 Micro Centrifuges
|
Specifications
Model |
FC5714> 30314811 |
FC5718 30314813 |
FC5718R 30314815 |
FC5720R 83041046 |
FC5816 30314817 |
FC5816R 30314819 |
FC5830R 83041048 |
FC5916 30553037 |
FC5916R 30553103 |
Speed Range |
200 - 14,000 rpm 10 rpm/set |
200 - 18,000 rpm 10 rpm/set |
200 - 18,000 rpm 10 rpm/set |
200 - 20,000 rpm 10 rpm/set |
200 - 15,000 rpm 10 rpm/set |
200 - 16,000 rpm 10 rpm/set |
200 - 30,000 rpm 10 rpm/set |
200 - 16,000 rpm 10 rpm/set |
200 - 16,000 rpm 10 rpm/set |
RCF Range |
20 - 18,624 × g 10 × g/set |
20 - 23,542 x g 10 x g/set |
20 - 23,542 x g 10 x g/set |
20 - 38,007 x g 10 x g/set |
20 - 21,379 x g 10 x g/set |
20 - 24,325 x g 10 x g/set |
20 - 65,395 x g 10 x g/set |
20 - 24,325 x g 10 x g/set |
20 - 26,331 x g 10 x g/set |
Maximum Capacity |
Swing out rotor |
4 x 145 ml |
4 x 145 ml |
4 x 145 ml |
4 x 200 ml |
4 x 290 ml |
4 x 290 ml |
4 x 290 ml |
4 x 750 ml |
4 x 750 ml |
Angle rotor |
30 x 15 ml |
6 x 85 ml |
6 x 85 ml |
6 x 85 ml |
6 x 250 ml |
6 x 250 ml |
6 x 250 ml |
4 x 500 ml |
4 x 500 ml |
Temperature Range |
Air cooled |
Air cooled |
-20 - 40 oC |
-20 - 40 oC |
Air cooled |
-20 - 40 oC |
-20 - 40 oC |
Air cooled |
-20 - 40 oC |
Running Time |
Quick Spin, 10 sec to 99 hr 59 min 59 sec, or continuous |
Noise Level (depending on the rotor) |
< 63 + 2 dB(A) |
< 60 + 2 dB(A) |
< 60 + 2 dB(A) |
< 60 dB(A) |
< 61 + 2 dB(A) |
< 63 + 2 dB(A) |
< 60 dB(A) |
< 63 + 2 dB(A) |
< 63 + 2 dB(A) |
Number of Compatible Rotors |
10 |
19 |
19 |
17 |
12 |
12 |
13 |
13 |
13 |
Acc/Dec Levels |
10/10 |
Allowable Kinetic Energy |
5595 Nm |
16672 Nm |
25111 Nm |
24367 Nm |
34363 Nm |
34363 Nm |
30241 Nm |
60629 Nm |
60629 Nm |
Current Consumption |
1.3 A |
2.0 A |
3.0 A |
5.9 A |
2.4 A |
3.7 A |
7.2 A |
2.8 A |
7.2 A |
Voltage Consumption |
240 W |
455 W |
660 W |
1.2 kW |
530 W |
785 W |
1.6 kW |
640 W |
1630 W |
Voltage Fluctuation |
- 10 % |
Dimensions (W x D x H) |
362 x 493 x 330 mm |
408 x 499 x 351mm |
407 x 731 x 359 mm |
407 x 712 x 361 mm |
446 x 538 x 354 mm |
723 x 538 x 354 mm |
723 x 519 x 413 mm |
780 x 670 x 590 mm |
900 x 750 x 560 mm |
Net Weight (without rotor) |
30 kg |
43 kg |
60 kg |
71 kg |
52 kg |
77 kg |
91 kg |
85 kg |
118 kg |
Environment |
For indoor use only |
|
|
|
|
Optional Accessories
more info
|
Ohaus 30314821 Frontier Rotor, 6x250ml FB, ID
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.
Maximum Capacity (Rotor) |
6 x 250 ml |
Maximum Relative Centrifuge Force (x g) |
10,016 g |
Net Weight |
19.23 lb (8.72 kg) |
Maximum Speed |
8,000 rpm |
Outer/Inner Radius (numeric) |
14 mm |
Rotor Style |
Angel |
Aerosol tight |
Not applicable |
Maximum loading weight |
2,130 g |
Acceleration Time(sec) |
130 / 664 |
Angle |
28° |
Deceleration Time(sec) |
92 / 2,906 |
Dimensions (HxLxW) |
11.18 in (28.4 mm) |
Tube diameter without adapter |
62mm / 250ml |
Working Environment |
-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: <95%) |
Compatible Models |
FC5816;
FC5816R;
|
| | | |
