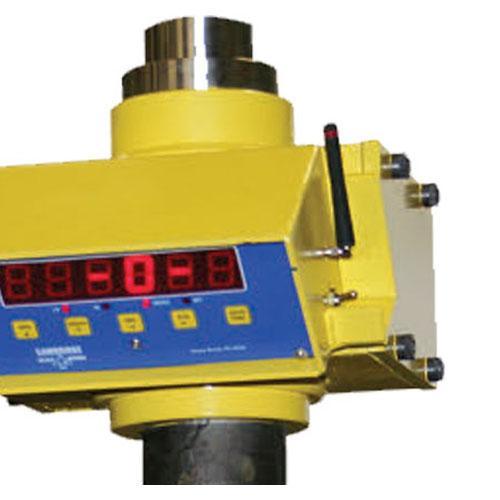

Cambridge ASCS-15AT-10K Heavy Duty Crane Scale 10000 x 2 lb |
|
| Cambridge ASCS-15AT 5,000 lb to 150,000 lb Capacities Heavy Duty All Steel Crane Scales with a Handheld Remote and Heat Plate Options 10000 x 2 lb more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
|
|
Features
Cambridge ASCS-15AT 5,000 lb to 150,000 lb Capacities Heavy Duty All Steel Crane Scales with a Handheld Remote and Heat Plate Options
Applications:
- Shipping/Receiving
- Work-In Process
- Hot Metal Applications
- Steel Service Center
- Anywhere an overhead crane is used and a weight reading is desired of the material(s) lifted.
Standard Features Include:
- Capacities: 5,000 lbs to 150,000 lbs.
- Accuracy: 0.1% of the applied load
- Overload Indication: 105% of the rated capacity
- Display: 1.5" High Visibility Red LED Display
- Power:12V Rechargeable Battery (Charger included)
- Operating Time:40 Hours Between Charges
- Enclosure: 1/4-Inch Steel Enclosure
- Safe Overload: 150% of Rated Capacity
- Ultimate Overload: 500% of Rated Capacity (Breaking Strength)
- Calibration: Digital
- Mating Hardware: Top Eye or Shackle & Bottom Hook
- Meter Function: On/Off, Zero, LB/KG, Gross/Net, Tare, Print
- Handheld Remote: Zero, LB/KG, Gross/Net,Tare, Print
Options:
- AC Power Supply –120VAC (We provide the connection - customer provides cabling)
- Headroom Loss Adapter - Provides minimum headroom loss
- Headroom Loss Adapter Nut Mated to Optional Headroom Loss Adapter
- Heat Protection Package for Foundry Applications
- Package A: 1/4" Heat Plate with Deflectors
- Package B: Insulated 1/4" Heat Plate with Deflectors
- Package C: Insulated 1/4" Heat Plate Surround
** All Heat Protection Packages Include Infrared Glass Lens**
- Crane Overload Warning System - Strobe Light & Audible Alarm
- Spare Battery Pack
- Custom Software and Hardware Devices to meet your application requirements.
- Outdoor Environmental Protection Package (AC Only).
|
|
Other Cambridge Scale ASCS-15AT Heavy Duty Crane Scales
| Image |
Name |
Price |
|
|
$4,050.00
|
|
|
$4,590.00
|
|
|
$5,940.00
|
|
|
$7,020.00
|
|
|
$6,210.00
|
|
|
$11,880.00
|
|
|
$15,210.00
|
|
|
$20,655.00
|
|
|
$24,795.00
|
|
|
$34,965.00
|
|
Specifications
| Model |
ASCS-15AT-5K
4910-1100-00 |
ASCS-15AT-10K
4910-1200-00 |
ASCS-15AT-20K
4910-1300-00 |
ASCS-15AT-30K
4910-1400-00 |
ASCS-15AT-50K
4910-1500-00 |
ASCS-15AT-60K
4910-1600-00 |
ASCS-15AT-70K
4910-1700-00 |
ASCS-15AT-80K
4910-1801-00 |
ASCS-15AT-100K
4910-1900-00 |
ASCS-15AT-150K
4910-2000-00 |
| Capacity x Readability |
5000 x 1 lb |
10000 x 2 lb |
20000 x 5 lb |
30000 x 10 lb |
50000 x 10 lb |
60000 x 20 lb |
70000 x 20 lb |
80000 x 20 lb |
100,000 x 50 lb |
150,000 x 100 lb |
| Shackle & Hook |
#8 Eye
5 Ton Hook |
#10 Eye
11Ton Hook |
#11 Eye
15Ton Hook |
35T Shackle
30T Hook |
35T Shackle
37T Hook |
55T Shackle
45T Hook |
55T Shackle
60T Hook |
85T Shackle
75T Hook |
| Standard Headroom Loss |
16 1/8" |
17 1/8" |
20 3/8" |
26 7/16" |
33 3/16" |
35 7/8" |
38 15/16" |
40 5/8" |
42 1/8" |
50 3/8" |
| Enclosure |
All Steel |
| Units |
Lb / Kg |
| Display |
1.5” High Visibility Red LED Display |
| Meter Function |
On/Off, Zero, LB/KG, Gross/Net, Tare, Print |
| Ultimate Overload |
500% of Rated Capacity (Breaking Strength) |
| Operating Time |
40 Hours Between Charges |
|
Made in USA |
| Approximate Ship Weight |
125 lb |
175 lb |
225 lb |
300 lb |
375 lb |
450 lb |
500 lb |
525 lb |
575 lb |
850 lb |
|
|
|
|
|
|
|
|
|
|
|
|
|
