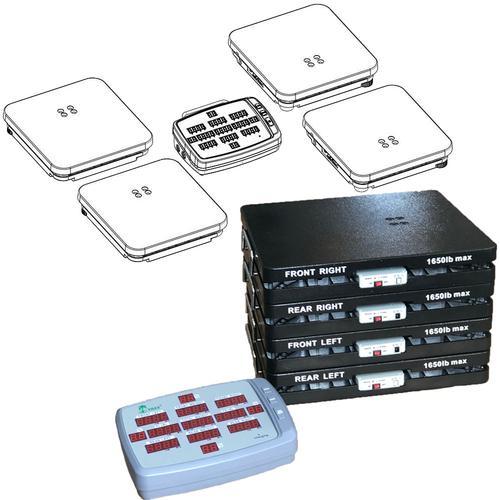

Tree MRC-6500 Wheel Weighing Scale 4 x Scale Pads 6500 x 1 lb |
|
| The Tree Race Car Scales are high-quality electronic precision weighing devices. The weighing scale consists of the following parts 1 x Digital indicator, 4 x Scale pads, 1 x power adapter and a Operation manual. more ... |
|
Wheel Weighing Scales >
Wheel Load Systems >
4 Scale Wheel Load System
|
|
|
|
|
|
Features
The Tree Race Car Scales are high-quality electronic precision weighing devices. The weighing scale consists of the following parts 1 x Digital indicator, 4 x Scale pads, 1 x power adapter and a Operation manual.
FEATURES
- Display options: 44 digital LED
- Power: recharge/AC adapter 12V/1000mA
- Select LED brightness (selectable)
- Auto shut off (selectable)
- Operating Temperature: 5-35 ¢XC
- Operating Humidity: 25%-95% RH
- Zero Range (4% to full capacity)
- Tare Range (50% to full capacity)
- Low battery will appear - charge
- Error message indication:
[Err-O] = Overload
[Err-Z] = Exceed zero track range when power is on
[Err-S] = Unstable when power is on
[Err-C] = calibration code is not enough or operation error
|
|
Other TREE MRC Wheel Weighing Scales
|
Specifications
|
MRC-2000 |
MRC-6500 |
| Capacity x Readability |
550 lb (x 4) x 0.2 lb |
1650 lb (x 4) x 1 lb |
| Pan Size |
12" x 12.7" |
14" x 16" |
| Units |
lb, kg |
| Inner Connection |
Bluetooth |
| No. of Display Divisions |
2500 |
1650 |
| No. of Internal Resolutions |
2m |
| Accuracy |
+/-3d |
| Scale Dimensions(inch) |
12 x 12.7 x 2.6 |
14 x 16 x 2.5 |
| LCD Height(inch) |
LED 0.56 |
| Beeper |
Yes |
| AD Processor |
21 bit A/D |
| AD Update Speed |
10Hz |
| Settling Time |
<2s |
| Calibration Software |
AnyCAL |
| No of Keys |
3 |
| Memory |
Zero |
| USB |
Yes |
| Power source |
6 V/4AH (not included) or AC/DC Adapter 12V DC / 1000mA |
| Temperature |
5°C - 40°C |
| Relative humidity |
25% - 85%, non-condensing |
| Net Weight(lb) |
44 |
55 |
| Shipping Weight(lb) |
48.4 |
89.5 |
|
|
|
|
|
|
|
|
|
|
|
|
