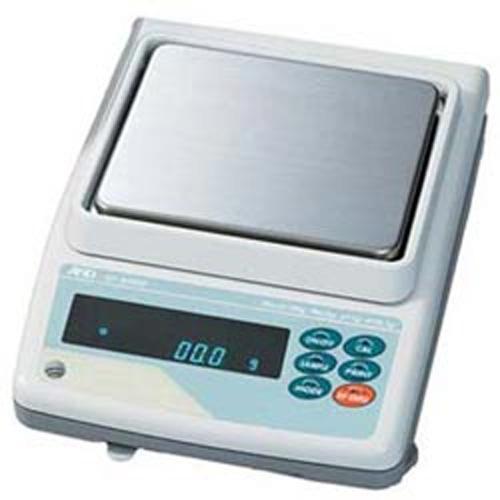

AND Weighing GX-6100 Analytical Balance, 6100 x 0.01 g |
|
| GX Series feature multiple weighing modes including animal weighing, percentage weighing, density determination and more. RS232 and GLP/GMP/ISO compliant. Features super hybrid technology and internal calibration. more ... |
|
Laboratory Equipment >
Analytical Balances >
Precision - 0.01 g
|
|
|
|
|
|
Features
The GX Series is so complete that AND Weighing calls it The Worlds Most User Friendly Balance. GX-series laboratory scales are produced as single-size, low-profile, esthetically pleasing instruments. The GX series analytical balances are available in a choice of eight different capacities ranging from 210g to 8100g. Various resolutions and optional glass breeze breaks are also available.
- Fast, new Super Hybrid Sensor (SHS) gives you the ultimate in response speed--Just ONE Second!
- Internal Calibration Weight for quick, convenient calibration
- Auto Environmental Compensation ensures the optimal performance of the balance at all times
- IP64 Splashproof operator keyboard protects against dust and spills
- Stainless Steel weighing pan
- Standard RS-232 bi-directional communications
- Multiple weighing modes, including animal weighing, comparator function, ACAI counting function, percentage weighing function and density determination.
- GLP/GMP/ISO compliant to either AD-8121 printer or computer. Transmits date, time, ID number, serial number and calibration data
- Auto re-zero function after each weighing
- Windows compatible data collection software
- Interval time setting for automatic weighings at intervals from 1 second to 10 minutes
- Data Memory Function can accept any of the following data matrices:
- 200 sets of weighing data
- 100 sets of weighing data with date and time
- 50 sets of GLP data -- time, data, calibration data, ID number and serial number
- 20 sets of unit average piece weight for use in the piece counting mode
- Resolution Range among models: 1/60,000 to 1/600,000
- Time and date built in
- Large, bright Vacuum Fluorescent Display - see the display even in the dark
- Percentage, Counting Functions & Comparator functions
- ACAI Counting Function for highly accurate counting
- Bright, blue Vacuum Fluorescent Display
- Underhook weighing
- USB compatible
Specifications
- Stabilization Time: 1 second
- Dimensions: 8.26 W x 12.48 D x 3.38 H in (210 W x 317 D x 86 H mm)
- Breeze Break: 6.37 W x 8.14 D x 2.50 H
- Operating Temp: 5°C ~ 40 °C (14°F ~ 104°F)
- Power: 110, 120, 210, 220 VAC, 50/60 Hz
| Model |
GX-200 |
GX-400 |
GX-600 |
GX-800 |
GX-1000 |
GX-2000 |
GX-4000 |
GX-6100 |
GX-6000 |
GX-8000 |
| Capacity x Readability |
210 x 0.001g |
410 x 0.001g |
610 x 0.001g |
810 x 0.001g |
1010 x 0.001g |
2100 x 0.01g |
4100 x 0.01g |
6100 x 0.01g |
6100 x 0.1g |
8100 x 0.1g |
| Minimum weighing value |
0.001g |
0.01g |
0.1g |
| Repeatability (Standard Deviation) |
0.001g |
0.01g |
0.1g |
| Other units of measure |
Decimal ounce, Troy ounce, Pennyweight, Carat, Momme, Grain unit, Pound, Pound/Ounce |
| Linearity |
±0.002g |
±0.003g |
±0.02g |
±0.03g |
±0.1g |
| Stabilization time Approx.(typical at FAST) |
1 second |
1.5 second |
1 second |
1.5 second |
1 second |
| Sensitivity drift (10°C to 30°C/50°F-80°F) |
±2ppm/oC (When automatic self calibration is not used) |
±5ppm/°C (auto-self califbration OFF) |
| Operating temperature |
5°C to 40°C (41°F to 104°F), 85%RH or less (No condensation) |
| Sensing method |
Super Hybrid Sensor (SHS) *SHS: |
| Display type |
Vacuum Fluorescent Display (VFD) |
| Display refresh rate |
Display refresh rate |
Counting mode
Minimum unit mass |
0.001g |
0.01g |
0.1g |
Counting mode
Number of samples |
10, 25, 50 or 100 pieces |
Percent mode
Minimum 100% reference mass |
0.100g |
1.00g |
10.0g |
Percent mode
Minimum 100% display |
0.01%, 0.1%, 1% (Depends on reference mass stored) |
| Standard serial I/F |
RS-232C Interface with Windows Communication Tools (WinCT: included as CD-ROM) |
| Weighing pan |
128 x 128mm (5.04 x 5.04inch) |
165 x 165mm (6.50 x 6.50inch) |
| Calibration |
Motor-driven Internal Calibration |
| External dimensions |
210(W) x 317(D) x 86(H)mm (8.27 x 12.48 x 3.39inch) |
| AC adapter |
Confirm that the adapter type is correct for the local voltage and power receptacle |
| Power consumption |
Approx. 11VA (supplied by AC adapter) |
| Net weight |
Approx. 4.6kg |
Approx. 5.1kg |
Weight:
13.00 lb
|
|
