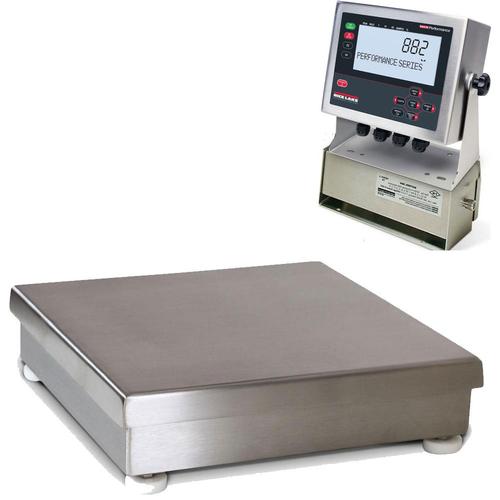

Rice Lake 882IS-18579 BenchMark SL 10 x 10 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 30 x 0.006 lb
The BenchMark SL Series offers remarkable precision and a sanitary surface for bench-top weighing. Standard platform sizes of 10 x 10 inches and 12 x 12 inches offer a variety of capacities 10 x 10 in 30 x 0.006 lb more ...
The BenchMark SL Series offers remarkable precision and a sanitary surface for bench-top weighing. Standard platform sizes of 10 x 10 inches and 12 x 12 inches offer a variety of capacities.
304 stainless steel construction
LifeGuard™ base design isolates load cell from overloads and shock loads for added durability
Specially designed adjustable support feet provide exceptional traction and won’t scratch surfaces
NTEP Certified aluminum load cell
320IS Intrinsically-Safe Digital Weight Indicator
Designed with the level of safety your location requires, the 320IS digital weight indicator meets hazardous environment requirements without hesitation. With Factory Mutual (FM) entity approval, it is the ideal solution for dangerous and highly explosive environments. Even in dimly-lit areas, the 320IS maintains brilliant visibility for user-friendly operation.
The intrinsically-safe, auto-ranging power supply is designed to meet 320IS entity parameters and safely mount in hazardous areas. With this option, wiring is simplified to a single AC conduit line and seal from the safe area—barrier strips are no longer necessary. When required, an entity approved battery power supply is also available.
For applications that require increased functionality, choose the 320IS Plus. It combines the same great features of the 320IS, but includes a full numeric keypad and keyboard tare. The 320IS Plus is also equipped with standard count mode.
Expand the flexibility of the 320IS and the 320IS Plus with the optional safe area I/O Module, featuring two serial ports, two analog outputs, four digital inputs and four elay contact outputs, allowing communication with printers, computers and other peripherals. Both models are equipped with a duplex fiber optic port for electricallyisolated communication with the I/O Module.
For IS entity approval, Rice Lake offers hundreds of FM-approved load cells that interface with the 320IS and 320IS Plus indicators in accordance with the official FM control drawings.
Bright LED display
Power ON/OFF, battery save mode
Stainless steel NEMA 4X/IP66 enclosure
Front-panel digital calibration
Excitation for 4 x 350Ù or 8 x 700Ù load cells
Duplex fiber optic interface
Factory Mutual (FM) entity approved
Class I Division I Groups A, B, C, D and Class II Division 1 Groups E, F, G and Class III; T-Rating: T4
115/230 VAC auto ranging power supply
6V battery and charger
I/O Module, 2 serial ports configurable as RS-485, RS-422, RS-232 or 20mA, 2 analog outputs, 4 digital inputs and 4 relay contact outputs (AC powered)
IS cable: hazardous environment load cell cable
Fiber optic cable
Timer relay for latching (320IS)
Other Rice Lake BenchMark 882IS-SL Stainless Steel FM Approved Scales 2lb to 100 lb
Rice Lake BenchMark SL - 320IS Explosion Proof Scales
2 x 0.0004 lb 1 x 0.0002 kg
5 x 0.001 lb 2.5 x 0.0005 kg
10 x 0.002 lb 5 x 0.001 kg
20 x 0.004 lb 10 x 0.002 kg
30 x 0.006 lb 15 x 0.003 kg
30 x 0.006 lb 15 x 0.003 kg
50 x 0.01 lb 25 x 0.005 kg
100 x 0.02 lb 50 x 0.01 kg
10 x 10 in
12 x 12 in
Legal For Trade
Base: NTEP CC 95-072, Class III 5,000 d Base: Measurement Canada AM-5082, Class III 5,000 d<
Indicator: NTEP CC 03-078 Class III/IIIL 10,000d Indicator: Measurement Canada AM-5560
320IS with Battery pack, Charger & Tilt Stand Part No 91233
