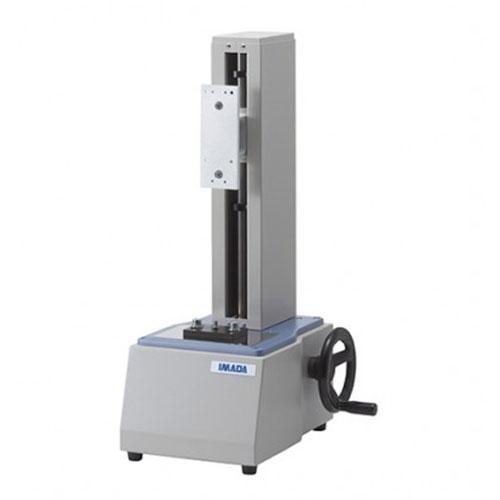

Imada HV-110 Vertical Wheel Operated Test Stand

HV Vertical Wheel Test Stand

The HV series vertical wheel operated force measurement test stands feature a compact design with several ranges, up to 750 lbf capacity. The hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control. The rack and pinion design allows the force gauge to remain stationary when the wheel is released. The HV series is very easy to use. Each rotation of the wheel will move the carriage of the test stand ~2mm.

For details on the stroke and clearance click on the specifications tab. Add a standard mounting plate at the base, to attach a variety of gripping fixtures.

The HV series test stands can accommodate any of the standard range Imada force gauges. The 300, 500 and 750 lbf capacity stands can accommodate high capacity Imada force gauges. AP-002 Adapter Plate is available to mount most other force gauges to Imada test stands.

An optional digital distance meter is available on all models (add -S to the model number).

• Hand wheel design provides precise control
• One stand for both compression (push) and tension (pull) tests
• Gauge remains in place when hand wheel is released
• HV-110 Stroke: 11.3? (288mm)
• HV-110 Max clearance 9? (with extender 14?)
• HV-110L Max clearance 16.8? (with extender 21.8?)
• Travel distance perwheel rotation 2mm
• Capacity 110 lbf
• Optional digital distance meter
