Imada LH-220S Manual Horizontal Test Stand, w/Meter |
|
| Horizontal lever operated test stand with 220 lb maximum load - distance meter available more ... |
|
Test Equipment >
Force Test Stands >
Horizontal Test Stand
|
|
|
|
|
|
Features
- Tension and compression testing
- Horizontal positioning is easy to control
- Lever action allows for rapid testing
- Large work area accommodates a wide variety of samples
- Stroke 4
- Maximum load 220 lbs (100 kg)

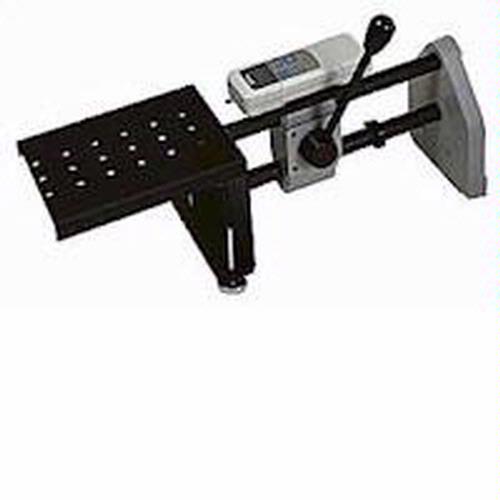

The LH-220 Horizontal Manual Lever Test Stand provides maximum versatility and reliability. The stand will accommodate any of the standard range Imada force gauges. The large working platform accommodates a wide variety of samples—ideal for peel test measurements. The stand is unaffected by gravity and does not employ a return spring, making it perfect for crimp testing and other applications where rapid sample loading is desirable. The lever action provides for quick, consistent tests. Threaded feet enable the test stand to be easily levelled. The LH-220S model is equipped with a digital distance meter.
Distance Meter Specifications
| Display |
Push button for inch/mm, zero set and on/off |
| Resolution |
0.0005/0.01 mm |
| Accuracy |
0.1% of reading or 0.005/0.1mm, whichever is greater |
Weight:
30.00 lb
|
|
