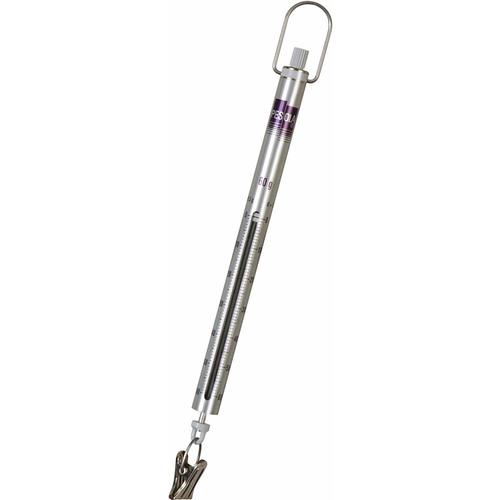

Pesola 20060 Micro-Line Spring Scale 60g x 0.5g |
|
Use precision Pesola scales to determine weights or, with the optional pressure set, determine the amount of pressure needed to move objects. Feature an easy-tare method which allows you to “zero out” container weights up to 20% of scale capacity. more ... |
Scales >
Hanging Scales >
Mechanical Hanging Scales
|
|
|
|
Features
Use precision Pesola scales to determine weights or, with the optional pressure set, determine the amount of pressure needed to move objects. Feature an easy-tare method which allows you to “zero out” container weights up to 20% of scale capacity. Made of corrosion-resistant stainless metal with an abrasion-resistant anodized finish. Scales work in any position, even overhead. Has a standard eye clip with a crocodile clamp. Includes plastic case. Three-year warranty on all models.
Accuracy: ±0.3%
Weight:
1.00 lb
|
3 Year Manufacture Warranty
|
Other Pesola Micro-Line Spring Scales
|
Specifications
Model |
20001 |
20010 |
20030 |
20060 |
20100 |
20031 |
20103 |
Capacity x Resolution |
1 N x 0.01 N |
10g x 0.1g |
30g x 0.25g |
60g x 0.5g |
100g x 1g |
30g/1oz. x 0.25g/1/32 oz. |
100g/3-1/2oz x 1g/1/16 oz. |
Accuracy |
±0.3% |
Construction |
corrosion-resistant stainless metal with an abrasion-resistant anodized finish |
Includes |
eye clip with a crocodile clamp, plastic case and Three-year warranty |
|
|
|
|
Optional Accessories
more info
|
Pesola 3.602 Replacement Clip for Micro/Medio-Line Scales
Easy interchange e.g. with accessory 3.605 (10 g - 1 kg). Radially disengage the suspension and click the new part into its place - finished!
|
|
more info
|
Pesola 3.605 Hook for Micro/Medio-Line Scales
Easy interchange e.g. with accessory 3.602. Radially disengage the suspension and click the new part into its place - finished!
|
|
more info
|
Pesola 3.655 Bird Weighing Cones, Pack of 5
Suitable for repeated use with 60 g - 600 g PESOLA precision spring scales. For field and laboratory application. Conical form gently holds wings together and precise measurement is facilitated by immobilisation of animal. Opening at base of cone allows the animal air and facilitates cleaning. Cone can be disassembled after use to save space. Also suitable for other small animals. Do not store cone in direct sunlight.
|
|
more info
|
Pesola 3.67 Protective Tube for Micro/Medio-Line Scales
Transparent, durable. A Medio-Line scale with its pressure set 4.004 e.g. perfectly fits this packaging.
|
|
more info
|
Pesola 3.613 Threaded hook M3 for Light- Micro- and Medio-Line scales
Alternative upper suspension for Light- Micro- and Medio-Line scales. Simply screw the hook into the upper zero adjustment screw head.
Alternative lower firm hook only for Medio-Line scales and only together with base of Adaptation Bolt M3 (item 4.053).
|
|
more info
|
Pesola 4.053 M3 Adaptation Bolt
Fits all Medio-Line scales and makes the product flexible for your specific needs. Exchange the standard lower bolt with this accessory to allow your individual attachment via the internal thread M3 (e.g. the fixed hook 3.613).
- Unclick a superfluous lower suspension radially (e.g. clip or hook).
- Turn the upper tare screw to the left until the inner plastic tube overlaps the aluminium tube by 1 cm.
- Unscrew the standard bolt with a flat wrench (7 mm).
- Press the inner plastic tube into the aluminium tube so that the replacing adaptation bolt nr. 4.053 can be screwed in and be tightened.
- The inner thread M3 of the adaptation bolt e.g. serves to hold the PESOLA threaded hook 3.613 or any other specific holding gear with outer thread M3.
- Do not forget to readjust the marker to zero (scale in measuring position).
|
|
more info
|
Pesola 4.012 Drag Pointer for Medio-Line Scales
Fits all Medio-Line spring scales. The drag pointer is a plastic ring, new with well gliding Teflon components. The drag pointer easily clicks over the aluminium scale tube. Before measuring move the drag pointer towards the zero position. With increasing load the drag pointer moves down and stops at the maximum load per measurement. Suitable for rupture tests up to 1000 g. (The fine Micro-Line spring scales are not designed for use with drag pointers as possible friction might influence the reading).
|
|
|
|
|
|
