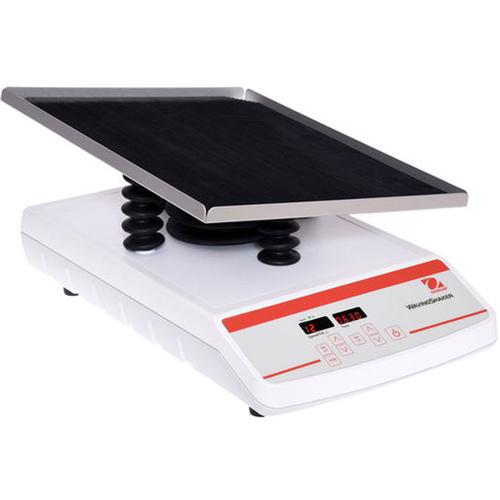

Ohaus SHWV02DG Digital Waving Shaker - 10 lbs (4.5 kg) |
|
| OHAUS Rocking and Waving Shakers are designed for use in a range of lab applications in a variety of environmental conditions. Rocking Shakers provide a seesaw-like motion, while Waving Shakers offer a smooth, low-foaming, 3D wave motion for precise speed control. Available in microprocessor-controlled digital models and more economical analog models. All models include a non-slip mat, and most models are available with a stacking tray option more ... |
|
Laboratory Equipment >
Shakers >
Open Air Shakers
|
|
|
|
|
|
Features
OHAUS Rocking and Waving Shakers are designed for use in a range of lab applications in a variety of environmental conditions. Rocking Shakers provide a seesaw-like motion, while Waving Shakers offer a smooth, low-foaming, 3D wave motion for precise speed control. Available in microprocessor-controlled digital models and more economical analog models. All models include a non-slip mat, and most models are available with a stacking tray option
Applications
Mixing Blood Samples, DNA Extractions, Blotting Techniques, Staining and Destaining Gels, Hybridizations
Display
Easy-to-read, independent LED displays for speed, tilt angle and time allow the operator to view all settings simultaneously (digital models) and basic control knobs with dial markings for speed, tilt angle and time (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum housing, non-slip rubber mat (included), stacking tray option (with all models except the analog Waver model)
Design
Spill-resistant design, overload protection with audio/visual alarm on digital models and audible alarm on analog models
| Motion |
Rocking, 0 – 15° |
| Capacity |
10lbs (4.5 kg) |
| Tray Size (LxLxWxW) |
12.75 in x 32.4 cm x 10 in x 25.4 cm |
| Control |
Digital |
| Drive System |
Stepper Motor |
| Dimensions (HxLxW) |
5.5 in x 16.8 in x 10 in (14 cm x 42.5 cm x 25.4 cm) |
| Net Weight |
6.6 lb (3 kg) |
| Power |
120V, 5A, 50/60Hz |
| Power Consumption |
25 W |
| Safety Certification |
TUV |
| Tilt Angle |
0 – 15° |
| Speed Range |
1 rpm – 50 rpm |
| Timer |
1 second – 160 hours |
| Tray Construction |
Aluminum |
| Working Environment |
14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
Weight:
15.00 lb
|
|
Other Ohaus Rocking and Waving Shakers
|
Specifications
| Model |
SHRK07AL1 |
SHRK07AL2 |
SHRK04DG |
SHWV02AL |
SHWV02DG |
| Control |
Analog |
Analog |
Digital |
Analog |
Digital |
| Motion / Tilt Angle |
Rocking / 0 – 15° |
Rocking / 0 – 15° |
Rocking / 0 – 15° |
Waving / 0 – 16° |
Waving / 0 – 20° |
| Speed Range |
1 – 75 rpm |
1 – 75 rpm |
1 – 50 rpm |
1 – 75 rpm |
1 – 30 rpm |
| Timer |
1 minute – 120 minutes |
1 second – 160 hours |
1 minute – 120 minutes |
1 second – 160 hours |
| Capacity |
16 lb / 7.3 kg |
10 lb / 4.5 kg |
5 lb / 2.3 kg |
| Working Environment |
14 °F – 140 °F, 80% Relative Humidity, non-condensing / -10 °C – 60 °C, 80% Relative Humidity, non-condensing |
| Drive System |
Stepper Motor |
| Tray Size (L × W) |
14 in. x 11 in.
356 x 279 mm |
12.75 in. x 10 in.
324 x 254 mm |
14 in. x 11 in.
356 x 279 mm |
11.75 in. x 8.75 in.
299 x 222 mm |
| Tray Construction |
Aluminum |
| Tiers |
1 |
2 |
1 |
1 |
1 |
| Overall Dimensions (L x W x H) |
16.8 x 11 x 6.5 in.
425 x 279 x 165 mm |
16.8 x 11 x 9.5 in.
425 x 279 x 241 mm |
16.8 x 10 x 5.5 in.
425 x 254 x 140 mm |
16.8 x 11 x 6.5 in.
425 x 279 x 165 mm |
17 x 11 x 6 in.
432 x 279 x 152 mm |
| Net Weight |
14.6 lb
6.6 kg |
15.5 lb
7 kg |
14.6 lb
6.6 kg |
14.6 lb
6.6 kg |
15.2 lb
6.9 kg |
| Power |
120V, 0.125A, 50/60Hz |
120V, 0.125A, 50/60Hz |
120V, 5A, 50/60Hz |
120V, 0.125A, 50/60Hz |
120V, 5A, 50/60Hz |
| Power Consumption |
15 W |
25 W |
|
|
|
|
