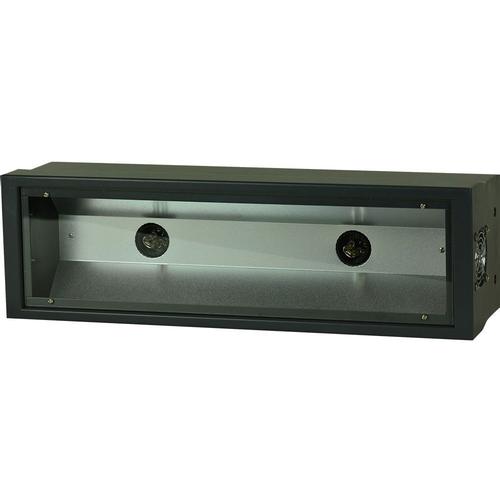

Shimpo ST-328-RC-3 Xenon Stroboscope Array, 31in 120 VAC, 3 Lamps, Remote Controller

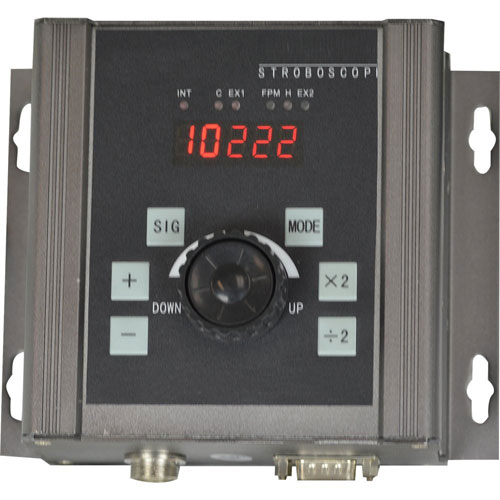

ST-328 Series xenon light array provides a bright, stable strobe light over a wide measurement range. The ST-328 Series arrays are available in several standard sizes from 10" (260 mm) to 71" (1800 mm) in length. The arrays are easily mountable on production equipment. An optional mounting adapter kit is available to aid in array installation. An integral or remote control enclosure is available to program the unit. If selecting the separate, external control enclosure, communication is via a 9.8 (3 m) connecting cable. Operation is simple with the 6 button keypad and large, LED display. Flash rate is quickly adjustable via the control dial. The unit can work off user programmed flash frequency or from a remote sensors signal which will automatically adjust to corresponding process fluctuations.

• Flash Range of 60 – 20,000 Flashes per minute. It can be finely adjusted to meet almost any application.
• IP65/NEMA 4X Control
• Nine standard size lengths from 10" (260 mm) to 71" (1800 mm)
• x2 and 1/2 keys for large adjustments to the flash rate or ± key for fine tuning
• Selectable FPM or Hz operation
• Independent Removable bulbs help with the maintenance
• Integral or remote control operations
• Bright red LED display help to see from a distance or in dimly lit areas

The ST-328 Series is designed for speed and frequency measurements in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, medical and shipbuilding industries in various applications.
