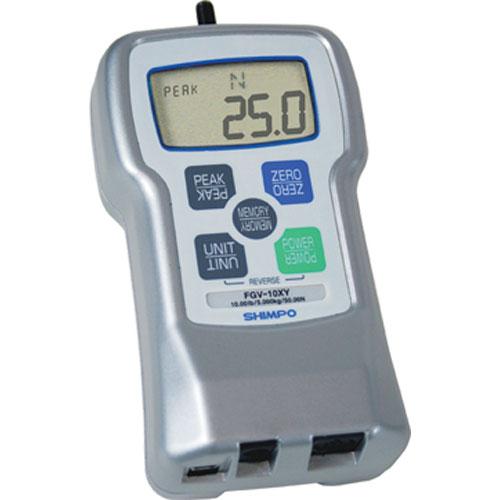

Shimpo FGV-1XY DART 2.0 Digital Force Gauge 1 x 0.001 lb

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications.

The Series FGV-XY DART 2.0 Force Gauges combine a rugged, ergonomic and compact design to provide a complete force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

On-board statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Units include the free TORIEMON-USB software and USB cable allowing further data analysis on a PC. The 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C and analog outputs provide the DART 2.0 with maximum communication flexibility. Models are available from 0.5 lbs to 200 lb ranges providing a large offering for various testing requirements.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

• 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
• High accuracy +/-0.2% F.S., ideal for strict tolerances
• Measure and record compression and tension tests- permits true “push-pull” testing
• 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
• Maximum data collection flexibility with 3 outputs: USB, RS-232 & Analog Output
• 1 million operation load cell with superior overload protection provides a long-life, damage free product
• Rugged, ergonomic die cast aluminum construction allows usage on production floor
• On board statistics provides immediate results and analysis of test data
• Variable display response rate aids viewing readings
• Expanded memory for reviewing data points and transferring to PC/Laptop
• Built-in Hi-Lo Comparator function provides user with easy ‘Go-No Go’ Testing
• Quick retrieval of peak measurement with a single push button
• Flexible user preference with one button selection of up to 4 engineering units
• Dual power capable with rechargeable battery or AC line voltage
• Field Calibration through keypad eliminates down time
• CE Mark
