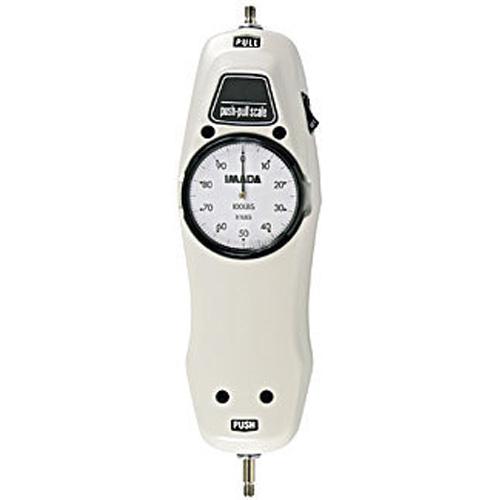

Imada FB-100 Force Gauge, 100 lb x 1 lb |
|
| The ergonomic design makes it ideal for hand-held use, or the gauges can be mounted to a test fixture. The zero-tare ring allows you to zero the gauge to compensate for measuring adapters and changes in measuring position more ... |
|
Test Equipment >
Force Gauges >
Mechanical Force Gauges
|
|
|
|
|
|
Features
Imada FB series mechanical push/pull force gauges are simple, rugged and maintenance free. Ergonomic, heavy duty metal construction. Real time and peak mode with tare ring. Capacity x readability: 100 x 1 lb
Simple, rugged and virtually maintenance free
Retains a high degree of accuracy for extended periods
Ergonomic, heavy-duty metal construction
No batteries needed
Intrinsically safe in hazardous environments
Capacity up to 100 pounds (push/pull)
Overload capacity 165 pounds on all ranges
Tare ring
Real time and peak mode
Full set of accessories and carrying case included
The rugged construction of the FB gauges will withstand industrial environments and yet retain calibration for extended periods. The ergonomic design makes it ideal for hand-held use, or the gauges can be mounted to a test fixture. The zero-tare ring allows you to zero the gauge to compensate for measuring adapters and changes in measuring position, and the real time/peak hold selector switch allows you to observe transients or capture peaks.
Many ranges are available to cover all of your measurement needs. The FB gauges are sold as kits complete with gauge, hard carrying case, five measuring tips (flat head, conical, chisel, notched and small hook) as well as a 3 extension shaft. The PS resolution is 2 times greater than FB and the kit includes everything in the FB kit plus a large hook and Y-hook.
|
Pounds |
Kilograms |
Price |
|
Model |
Capacity x
Resolution |
Model |
Capacity x
Resolution |
|
FB-32oz |
32 x 0.25 oz |
FB-1kg |
1 kg x 10 g |
$430.00 |
|
FB-2 |
2 x 0.02 lb |
FB-2kg |
2 kg x 20 g |
$430.00 |
|
FB-5 |
5 x 0.05 lb |
FB-3kg |
3 kg x 25 g |
$430.00 |
|
FB-10 |
10 x 0.1 lb |
FB-5kg |
5 kg x 50 g |
$430.00 |
|
FB-20 |
20 x 0.2 lb |
FB-10kg |
10 kg x 100 g |
$430.00 |
|
FB-30 |
30 x 0.25 lb |
FB-20kg |
20 kg x 200 g |
$430.00 |
|
FB-50 |
50 x 0.5 lb |
FB-30kg |
30 kg x 250 g |
$430.00 |
|
FB-100 |
100 x 1 lb |
FB-50kg |
50 kg x 500 g |
$430.00 |
Weight:
10.00 lb
|
|
