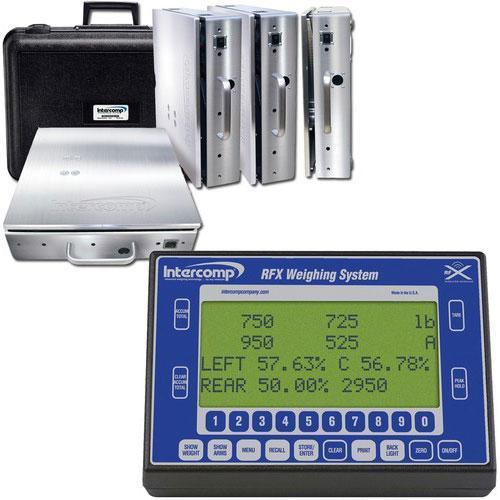

Intercomp SW 170308-RFX Wireless Wheel Scales System with Handheld Indicator 20000 x 1 lb |
|
| RFX Wireless SW Series Scales offer unbeatable accuracy and the best repeatability in a portable system with easy to use controls. Ideal for any basic weighing application. more ... |
|
Wheel Weighing Scales >
Wheel Load Systems >
4 Scale Wheel Load System
|
|
|
|
|
|
Features
RFX Wireless SW Series Vehicle Scales
Fully Integrated RFX Wireless Weighing Technology!
RFX Wireless SW Series Scales offer unbeatable accuracy and the best repeatability in a portable system with easy to use controls. Ideal for any basic weighing application.
- Accuracy of ±0.1% of Reading
- 6,000 lb (2,800 kg) & 8,800 lb (4,000 kg) System Capacities
- Handheld RFX™ Wireless Weighing Indicator Fully Controls Scale Functions
- Large, Easy-to-Read, LCD Display
- Standard AA Rechargeable Batteries Last up to 300 Hours in Scales & 40 Hours in Indicator
Systems Include:
- Four 15" x 15" x 4" (381 x 381 x 100mm) RFX™ Wireless Billet Scale Pads
- Handheld RFX™ Wireless Weighing Indicator with Rechargeable Batteries, Battery Charger & Case
- AA Alkaline Batteries for Scale Pads
| Models |
100314-RFX |
100315-RFX |
| Capacity X Graduation |
6,000 x 1 lb |
8,800 x 1 lb |
| 2,800 x 0.5 kg |
4,000 x 0.5 kg |
| Weight |
145 lb |
|
|
Other Intercomp SW-RFX Vehicle Scale Systems
|
Specifications
| Models |
100315-RFX |
100156-RFX |
170308-RFX |
170151-RFX |
| Capacity X Graduation |
8,800 x 1 lb |
8,800 x 1 lb |
20,000 x 1 lb |
20,000 x 1 lb |
| 4000 x 0.5 kg |
4000 x 0.5 kg |
10,000 x 0.5 kg |
10,000 x 0.5 kg |
| Indicator Type |
Handheld |
PT20 |
Handheld |
PT20 |
| Platform Size |
15"x15"x4" (381x381x100mm) |
| Weight |
149 lb - 68 kg |
165 lb - 75 kg |
195 lb - 89 kg |
211 lb - 96 kg |
| Accuracy: |
+/- 0.1% |
| General: |
On/Off, Zero, Local/Total, Print/Accum |
| Outputs: |
RFX™ Wireless5 |
| Display: |
- |
| Battery: |
Last up to 150 Hours in Scales |
| Includes: |
• Batteries • Wireless Indicator to Fully Control Scale Functions: Handheld Weighing Indicator or PT20™ CPU |
|
|
|
|
|
|
|
|
|
|
|
|
