Features

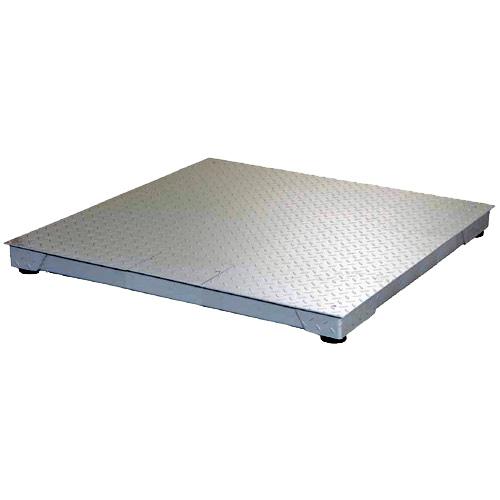

Cambridge Scale MODEL 660 Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction.
STANDARD FEATURES (only NTEP market models are Legal For Trade)
- 1 Part in 5,000 Accuracy (NTEP)
- 1 Part in 10,000 Accuracy (Non-NTEP)
- Heavy Structural Tubular Steel Construction
- Heavy Diamond Tread Deck Plate
- Top Access Plastic NEMA 4x Junction Box
- Top Access Leveling
- Stainless Steel Captive Ball Leveling Feet
- 150% Overload Protection
- 100% End Loading Capacity
- Low Profile Design Allows Easy Incline Ramping
- Eye-Bolt Holes for Easy Set-Up and Moving
- 20 Foot Shielded Indicator Cable
- Shielded signal and load cell cables protected inside tubular steel frame.
- Shock Load Protection
- Four Internally Mounted
Shear Beam Load Cells:
- NTEP Certified-5,000 Division
- Class III/III L
- Environmentally Protected
- IP 67 Water Resistant Rated
OPTIONS
- Remote junction box.
- Harsh environment package.
- Fork lift package
ACCESSORIES
- Easy incline ramps
- Bumper guards
- Pit forms
- Indicator/Printer stands
- Locator brackets
Dimensions
X:
36.00
Y:
36.00
Z:
3.00
|
1 Year Manufacture Warranty
|
Specifications
| Model |
Size (Inch) |
Capacity x Readability |
Legal For Trade |
| 3860-1000-00 |
24 x 24 x 3 |
1,000 x 0.1 lb |
NO |
- |
| 3860-1001-00 |
24 x 24 x 3 |
2,500 x 0.2 lb |
NO |
- |
| 3860-1002-00 |
30 x 30 x 3 |
1,000 x 0.1 lb |
NO |
- |
| 3860-1003-00 |
30 x 30 x 3 |
2,500 x 0.2 lb |
NO |
- |
| 3860-1004-00 |
36 x 36 x 3 |
1,000 x 0.1 lb |
NO |
- |
| 3860-1005-00 |
36 x 36 x 3 |
2,500 x 0.2 lb |
NO |
- |
| 3860-1006-00 |
36 x 36 x 3 |
5,000 x 0.5 lb |
NO |
- |
| 3860-1007-00 |
48 x 48 x 3 |
1,000 x 0.1 lb |
NO |
- |
| 3860-1008-00 |
48 x 48 x 3 |
2,500 x 0.2 lb |
NO |
- |
| 3860-1009-00 |
48 x 48 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
| 3860-1010-00 |
48 x 48 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1011-00 |
48 x 48 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1012-00 |
48 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
| 3860-1013-00 |
48 x 60 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1014-00 |
48 x 60 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1015-00 |
48 x 72 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
| 3860-1016-00 |
48 x 72 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1017-00 |
48 x 72 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1018-00 |
60 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1 |
5,000 x 1 lb |
| 3860-1019-00 |
60 x 60 x 3 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1020-00 |
60 x 60 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1021-00 |
60 x 84 x 4 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1022-00 |
60 x 84 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1023-00 |
60 x 96 x 4 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1024-00 |
60 x 120 x 5 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1025-00 |
60 x 120 x 5 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1026-00 |
72 x 72 x 4 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1027-00 |
72 x 72 x 4 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1028-00 |
72 x 96 x 4 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1029-00 |
72 x 96 x 5 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
| 3860-1030-00 |
72 x 120 x 5 |
10,000 x 1 lb |
#96-157A1 |
10,000 x 2 lb |
| 3860-1031-00 |
72 x 120 x 5 |
20,000 x 2 lb |
#96-157A1 |
20,000 x 4 lb |
|
