CAS RWT-505F - 2 Wireless Wheel Weighing Scales with Indicator 2 x 10,000 x 5 lb |
|
| The RWT-F Series wheel weigher pads are available in 4 different sizes and 4 capacities. The ultra low profile platforms are designed to weigh trucks with a multitude of axle configurations and capacity requirements. Each wheel weigher platform includes an integral weight display, and can be wirelessly interfaced up to 12 platforms via the RWT-5000F Indicator/ Printer. This kit includes 2 Scales and an Indicator. more ... |
|
Wheel Weighing Scales >
Wheel Load Systems >
2 Scale Wheel Load System
|
|
|
|
This Item Contains the following items
|
|
|
|
|
Features

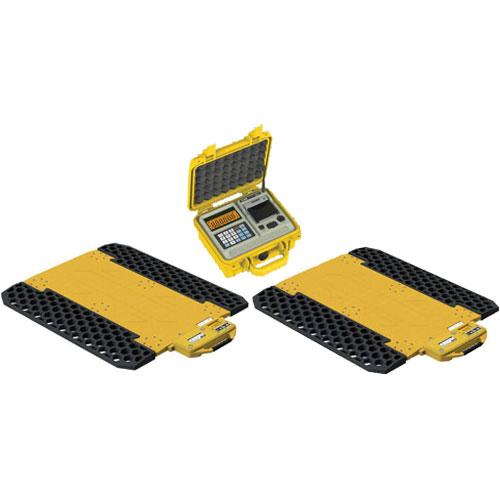

This kit includes 2 Scales and an Indicator
The RWT-F Series wheel weigher pads are available in 4 different sizes and 4 capacities. The ultra low profile platforms are designed to weigh trucks with a multitude of axle configurations and capacity requirements. Each wheel weigher platform includes an integral weight display, and can be wirelessly interfaced up to 12 platforms via the RWT-5000F Indicator/ Printer.
Full Featured & Fully Accessorized
Each RWT-F Series wheel weigher includes (2) two rechargeable Lithium Polymer (Li-Po) batteries and optional lightweight urethane ramps
- 10K, 20K, 30K,& 40K Capacities
- Ultra Low Profile Design - 1.4" (34mm) high
- Rechargeable Lithium Polymer Battery Pack
- Optional Portable Indicator w/Thermal Printer
- Connect up to 12 Wireless Platforms Simultaneously
- Static and In-Motion Weighing Capabilities
Build the Right Wheel Weigher System for your specific needs!
Utilizing optional dummy plates and dummy plate connectors, build a wheel weigher system that fits your specific needs! For in-motion weighing applications, use a single axle layout (2 scale platforms) including sufficient ramps and dummy plates to insure optimum level weighing conditions. For static weighing, the RWT-F wheel weighers may be joined via optional plates and connectors, allowing up to 12 platforms to be wirelessly interfaced via the RWT-5000F Indicator/Printer.
The RWT-5000F Indicator/Printer is enclosed in a portable, water tight case and provides weight information that includes individual wheel weight, individual axle weight, and total weight. Also included in RWT-5000F are built in USB and RS-232C ports, optional USB memory stick, memory for up to 10,000 vehicles, and connectivity to model CRD2300F/3000F wireless Remote Display units.

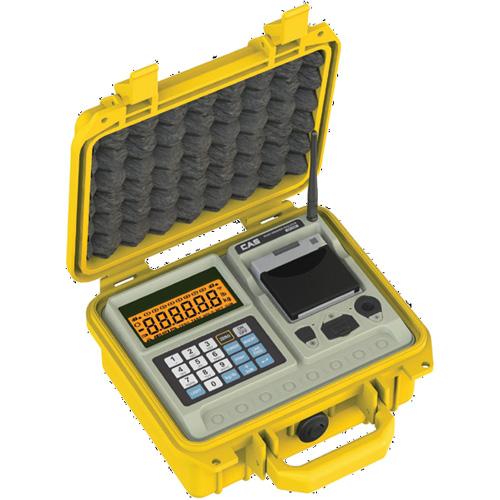

Self Contained Portable Unit The RWT-5000F Wireless Indicator is housed in a protective hardened plastic case with waterproof seals when closed.
Zigbee Wireless The RW-Z Series Wheel Weighers features Zigbee Wireless technology. Connect up to 12 RWT-F Wheel Weighing Pads within the same communication range.
Printer The RWT-5000F includes a high speed thermal printer. Prints receipts with 100 mm/sec speed and 202 dpi resolution. Use with CAS Receipt Paper #TS-25050
Interface The RWT-5000F is equipped with a RS-232 output for PC interface, USB port, DC jack, and wireless communication capabilities to CAS Wirelsss Remote Displays
Display & Keypad The RWT-5000F is equipped with a backlit LCD Display and numeric keypad.
|
2 Year Manufacture Warranty
|
Other CAS RWT-F-Series Wireless Wheel Weighing Scales
RWT-DMY2
Dummy Plat for RWT wireless wheel weighers 35.4 x 8.2 inch
$50.00
|
RWT-5000F
Wireless Indicator for RWT wireless wheel weighers
$1,350.00
|
RWT-505F
Wireless Wheel Weighing Scale 10
000 x 5 lb
$1,710.00
|
RWT-910F
Wireless Wheel Weighing Scale 20
000 x 10 lb
$2,640.00
|
RWT-705F
Wireless Wheel Weighing Scale 10
000 x 5 lb
$2,700.00
|
RWT-710F Wireless Wheel Weighing Scale 20
000 x 10 lb
$2,700.00
|
RWT-715F
Wireless Wheel Weighing Scale 30
000 x 20 lb
$2,880.00
|
RWT-915F
Wireless Wheel Weighing Scale 30
000 x 20 lb
$3,150.00
|
RWT-920F
Wireless Wheel Weighing Scale 40
000 x 20 lb
$3,420.00
|
RWT-505F - 2 Wireless Wheel Weighing Scales with Indicator 2 x 10
000 x 5 lb
$4,770.00
You are viewing this product
|
RWT-910F - Wireless Wheel Weighing Scale with Indicator 20
000 x 10 lb
$6,630.00
|
RWT-705F - 2 Wireless Wheel Weighing Scales with Indicator 10
000 x 5 lb
$6,750.00
|
RWT-710F - 2 Wireless Wheel Weighing Scales with Indicator 20
000 x 10 lb
$6,750.00
|
RWT-715F - 2 Wireless Wheel Weighing Scale with Indicator 30
000 x 20 lb
$7,110.00
|
RWT-915F - Wireless Wheel Weighing Scale with Indicator 30
000 x 20 lb
$7,650.00
|
RWT-920F - 2 Wireless Wheel Weighing Scale with Indicator 40
000 x 20 lb
$8,190.00
|
|
Specifications
| Model |
RWT-505F |
RWT-705F |
RWT-710F |
RWT-715F |
RWT-910F |
RWT-915F |
RWT-920F |
| Capacity x Readability |
10,000 x 5 lb |
10,000 x 5 lb |
20,000 x 10 lb |
30,000 x 20 lb |
20,000 x 10 lb |
30,000 x 20 lb |
40,000 x 20 lb |
| 5,000 x 2 kg |
5,000 x 2 kg |
10,000 x 5 kg |
15,000 x 10 kg |
10,000 x 5 kg |
15,000 x 10 kg |
20,000 x 10 kg |
| Display |
5 Digit LCD - Height: 0.6 in/15mm - Backlight |
| Keypad |
On/Off, Zero, Sum, Backlight |
| Accuracy |
0.1% |
| In-Motion Speed |
Up to 6 miles per hour / 10 kilometers per hour |
| Operating Time |
Approx 70hr |
| Operating Temp |
-4¢ªF ~ 140¢ªF / -20¢ªC ~ +60¢ªC |
| Power |
3.7VDC Lithium Polymer Battery |
| Product Weight |
33.1 lbs / 15 kg |
37.5 lbs / 17 kg |
44.1 lbs / 20 kg |
61.7 lbs / 28 kg |
61.7 lbs / 28 kg |
88.2 lbs / 40 kg |
| Safe Overload |
150% of rated capacity |
| Warranty |
2 |
| Platform Dimensions (inches)(mm) |
19.7 (W) x 15 (D) x 1.4 (H) |
27.6 (W) x 16.1 (D) x 1.4 (H) |
35.4 (W) x 20 (D) x 1.4 (H) |
35.4 (W) x 24 (D) x 1.4 (H) |
| 500 (W) x 380 (D) x 34 (H) |
700 (W) x 410 (D) x 34 (H) |
900 (W) x 510 (D) x 34 (H) |
900 (W) x 600 (D) x 34 (H) |
| Total Dimensions (inches)(mm) |
26.5 (W) x 20.9 (D) x 2 (H) |
34.9 (W) x 28.8 (D) x 2 (H) |
42 (W) x 33 (D) x 2 (H) |
42 (W) x 37 (D) x 2 (H) |
| 674 (W) x 532 (D) x 50 (H) |
886 (W) x 730 (D) x 50 (H) |
1066 (W) x 840 (D) x 50 (H) |
1066 (W) x 940 (D) x 50 (H) |
|
|
|
|
|
|
|
Optional Accessories
more info
|
CAS RWT-5000F Wireless Indicator for RWT wireless wheel weighers
The RWT-5000F Indicator/Printer is enclosed in a portable, water tight case and provides weight information that includes individual wheel weight, individual axle weight, and total weight. Also included in RWT-5000F are built in USB and RS-232C ports, optional USB memory stick, memory for up to 10,000 vehicles, and connectivity to model CRD2300F/3000F wireless Remote Display units.
Self Contained Portable Unit The RWT-5000F Wireless Indicator is housed in a protective hardened plastic case with waterproof seals when closed.
Zigbee Wireless The RW-Z Series Wheel Weighers features Zigbee Wireless technology. Connect up to 12 RWT-F Wheel Weighing Pads within the same communication range.
Printer The RWT-5000F includes a high speed thermal printer. Prints receipts with 100 mm/sec speed and 202 dpi resolution. Use with CAS Receipt Paper #TS-25050
Interface The RWT-5000F is equipped with a RS-232 output for PC interface, USB port, DC jack, and wireless communication capabilities to CAS Wirelsss Remote Displays
Display & Keypad The RWT-5000F is equipped with a backlit LCD Display and numeric keypad
|
|
more info
|
CAS CRD-2300F Wireless Remote Display - 5 Digit 2.3 Inch Display
Wireless Remote Display - 5 Digit 2.3 Inch Display Inches/mm: 14.1 (W) x 4.5 (H) x 6.9 (D) / 358 (W) x 115 (H) x 176 (D)
.
|
|
more info
|
CAS CRD-3000F Wireless Remote Display - 5 Digit 3 Inch Display
Wireless Remote Display - 5 Digit 3 Inch Display Inches/mm: 17.6 (W) x 5.6 (H) x 7.2 (D) / 447 (W) x 141 (H) x 183 (D)
.
.
|
|
more info
|
CAS TS25050 2 1/4 x 50ft (55g), Thermal Paper Roll, 50 Rolls/Case for RWT500F
CAS TS25050 2 1/4 x 50ft (55g), Thermal Paper Roll, 50 Rolls/Case for RWT500F
|
|
more info
|
CAS WIL-62179 Case for 2 x RWT-505F Scales
This case is a ATA-300 (Category I) is a list of specifications for reusable shipping cases and containers put forth by the Air Transport Association. Category I containers are built to withstand at least 100 one way trips of normal airline cargo handling. The ATA has also classified Category II to withstand up to 10 trips and Category III for one trip. In order for a shipping case manufacturer to certify that their product is rated ATA-300 (Category I), their product must pass a strict set of tests performed by an independent testing facility.
Why do you need it? The primary job of an ATA-300 (Category I) shipping case is that it protects the equipment inside during transit. Each year millions of dollars worth of equipment are damaged when not properly packed for transit. When sourcing a shipping case manufacturer look for a company that has been in the business a long while, has experienced, professional design engineers, excels at custom shipping case design and offers quality customer service.
This Case ATA-300 (Category I) cases meet and/or exceed the specifications put for by the Air Transport Association for category I cases and containers. Below are our basic ATA-300 Case Specifications (Category I):
ATA-300 Shipping Cases
1. Construction Panels
Wilson LT Reinforced Tri-laminate - 100% recyclable Polyproplene with non-directional cellular center, 7mm, talc-filled. Thermoformed center layer is laminated to outer layer hermetically sealing air loaded cells. When third layer is laminated to the opposite side the resulting three dimensional sheet is stronger and lighter weight than laminated plywood or extruded polyethylene sheets. Read more on the Wilson LT
2. Angle
Extruded aluminum; 6063 alloy; heat-treated to T-5-5; 1.1875" ; machine-riveted to case walls every three inches.
3. Valance
Exceptionally deep tongue-and-groove closure; extruded aluminum 6063 alloy grade; heat treated to T-5-5; with oblong channel in goove to secure optional neoprene gasket; both tongue and groove have full inner leg for superior strength.
4. Hinge
Stainless steel; continuous piano hinge; riveted through both inner and outer leg of double-walled valance every two inches.
5. Ball Corners
14-Gauge plated steel, stackable (top corners have depression to accept rounded bottom corner for secure nesting when stacked).
6. Latches
Recessed; plated steel; positive action butterfly twist style. Does not require valance to be broken. The latch spans tongue-and-groove to eliminate dust and moisture and preserve the integrity of the case.
7. Handles
Recessed; plated steel; spring loaded 3/4" diameter rubber grip sleeves. Deeper dish in handle located on lid (when applicable prevents handle from interfering with stacking ability.
8. Rivets
Machine-driven; zinc plated; spaced a maximum of 3" apart.
|
|
|
|
|
|
|
|
|
)
)
