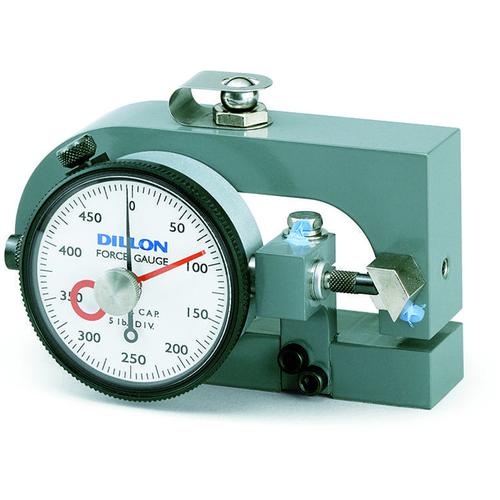

Dillon 30444-0068 X-C Compression Force Gauge with Maximum Hand, 500 x 5 kg |
|
| Proven accuracy and ruggedness sets the Dillon X-C mechanical force gauge apart in the force measurement industry. The “D" shaped deflection beam is the heart of the Force Gauge system. Highly engineered materials with close machining tolerances and proper heat treatment provide optimum strength and spring characteristics more ... |
|
Test Equipment >
Force Gauges >
Mechanical X Gauges
|
|
|
|
|
|
Features
Standard Compression Pounds Models
| Model |
30386-0035 |
30386-0043 |
30446-0033 |
30446-0017 |
30444-0019 |
30388-0017 |
30389-0016 |
30449-0014 |
| Capacity & Dial Divisions |
50 x 1/2 lb |
100 x 1 lb |
250 x 2-1/2 lb |
500 x 5 lb |
1000 x 10 lb |
2000 x 20 lb |
5000 x 50 lb |
25000 x 250 lb |
Compression Models with Maximum Hand in Pounds
| Model with Maximum Hand |
30386-0159 |
30446-0090 |
30446-0074 |
30444-0050 |
30388-0058 |
30389-0057 |
30423-0055 |
30449-0055 |
| Capacity & Dial Divisions |
100 x 1 lb |
250 x 2-1/2 lb |
500 x 5 lb |
1000 x 10 lb |
2000 x 20 lb |
5000 x 50 lb |
10000 x 100 lb |
25000 x 250 lb |
Compression Models with Maximum Hand in Kilogram
| Model with Maximum Hand |
30386-0183 |
30446-0181 |
30446-0082 |
30444-0068 |
30388-0066 |
30389-0065 |
30423-0063 |
30449-0063 |
| Capacity & Dial Divisions |
50 x 0.5 kg |
100 x 1 kg |
200 x 2 kg |
500 x 5 kg |
1000 x 10 kg |
2000 x 20 kg |
5000 x 50 kg |
10000 x 100 kg |
Weight:
20.00 lb
|
|
Other Dillon X-C Compression with Maximum Hand Metric
|
|
|
|
|
|
