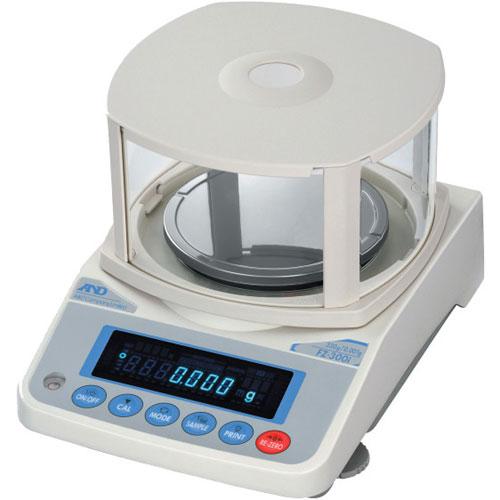

AND Weighing FX-200iWP (External Calibration) Water Proof/Dust Proof Precision Balance,220 x 0.001 g w/Breeze Break (3.4inch high)

A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time more ...
Scales > Laboratory > Basic
AND Weighing FX-200iWP (External Calibration) Water Proof/Dust Proof Precision Balance,220 x 0.001 g w/Breeze Break (3.4inch high)

Specifications Chart View Full Detail Page


Call for more info
Download PDF
AND Weighing FX-200iWP (External Calibration) Water Proof/Dust Proof Precision Balance,220 x 0.001 g w/Breeze Break (3.4inch high)
FREE Ground Shipping *

Price: $1,173.75
Add to Cart for Warranty Information


ClickPrice
In Stock - Ships within 24 hours

Optional Accessories

View Features

AND Weighing
SKU: FX-200iWP

Features

FX-iWP Water Proof/Dust Proof
External Calibration

A&D has applied its expertise in the design of waterproof scales to develop the world’s fi rst IP-65 rated 1 mg resolution balance. It is dust-tight and can even be sprayed with water. Think of it as an “accident-proof” balance suitable for use in environments that can render other balances inoperable.

What does “IP65” mean? The International Protection (IP) Code, as defi ned by the international standard IEC 60529, specifi es the degrees of protection provided by enclosures. The two digits next to IP indicate the levels of protection against solid foreign objects (first digit) and water (second digit). For example, a device rated as IP65 should permit no ingress of dust (level 6) and withstand water jetting from any direction (level 5).

Features

Standard RS-232C Interface
Standard RS-232C Interface with a PC, printer or other peripheral devices.

GLP/GMP/GCP/ISO Compliant
In accordance with GLP and LIMS regulations In accordance with GLP and LIMS regulations be printed out using A&D’s AD-8121B or a PC.

Auto Power OFF Function
The display switches OFF automatically when the balance is inactive for 10 minutes as a power-saving tool.

Multiple Weighing Units of Measurement
Programmable or standard weighing units of measurement can be selected; g, pcs, %, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT.

Response Indicator Function
Selectable FAST, MID or SLOW response to suit weighing environment conditions.

Built-in Rechargeable Battery (FXi-09)
An optional Ni-MH rechargeable battery pack can be fi tted into the FX-i series for use without AC power and for mobile applications (10 hours charging time for 8 hours operation).

Product Features:

  • IP65 Water proof/Dust Proof
  • Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
  • Multiple Weighing Units(g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, % and MLT)
  • SCF-Statistical Calculation Function
  • Quick USB Interface (FXi-02)
  • Dust-tight and protected against water jets (complying with IP65), suitable to weigh powdery or
  • liquid material. A waterproof RS-232C cable (AX-KO2737-500) is available as an option.
  • Compact general-purpose balance, can be installed almost anywhere.
  • Casing construction, strong protection against dust and water.
  • Stabilization time of one second. When FAST is selected for the response rate, a stabilization
  • time of one second, to read a displayed value after a sample is placed on the pan, has been achieved.
  • Multiple weighing units with most of the common units used around the world.
  • Standard RS-232C serial interface to communicate with a computer and to output the Good
  • Laboratory Practice (GLP) data
  • Statistical calculation mode to statistically calculate the weight data, and display or output the
  • sum, maximum, minimum, range (maximum-minimum), average, standard deviation and
  • coefficient of variation.
  • Comparator Indicators, displaying the comparison results.
  • Hold Function, provided for weighing a moving object such as an animal.
  • Breeze break, provided for the FX-120i WP /200i WP /300i WP, for more accurate weighing.
  • Underhook, provided for suspended weighing.
  • As options, the USB interface (FXi-02), the Ethernet interface (Fxi-08) and the built-in battery unit
  • (Fxi-09) are available. When any one of these is used, the balance does not comply with IP65.

Weight: 10.00 lb
Other AND Weighing FX-iWP - External Calibration Balances

FX-1200iWP
(External Calibration) Water Proof/Dust Proof Precision Balance
1220 x 0.01 g

$1,110.00

FX-120iWP
(External Calibration) Water Proof/Dust Proof Precision Balance
122 x 0.001 g w/Breeze Break (3.4inch high)

$1,113.75

FX-200iWP
(External Calibration) Water Proof/Dust Proof Precision Balance
220 x 0.001 g w/Breeze Break (3.4inch high)

$1,173.75

You are viewing this product

FX-2000iWP
(External Calibration) Water Proof/Dust Proof Precision Balance
2200 x 0.01 g

$1,173.75

FX-3000iWP
(External Calibration) Water Proof/Dust Proof Precision Balance
3200 x 0.01 g

$1,248.75

FX-300iWP
(External Calibration) Water Proof/Dust Proof Precision Balance
320 x 0.001 g w/Breeze Break (3.4inch high)

$1,252.50

Specifications

  FX-120iWP FX-200iWP FX-300iWP FX-1200iWP FX-2000iWP FX-3000iWP
Capacity x
Resolution
g 122 x 0.001 220 x 0.001 320 x 0.001 1220 x 0.01 2200 x 0.01 3200 x 0.01
oz 4.30 x 0.00005 7.76 x 0.00005 11.28 x 0.00005 43.0 x 0.0005 77.6 x 0.0005 112.8 x 0.0005
lb 0.268 x 0.000005 0.485 x 0.000005 0.705 x 0.000005 2.68 x 0.00005 4.85 x 0.00005 7.05 x 0.00005
lb-oz 0lb, 4.30oz x 0.01oz 0lb, 7.76oz x 0.01oz 0lb, 11.29oz x 0.01oz 2lb, 11.03oz x 0.01oz 4lb, 13.60oz x 0.01oz 7lb, 0.88oz x 0.01oz
ozt 3.92 x 0.00005 7.07 x 0.00005 10.28 x 0.00005 39.2 x 0.0005 70.7 x 0.0005 102.8 x 0.0005
ct 610 x 0.005 1100 x 0.005 1600 x 0.005 6100 x 0.05 11000 x 0.05 16000 x 0.05
dwt 78.6 x 0.001 141.7 x 0.001 206.2 x 0.001 786 x 0.01 1417 x 0.01 2062 x 0.01
GN 1882 x 0.02 3395 x 0.02 4938 x 0.02 18827 x 0.2 33951 x 0.2 49383 x 0.2
Counting Mode Min. Unit
Mass
0.001g 0.01g
# of
Samples
5, 10, 25, 50 or 100 pieces
Percent Mode Min. 100%
Ref. Mass
0.100g 1.00g
Min. 100%
Display
0.01%, 0.1%, 1% (depends on the reference mass stored)
Repeatability
(Std. Deviation)
0.001g 0.01g
Linearity ±0.002g ±0.02g
Stabilization Time
(typically set at FAST)
Approx. 1 second
Sensitivity Drift
(10°C to 30°C)
±2ppm / °C
Operating Temp 5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation)
Display Type Vacuum Fluorescent Display (VFD)
Display Refresh Rate 5 times / second, 10 times / second or 20 times / second
Std. Serial Interface RS-232C Interface
Weighing Pan 130mm 150mm
External Calibration 100g
50g
200g
100g
300g
200g
100g
1000g
500g
2000g
1000g
3000g
2000g
1000g
AC Adaptor Confirm that the adaptor type is correct for the local voltage and power receptacle
Power Consumption Approx. 11VA (supplied to the AC Adaptor)
External Dimensions 193 (W) x 262.5 (D) x 84.5 (H) mm
Net Weight Approx. 2.5kg

* within the 48 continental US States


Optional Accessories


AND AD-8920A Universal Remote Display
more info
AND AD-8920A Universal Remote Display
more info
Price: $250.00
In Stock
btn buy
Universal Remote Display for AND Weighing balances Connects to A&D’s balances and scales using either RS-232C or current loop Includes an AC adapter and a communication cable that matches your instrument Recognizes the balance/scale baud setting automatically Large and bright VFD display
AND AD-8922A Remote Controller
more info
AND AD-8922A Remote Controller
more info
Price: $525.00
In Stock
btn buy
Remote Controller for AND Weighing balances Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted
AND AD-1683 Static Eliminator
more info
AND AD-1683 Static Eliminator
more info
Price: $1,040.25
In Stock
btn buy

The AD-1683 generates bipolar ions continuously by DC corona discharge separately from positive and negative discharge electrodes and directs the ionized air onto the charged body to eliminate static electricity. The generated ionsare well-balanced in polarity and can eliminate static electricity regardless of the polarity of the charged body

Static Electricity
Generally, insulators such as plastics are prone to be charged with static electricity when the ambient relative humidity is below 45% RH. This may affect weighing and cause a measurement error of several milligrams. The AD-1683 can eliminate static electricity very effectively


*Note: Please confirm that the AC adapter type is correct for your local voltage and receptacle type. To prevent electrical shock, insert the POWER cable into a grouding-type outlet and earth ground the grounding cable

How to install AD-1683:
Choose the installation site so that the AD-1683 can be placed beside the electronic balance and a space wide enough to place sample (10cm to 30cm from the front of the AD-1683) can be secured. Place the sample in front of the AD-1683 inside the specified area and perform static elimination. Then, weighthe sample using the electronic balance


External Dimensions

Static Eliminating Method DC corona discharge (Bipolar)
Elimination Range Distance:Approz. 10 cm to 30 cm from the electode. Area: 30x30 cm from the electode. (See Figure 2.)
Elimination Performance When Charged 5kV:
Distance 10cm 20cm 30cm 50cm
Elimination Time 1 sec 4 sec 15 sec 70 sec
Ambient Temperature and Humidity Ozone Concentration 0°C to 40°C, 80% RH or less
Positive discharge pin: 0.07PPM
Negative discharge pin: 0.25PPM
(Measured at a distance of 1cm from each discharge pin.)
Power Supply AC adapter. Please confirm that the AC adapter type is correct for your local voltage and receptacle type
Power Consumption Approx. 1.5 VA
Discharge Electrode Pin Tungsten (0.9 x 17mm), Life Approx. 10000hrs
Mass Approx. 300g (including the stand)
AND Weighing FXi-02 USB interface with cable FXi--Series
more info
AND Weighing FXi-02 USB interface with cable FXi--Series
more info
Price: $79.00
In Stock
btn buy
AND Weighing FXi-02 Quick USB interface with cable FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
more info
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
more info
Price: $429.00
In Stock
btn buy
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
more info
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
more info
Price: $279.00
In Stock
btn buy
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
AND Weighing  AD-1192· Compact  Palm-sized Dot-impact Printer
more info
AND Weighing AD-1192· Compact Palm-sized Dot-impact Printer
more info
Price: $399.00
In Stock
btn buy
The AD-1192 is a compact, palm-sized dot-impact printer that provides users with essential functions. Multiple Applications - Use the AD-1192 with A&D balances & scales or in data-logging applications. Convenient - The AD-1192 is ultra compact, lightweight, low cost and operates with low power consumption. It features a paper near-end detection function. Connectivity - RS-232C serial interface
    Features / Applications
  • Compact and light weight
  • Uses standard 2 ¼” paper
  • High speed printing
  • Paper near-end detection function
  • RS-232C interface
  • Low power consumption
  • Wall mountable
  • Balance & scale data
  • Weighing slips
AND Weighing KO:WW9-25:  RS-232C Cable, 25 pin male  to 9 pin female for AD-1192
more info
AND Weighing KO:WW9-25: RS-232C Cable, 25 pin male to 9 pin female for AD-1192
more info
Price: $46.00
In Stock
btn buy
AND Weighing ,KO:WW9-25:, RS-232C Cable,, 25 pin male to 9 pin female RS-232C Cable, 25 pin male to 9 pin female (for BM, EJ, EKi/EWi, FCi/FCSi, FXi(WP)/ FZi(WP), GH, JM) RS-232C Cable, 25 pin male to 9 pin female (for BM, EJ, EKi/EWi, FCi/FCSi, FXi(WP)/ FZi(WP), GH, JM)
AND Weighing AD-8127 Compact Multi-Function Printer
more info
AND Weighing AD-8127 Compact Multi-Function Printer
more info
Price: $695.00
In Stock
btn buy
Features
  • Easy setting and operation with a numeric keypad and LCD display
  • Built-in calendar and clock for printing date and time at any time
  • Sends re-zero and weighing data request commands to the balance/scale
  • Clear and visible dot matrix printing, which also enables long-term preservation of the printed records
  • Compact and lightweight for portability and installation anywhere
  • Interval printing mode for printing weighing data at set intervals
  • Chart printing mode for printing time-series variations of weighing data
  • Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from the balance/scale
  • Performs and prints the results of statistical calculation including standard deviation
  • Prints an ID number set for the printer at any time
  • Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to connect to balances/scales with different interfaces*
  • Receives a print, paper feed, print statistical calculation results, print total, re-zero, or weighing data request command from the optional foot switch (AX-SW128)
Character specifications 7 × 9 dots, 1.6 (W) × 3.2 (H) mm
Printing speed Approx. 1.6 lines/second
Paper feeding speed Approx. 4 lines/second
Number of characters printed 24 characters/line
Printer paper width 57.5 mm
Operating environment 0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation)
Storage environment -20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation)
Interface RS-232C (D-Sub 9P, male) / Current loop (DIN)
Power supply AC adapter
Size / weight 174 (W) × 141 (D) × 87 (H) mm / approx. 500 g
Standard accessories Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)*
