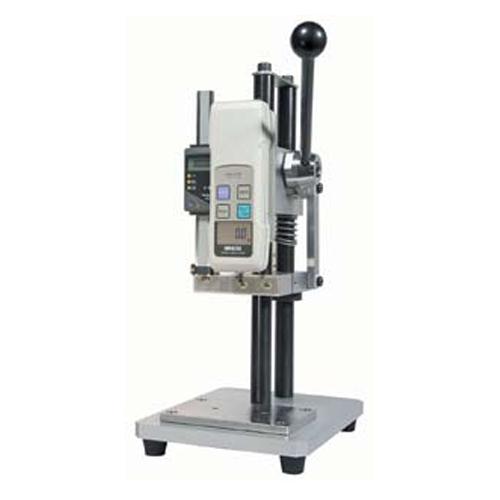

Imada NLV-220-C-S Vertical Compression Manual Lever Test Stand with distance meter |
|
| Vertical lever operated test stand with 220 lb maximum load - distance meter available. Models for either compression or tension testing more ... |
|
Test Equipment >
Force Test Stands >
Manual Test Stands
|
|
|
|
|
|
Features
| |
with distance meter |
without distance meter |
| Price |
$1075 |
$675 |
| Compression Tester |
NLV-220C-S |
NLV-220-C |
| Tension Tester |
NLV-220-T-S |
NLV-220-T |
- Lever action provides quick, consistent testing
- Pull down lever creates either compression or tension
- Return spring resets lever on compression models
- Accommodates any of the standard range IMADA force gauges
- Maximum load of 220 lbf (100 kgf)
- 2" stroke distance
- Maximum clearance of 9"
- Optional digital distance meter with a resolution of
0.005"/0.01mm and an accuracy of 0.1% rdg. or 0.005"/
0.1mm, whichever is greater
- Test stand does not include force gauge
Distance Meter Specifications
| Display |
Push button for inch/mm, zero set and on/off |
| Resolution |
0.0005/0.01 mm |
| Accuracy |
0.1% of reading or 0.005/0.1mm, whichever is greater |
The LV-220 test stands provide a convenient, reliable, and easy-to-use means of performing consistent force testing. The stands accept any of the standard capacity Imada force gauges. Model LV-220S is equipped with a digital distance meter. The optional extender plate will double the clearance.
Weight:
30.00 lb
|
|
