Intercomp LP600 170116-RF Low Profile Wheel Load Scale Systems (6 Scales) w/Handheld Computer, 6-10K-60000 x 5 lb |
|
Low-Profile, Lightweight, Digital, Self-Contained Wheel Load Scale!
This scale is designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment. more ... |
|
Scales >
Industrial Scales >
Digital Platform Scales
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
Low-Profile, Lightweight, Digital, Self-Contained Wheel Load Scale!
This scale is designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment.
Weighing a mere 49lbs/22kg and only 1.5"/38mm high, this sturdy, all aluminum, fully electronic, self-contained wheel load scale is capable of weighing loads up to 30,000lbs/15,000kg with an accuracy of +/-1%.
The scale is fully battery operated and only requires infrequent recharging from a 12, 110 or 220 volt source.
Compact, hand-held infrared remote control (included) enables the user to control all functions of the scale from a standing position. Jumbo size, 1"/25mm LCD display is readable from 25 feet/8 meters and automatically illuminates during use in low light conditions.
It is possible to connect up to 32 of these scales to obtain axle weights and you can view wheel weight or total weight from the interconnected scales at any location.

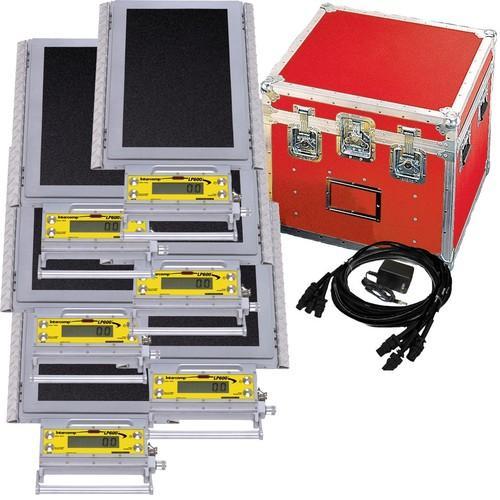

SYSTEM INCLUDES:
- Six Scales with Output
- Interconnecting Cable
- Charging Cable
- Carrying Case
| LP600 Wheel Load Scales |
| Self Contained Digital Wheel Load Scale System for Portable Weighing. |
|
Includes: Six Scales with Output, Interconnecting Cable, Charging Cable and Carrying Case. Specify the appropriate battery charger for your application.
|
| Model |
Description |
Capacity/Graduation |
Weight |
| 170112 |
Low Profile Wheel Load Scale System |
6-20K-120,000 x 100 lb/60,000 x 50 kg |
280 lb |
| 170113 |
Low Profile Wheel Load Scale System |
6-20K-120,000 x 50 lb/60,000 x 20 kg |
280 lb |
| 170114 |
Low Profile Wheel Load Scale System |
6-20K-120,000 x 20 lb/60,000 x 10 kg |
280 lb |
| 170115 |
Low Profile Wheel Load Scale System |
6-20K-120,000 x 10 lb/60,000 x 5 kg |
280 lb |
| 170116 |
Low Profile Wheel Load Scale System |
6-10K-60,000 x 5 lb/30,000 x 2 kg |
280 lb |
| 170117 |
Low Profile Wheel Load Scale System |
6-5K-30,000 x 5 lb/15,000 x 2 kg |
280 lb |
| 170112-RF |
Wireless Wheel Load Scale w/Handheld Computer |
6-20K-120,000 x 100 lb/60,000 x 50 kg |
280 lb |
| 170113-RF |
Wireless Wheel Load Scale w/Handheld Computer |
6-20K-120,000 x 50 lb/60,000 x 20 kg |
280 lb |
| 170114-RF |
Wireless Wheel Load Scale w/Handheld Computer |
6-20K-120,000 x 20 lb/60,000 x 10 kg |
280 lb |
| 170115-RF |
Wireless Wheel Load Scale w/Handheld Computer |
6-20K-120,000 x 10 lb/60,000 x 5 kg |
280 lb |
| 170116-RF |
Wireless Wheel Load Scale w/Handheld Computer |
6-10K-60,000 x 5 lb/30,000 x 2 kg |
280 lb |
| 170117-RF |
Wireless Wheel Load Scale w/Handheld Computer |
6-5K-30,000 x 5 lb/15,000 x 2 kg |
280 lb |
|
|
Other Intercomp LP600 6 Scales Systems W/ Handheld Computer
|
|
| |
|
|
|
|
|
Optional Accessories
more info
|
Intercomp 100550 PT20 CPU, BatteryOperatedPortableComputer/Printer
The PT-20 Axle Weigher CPU is Designed to Interface with Intercomp’s Complete Line of Wheel Load and Axle Scales. This central processing unit can be connected to multiple scales for vehicle and truck weighing applications.
The PT-20 is another Intercomp product developed to meet the increasing demand for mobile and highly efficient operations within the transportation industry. No longer does the operator need to tally individual wheel weights and manually compute total vehicle weight. This portable, battery operated unit automatically executes the entire task.
The PT-20’s self-prompting software simultaneously displays up to five axle weights and total weight on a large 4-line by 20-character LCD screen. Obtaining a hard-copy of the information is simple via the on-board printer which prints the location, date and time for each vehicle that has been weighed.
The PT-20 is designed to accommodate Intercomp’s PT300, PT300DW and LP600 series wheel load scales, along with Intercomp’s AX900 series axle scales. In addition, its high tech digital design enables communication with any wheel load or axle scale, anywhere, at any time. It will even interface with a notebook computer to directly transmit all stored data.
The PT-20 includes additional features such as screen contrast adjustability, a backlight for night usage, AC or DC power source and simultaneous zeroing of all platforms. These and several other useful features are available via the 7-layer membrane keypad. The weatherproof case enables use in virtually any environment and the central processor, cables, power supply and manual are packed for easy transport to weigh at the most remote locations. Most importantly, the PT-20 Axle Weigher CPU is designed and field-proven by Intercomp Company, the leading authority in portable vehicle and truck weighing.
Designed to work with Intercomp's PT300 Wheel Load Scales, LP600 Low-Profile Wheel Load Scales, AX900 Axle Load Scales, and MS450 Mining Scale Systems.
|
|
more info
|
Intercomp 160165 LP630 RollupMat-33.5 x 118 x 1.5' ( Set of 4)
Intercomp 160165 LP600 RollupMat-33.5 x 118 x 1.5' ( Set of 4) - Subject to weight and dimension change
Please call for more detailed information.
|
|
more info
|
Intercomp 101044 Six LP600 Scales Carrying Case (Custom Order)
Intercomp 101044 Six Scales Carrying Case (Custom Order)
|
|
more info
|
Intercomp 101036 Six scales Interconnect/Charge Cable PT300 or LP600
Intercomp 101036 Six scales Interconnect/Charge Cable
|
|
more info
|
Intercomp 170118-R LP600 Dummy PAD (with fabricated Ramp)
Cast Aluminum Replica Dummy Pads for PT300 Wheel Load Scales. Sold Individually. Available with Ramp or without.
|
|
|
|
|
|
|
|
|
)
)
)
)
