Intercomp PT300 100144 Digital Wheel Load Scale Systems (4 Scales) 4-20K-80000 x 10 lb |
|
The PT300 scales are designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment.
The PT300 is a sturdy, all aluminum, fully electronic, self-contained wheel load scale that is capable of weighing loads up to 20,000lbs/10,000kg with an accuracy of +/-1%. more ... |
|
Scales >
Industrial Scales >
Digital Platform Scales
|
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
The PT300 scales are designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment.

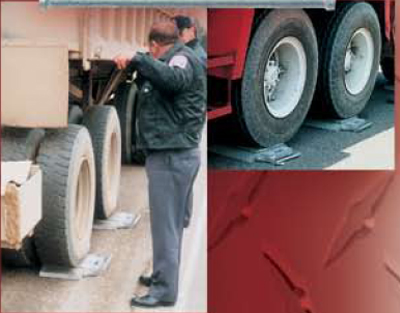

The PT300 is a sturdy, all aluminum, fully electronic, self-contained wheel load scale that is capable of weighing loads up to 20,000lbs/10,000kg with an accuracy of +/-1%.
The scales are fully battery operated and only require infrequent recharging through 12V, 110V, or 220V power sources.
The display can be lit for night use and it is possible to sequentially couple and number of PT300 scales in the series for the purpose of obtaining a total vehicle weight through the total button as well as link the scales to a computer, indicator, or Intercomp's PT20 Universal CPU.
Available in wired and wireless configurations to best meet your needs.
SYSTEM INCLUDES:
- Four Scales with 20mA Output
- Interconnecting Cable
- Charging Cable
- Carrying Case
| PT300 Wheel Load Scales With Four Scales |
| Includes: Four Scales with 20mA output, Interconnecting Cable, Charging Cable and Carrying Case. Specify the appropriate battery charger for your application. |
| Model |
Description |
Capacity/Graduation |
Weight |
| 100141 |
Digital Wheel Load Scale System |
4-20K-80,000 x 100 lb/40,000 x 50 kg |
225 lb |
| 100142 |
Digital Wheel Load Scale System |
4-20K-80,000 x 50 lb/40,000 x 20 kg |
225 lb |
| 100143 |
Digital Wheel Load Scale System |
4-20K-80,000 x 20 lb/40,000 x 10 kg |
225 lb |
| 100144 |
Digital Wheel Load Scale System |
4-20K-80,000 x 10 lb/40,000 x 5 kg |
225 lb |
| 100145 |
Digital Wheel Load Scale System |
4-10K-40,000 x 5 lb/20,000 x 2 kg |
225 lb |
| 100146 |
Digital Wheel Load Scale System |
4-5K-20,000 x 5 lb/10,000 x 2 kg |
225 lb |
| 100141-RF |
Wireless Wheel Load Scale System with Handheld Computer |
4-20K-80,000 x 100 lb/40,000 x 50 kg/font> |
225 lb |
| 100142-RF |
Wireless Wheel Load Scale System with Handheld Computer |
4-20K-80,000 x 50 lb/40,000 x 20 kg |
225 lb |
| 100143-RF |
Wireless Wheel Load Scale System with Handheld Computer |
4-20K-80,000 x 20 lb/40,000 x 10 kg |
225 lb |
| 100144-RF |
Wireless Wheel Load Scale System with Handheld Computer |
4-20K-80,000 x 10 lb/40,000 x 5 kg |
225 lb |
| 100145-RF |
Wireless Wheel Load Scale System with Handheld Computer |
4-10K-40,000 x 5 lb/20,000 x 2 kg |
225 lb |
| 100146-RF |
Wireless Wheel Load Scale System with Handheld Computer |
4-5K-20,000 x 5 lb/10,000 x 2 kg |
225 lb |
|
|
Other Intercomp PT300 Wheel Load Scale Systems with 4 Scales
|
|
| |
|
|
|
|
Optional Accessories
more info
|
Intercomp Part 100047 Carrying Case for 2 scales for PT300
Intercomp Part 100047 Carrying Case for 2 scales for PT300
|
|
more info
|
Intercomp 100015 RFX™ Wireless S400™ Indoor Numeric Remote Display
| Model |
100015
S400 |
100016
S400HI |
100017
|
100018
|
100015-RFX
S400 |
100016-RFX
S400HI |
| Input Type |
Cabled |
Cabled |
Cabled |
Cabled |
RFX™ Wireless |
RFX™ Wireless |
| Use |
Indoor |
Outdoor |
Indoor |
Outdoor |
Indoor |
Outdoor |
| Display Configuration |
Numeric |
Numeric |
Alphanumeric |
Alphanumeric |
Numeric |
Numeric |
| Digit size |
4.5 inch height (113 mm) |
| Number of digits |
Six (6)-digit by 7 segment |
Six (6)-digits x 12 segments |
Six (6)-digit by 7 segment |
| Display Format |
Floating decimal point may be placed between any digit. Fixed decimal points selectable between ones, tens and hundreds positions (123.4.5.6). Pad read- out with one or two fixed zeros, switch selectable or sent from host. On alphanumeric models, any position may show a number, letter or common punctuation symbol. |
| Operating Temperature |
-50 to 120°F (-45 to 50°C) |
| Input Serial |
RS-232 or 20mA current loop (active or passive) at all standard baud rates from 50 to 9600.
Interface cable: 4-wire x 25 feet (7.5 meters).
Lengths to 1500 feet (455 meters) with Current loop, 50 feet (15 meters) with RS-232 |
RFX Wireless |
| Input Parallel |
TL BCD 199999 Range-Minus Line, Motion/Over-capacity Line, “Print” (Strobe) Line.
Interface cable: 24-wire x 25 feet (7.5 meters).
Lengths to 50 feet (15 meters) with BCD. |
RFX Wireless |
| Display size |
32.5 x 11.5 x 3.5 inches (820 x 290 x 90 mm) |
| Power |
Standard-UL, CSA listed plug-in wall transformer,110 volts AC, 60 Hz @ 1 amp, Power cable included, 3-wire x 25 feet (7.6 meters), 220 volts available |
|
|
more info
|
Intercomp 189012 RFX™ USB Node for PC
Intercomp 189012 RFX™ USB Node for PC (Required for Direct Communication to Scales)
|
|
more info
|
Intercomp 140759 IntercompWeigh™ Software
Manage the Weighing Process and Create Comprehensive Reports
IntercompWeigh™ Software communicates directly with Intercomp’s Digital Wheel Load Scales, Crane, & Tension Link Scales, Pallet Truck Scales and Indicators. Users can manage any weighing process, view scale data, customize layouts and generate reports in one, easy-to-use program.
Set up any scale configuration for use in any weighing operation to keep track of item inventories, create procedures to maintain processes or generate customized, detailed records for future analysis. Combine with Intercomp’s wireless node to communicate directly with scales without cables.
- 32 Scales & 15 Dynamic Weighing Fields in Real Time
- Variety of Display Options, Including Peak Values per Scale, NET/Tare Values & Accumulative Modes
- Import/Export any Single Record via .xlm, Excel or Text File
- Control Scale Functions Including On/Off & Zero
- Intuitive & User-Friendly
- Multiple Search Options to Easily Find Data
Build Custom Scale Layouts
- Create Custom Layouts for Any Weighing Application
- Design Mode Offers Users the Ability to Create Unlimited Scale Configurations Based on a Multitude of Applications
Intuitive Notifications
- Set Weight Limits/Set Points for a Visual & Audible Warning When Limits are Reached
- Motion Detection for Better Weight Readings
Powerful & Easy Reporting
- Includes Default & Custom Reports
- Reweigh Any Record
- Export Specific Position Values or Export All
- Print Detailed Reports & Create Tickets
|
|
more info
|
Intercomp 101221-RFX PT20 CPU RFX Indicator with Built-in-Printer
intercomp’s Next Generation of RFX ™ Wireless Weighing Indicators!
RFX™ Wireless Weighing Indicators are available in two convenient options for use with any Intercomp RFX™
Wireless Scale System. Both provide the ability to easily process weight related data for monitoring and controlling
loads. USB/RS232 output ensures weight records can be stored and downloaded in a variety of ways and
indicators can communicate with a variety of devices, including PC’s and displays, wirelessly, saving time and
improving safety.
The PT20™ CPU is self-enclosed with a thermal printer in a rugged, all-weather case for use in even the most
remote locations and the Handheld Wireless Weighing Indicator offers a light-weight handheld alternative with
much of the same functionality as the PT20™CPU. Both systems free you of cables and enhance performance
|
|
more info
|
Intercomp 101225-RFX-P HH60 Handheld Weighing RFX Indicator with Bluetooth Printer
intercomp’s Next Generation of RFX ™ Wireless Weighing Indicators!
RFX™ Wireless Weighing Indicators are available in two convenient options for use with any Intercomp RFX™
Wireless Scale System. Both provide the ability to easily process weight related data for monitoring and controlling
loads. USB/RS232 output ensures weight records can be stored and downloaded in a variety of ways and
indicators can communicate with a variety of devices, including PC’s and displays, wirelessly, saving time and
improving safety.
The PT20™ CPU is self-enclosed with a thermal printer in a rugged, all-weather case for use in even the most
remote locations and the Handheld Wireless Weighing Indicator offers a light-weight handheld alternative with
much of the same functionality as the PT20™CPU. Both systems free you of cables and enhance performance
|
|
more info
|
Intercomp 101225-RFX HH60 Handheld Weighing RFX Indicator
intercomp’s Next Generation of RFX ™ Wireless Weighing Indicators!
RFX™ Wireless Weighing Indicators are available in two convenient options for use with any Intercomp RFX™
Wireless Scale System. Both provide the ability to easily process weight related data for monitoring and controlling
loads. USB/RS232 output ensures weight records can be stored and downloaded in a variety of ways and
indicators can communicate with a variety of devices, including PC’s and displays, wirelessly, saving time and
improving safety.
The PT20™ CPU is self-enclosed with a thermal printer in a rugged, all-weather case for use in even the most
remote locations and the Handheld Wireless Weighing Indicator offers a light-weight handheld alternative with
much of the same functionality as the PT20™CPU. Both systems free you of cables and enhance performance
|
|
more info
|
Intercomp Part 100070 Ramp (Fabricated Aluminum) for PT300
Intercomp Part 100070 Ramp (Fabricated Aluminum) for PT300
|
|
more info
|
Intercomp Part 100088 Dummy Pad (Cast Aluminum Replica) for PT300
Intercomp Part 100088 Dummy Pad (Cast Aluminum Replica) for PT300
|
|
more info
|
Intercomp Part 100049 Carrying Case for 6 scales for PT300
Intercomp Part 100049 Carrying Case for 6 scales for PT300
|
|
more info
|
Intercomp Part 100048 Carrying Case for 4 scales for PT300
Intercomp Part 100048 Carrying Case for 4 scales for PT300
|
|
more info
|
Intercomp Part 3402014 Wireless Thermal Printer with RFX™ Communication Module
Intercomp Part 340105-RFX Wireless Thermal Printer with RFX™ Communication Module
- High-Quality, Compact Thermal Printer
- Available in Bluetooth™ or Serial Interfaces
- Includes Communication Module for Direct Communication with Scales
|
|
|
|
|
|
|
|
|
)
)
)
)
