Advanced Smart Functionality, Durability, OHAUS Quality and Value
The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with painted steel bases and mounting brackets. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.
Standard Features Include:
- Painted steel bases with ABS indicator
- 10,000-12,500d default resolution for square bases, 5,000-7,500d default resolution for rectangular bases
- 1:5,000 certified resolution for square bases; up to 1:3,000 for rectangular bases
- Quick display of results using large dual line LCD with high-contrast white backlight
- Temporary display of 10x readability in weighing mode using quick key press
- Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
- Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
- Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
- 255 item Library data storage function
- Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
- Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting
- Base and indicator connected using quick connect plug
- Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module
The Defender 7000 Offers Multiple Features and Easy Configuration:
To meet different operational needs, the Defender 7000 includes a suite of configurable software
- Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:500,000 (minimum APW equal to 0.1d), selectable autooptimization of average piece weight (APW). APW data can be displayed at any time using a quick key press.
- Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.
- Dynamic/Animal Weighing with selectable averaging times from 0-60 seconds.
- Checkweighing function for count and weight checking, with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target values can be displayed at any time using a quick key press.
- Display Hold mode for weighing large packages, holds last stable weight on display until cleared manually or automatically
- The Defender 7000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
- Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 7000 features selectable print options for data and print format
- To limit operator access to functions, the Defender 7000 offers both software lockouts for menu items as well as individual key functions.
- Library storage for up to 255 memory records that may contain data from a combination of different modes. These reference data can be quickly and conveniently recalled for use with the active mode.
- Multi-language feature allows the user to display operation and menu text in the language of their choice: English, Spanish, French, German, Italian. This allows for convenience and ease of training and operation of the Defender 7000.
- Accumulation mode with statistics feature allows totalizing weight and count values manually or automatically. The total accumulated value is displayed in real-time. With the press of the “Info” key, the number of weighments, average, standard deviation, minimum, maximum and difference are displayed. These statistical values can also be printed.
- Dual scale connections are built-in for 2-scale counting configuration. Connect two bases, a higher resolution base to optimize average piece weight, in conjunction with a large capacity base to weigh/count in bulk.
- Store, view and print over 262,000 date and time-stamped weighing results with the optional Alibi memory kit.
|
|

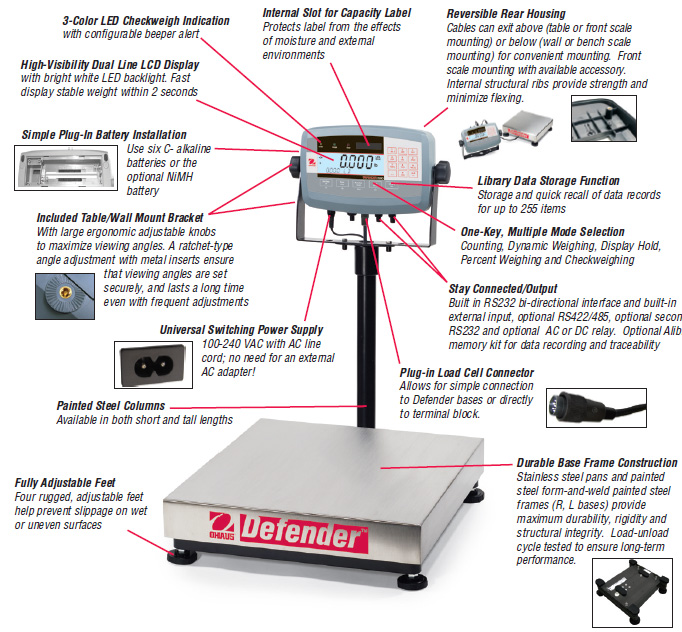

Features
T71P: ABS plastic housing with internal rib reinforcements, reversible rear cover, backlit LCD weight display, checkweighing indication (green, yellow, red), membrane keypad with raised tactile keys, built-in bi-directional RS232 with manual/continuous/interval printing, external tare input, hardware configuration lockout switch, internal switching power supply with line cord and battery power using 6 “C” cell batteries.
Other Features
Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over- and underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2, and I/O.
Compliance
- Legal for Trade (Made from Certified/Approved weighing components): NTEP (CC No. 09-102 for indicator; 99-203A3 for bases) / Measurement Canada (Approval No. AM-5762 for Indicator; AM-5675 for bases)
- Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC EMC directive: EN61326-1:1997; +A1:1998; +A2:2001; + A3>2003
- Other: Compliant to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE)
- Quality: OHAUS quality management system registered to ISO 9001:2008
Advanced Rectangular Scales
| Model Number |
D71P30HR1 |
D71P60HR1 |
|
D71P100HL2 |
D71P150HX2 |
| Price |
$1,139.56
|
$1,139.56
|
|
$1,317.33
|
$1,384.89
|
| Capacity x Readability |
60lb x 0.01lb |
150lb x 0.02lb |
250lb x 0.05lb |
300lb x 0.05lb |
| 960oz x 0.2oz |
2400oz x 0.5oz |
4000oz x 1oz |
4800oz x 1oz |
| 60lb x 0.2oz |
150lb : 0.5oz |
250lb : 1oz |
300lb : 1oz |
| 30kg x 0.005kg |
60kg x 0.01kg |
100kg x 0.02kg |
150kg x 0.02kg |
| 30000g x 5g |
60000g x 10g |
100000g x 20g |
150000g x 20g |
| Maximum Displayed Resolution |
1:60000 |
1:7500 |
1:5000 |
1:7500 |
| Capacity x Certified/Approved Readability |
60 lb x 0.02 lb
30 kg x 0.01 kg |
150 lb x 0.05 lb
60 kg x 0.02 kg |
250 lb x 0.1 lb
100 kg x 0.05 kg |
300 lb x 0.1 lb
150 kg x 0.05 kg |
| Maximum Certified Resolution |
1:3,000 |
1:3,000 |
1:2,500 |
1:3,000 |
| Legal for Trade |
NTEP (CC No. 09-102 for indicator; 99-203A3 for bases)
Measurement Canada (Approval No. AM-5762 for Indicator; AM-5675 for bases) |
| Pan Size |
12 x 14 in
305 x 355 mm |
15.7 x 19.7 in
400 x 500 mm |
16.5 x 4.9 x 21.7 x 30.5 in
420 x 125 x 550 x 775 mm |
Scale Dimensions
(W x H1 x D1 x D2) |
12 x 3.7 x 23.6 x 14 x 18.7 in
305 x 95 x 600 x 355 x 475 mm |
15.7 x 4.1 x 37 x 19.7 x 24.4 in
400 x 105 x 940 x 500 x 620 mm |
16.5 x 4.9 x 37 x 21.7 x 26.4 in
420 x 125 x 940 x 550 x 670 mm
|
Shipping Dimensions
(L x W x H) |
19.3 x 16.1 x 17.3 in
490 x 410 x 440 mm |
29.1 x 27.2 x 9.1 in
740 x 690 x 230 mm |
29.5 x 30 x 9.1 in
750 x 710 x 230 mm |
| Net Weight |
25.3 lb / 11.5 kg |
49.1 lb / 22.3 kg |
61.1 lb / 27.7 kg |
| Shipping Weight |
30.2 lb / 13.7 kg |
56.4 lb / 25.6 kg |
67.7 lb / 30.7 kg |
| Column |
13.8 in / 350 mm painted steel |
26.8 in / 680 mm painted steel |
| Indicator Model |
T71P |
| Construction |
ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum loadcell |
| Safe Overload Capacity |
150% of maximum capacity |
| Weighing Units |
lb, oz, lb:oz, kg, g, custom unit |
| Modes |
Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library |
| Display |
6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight |
| Keypad |
Positive feedback membrane keys, 5 function keys and alpha-numeric keypad |
| Protection |
Dry use for scale, IP67 for loadcell |
| Stabilization Time |
Within 2 seconds |
| Auto-zero Tracking |
Off, 0.5, 1 or 3 d |
| Zeroing Range |
2% or 100% of capacityy |
| Calibration Span |
Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point |
| Power |
100-240 VAC / 50-60Hz internal universal power supply, 6 ?C? cell batteries (not supplied) with 80 hour life |
| Interface |
RS232 and external input |
| Operating Temperature Range |
14oF to 104oF / -10oC to 40oC |
Square Advanced Chart
| Model Number |
D71P10QR1 |
D71P25QR1 |
D71P50QL2 |
D71P250QX2 |
| Price |
$1,239.11
|
$1,239.11
|
$1,380.44
|
$1,945.78
|
| Capacity x Readability |
25 lb x 0.002 lb |
50 lb x 0.005 lb |
100 lb x 0.01 lb |
500 lb x 0.05 lb |
| 400 oz x 0.05 oz |
800 oz x 0.1 oz |
1600 oz x 0.2 oz |
8000 oz x 1 oz |
| 25 lb : 0.05 oz |
50 lb x 0.1 oz |
160 lb : 0.2 oz |
500 lb : 1 oz |
| 10 kg x 0.001 kg |
25 kg x 0.002 kg |
50 kg x 0.005 kg |
250 kg x 0.02 kg |
| 10000 g x 1 g |
25000 g x 2 g |
50000 g x 5 g |
250000 g x 20 g |
| Maximum Displayed Resolution |
1:12500 |
1:12500 |
1:10000 |
1:12500 |
| Capacity x Certified/Approved Readability |
25 lb x 0.005 lb
10 kg x 0.002 kg |
50 lb x 0.01 lb
25 kg x 0.005 kg |
100 lb x 0.02 lb
50 kg x 0.01 kg |
500 lb x 0.10 lb
250 kg x 0.05 kg |
| Maximum Certified Resolution |
1:5,000 |
1:5,000 |
1:5,000 |
1:5,000 |
| Legal for Trade |
NTEP (CC No. 09-102 for indicator; 01-048A1 for bases)
Measurement Canada (Approval No. AM-5762 for Indicator; AM-5719 for bases) |
| Pan Size |
12 x 12 in
305 x 305 mm |
18 x 18 in
457 x 457 mm |
24 x 24 in
610 x 610 mm |
Scale Dimensions
(W x H1 x D1 x D2) |
12 x 3.7 x 12 x 20.8 in
305 x 95 x 305 x 530 mm |
18 x 4.5 x 18 x 26.8 in
457 x 115 x 457 x 680 mm |
24 x 5.4 x 24 x 32.8 in
610 x 137 x 610 x 833 mm |
Shipping Dimensions
(L x W x H) |
19.3 x 16.1 x 17.3 in
490 x 410 x 440 mm |
31.2 x 23.6 x 9.5 in
810 x 600 x 240 mm |
39.4 x 29.9 x 9.8 in
1000 x 760 x 250 mm
|
| Net Weight |
32.4 lb / 14.7 kg |
66.6 lb / 30.2 kg |
83.8 lb / 38.0 kg |
| Shipping Weight |
37.7 lb / 17.1 kg |
71.4 lb / 32.4 kg |
97.9 lb / 44.4 kg |
| Column |
13.8 in / 350 mm painted steel |
26.8 in / 680 mm painted steel |
| Indicator Model |
T71P |
| Housing |
ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum load cell |
| Safe Overload Capacity |
150% of maximum capacity |
| Weighing Units |
lb, oz, lb:oz, kg, g, custom unit |
| Display |
6-digit, 7,-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight |
| Keyboard |
Positive feedback membrane keys, 5 function keys and alpha-numeric keypad |
| Protection |
Dry use for scale, IP67 for loadcell |
| Stabilization Time |
Within 2 seconds |
| Auto-zero Tracking |
Off, 0.5, 1 or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Calibration |
Span: 1 kg or 1 lb to 100% of capacity / 3-point linearity (0 - 50% - 100% fixed) |
| Power |
100-240 VAC / 50-60Hz internal universal power supply |
| Interface |
RS232 and external input |
| Operating Temperature Range |
14ºF to 104ºF / -10ºC to 40ºC |

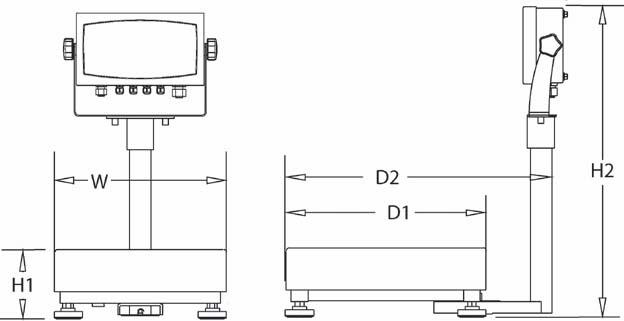

Dimensions
| Model Number |
D71P15HR1 |
D71P30HR1 |
D71P60HR1 |
D71P60HL2 |
D71P100HL2 |
D71P150HX2 |
D71P300HX2 |
Scale Dimensions
(W x H1 x D1 x D2) |
12 x 3.7 x 23.6 x 14 x 18.7 in
305 x 95 x 600 x 355 x 475 mm |
15.7 x 4.1 x 37 x 19.7 x 24.4 in
400 x 105 x 940 x 500 x 620 mm |
16.5 x 4.9 x 37 x 21.7 x 26.4 in
420 x 125 x 940 x 550 x 670 mm
|
| Model Number |
D71P10QR1 |
D71P25QR1 |
D71P50QL2 |
D71P100QL2 |
D71P250QX2 |
Scale Dimensions
(W x H1 x D1 x D2) |
12 x 3.7 x 12 x 20.8 in
305 x 95 x 305 x 530 mm |
18 x 4.5 x 18 x 26.8 in
457 x 115 x 457 x 680 mm |
24 x 5.4 x 24 x 32.8 in
610 x 137 x 610 x 833 mm |
