OHAUS Defender 7000X Xtreme Washdown Square Scales

Legal For Trade Canada Measurement Legal Square Xtreme Washdown Chart Dimensions Chart

Advanced Smart Functionality, Durability, OHAUS Quality and Value

The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW indicator with a square, all-stainless steel washdown base and a stainless steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications

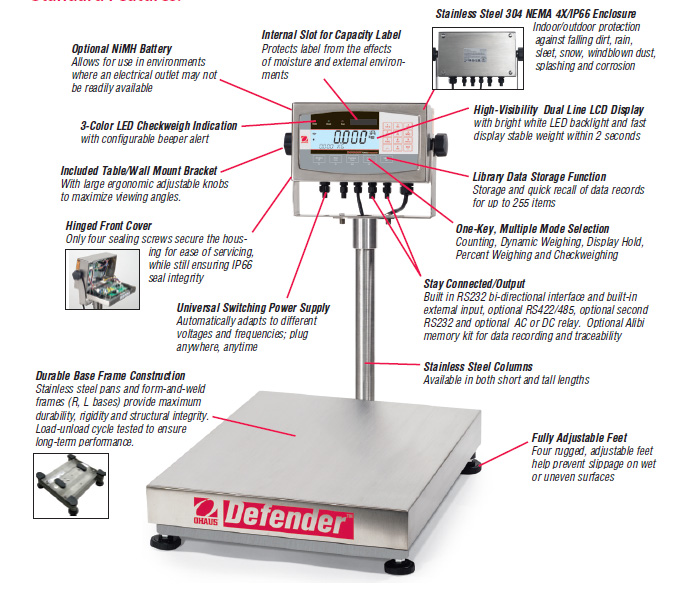

Standard Features Include:

• All stainless-steel construction with IP66/NEMA4X protection for indicator, with loadcells protected to IP67
• 10,000-12,500d default resolution
• 1:5,000 certified resolution
• Quick display of results using large dual line LCD with high-contrast white backlight
• Temporary display of 10x readability in weighing mode using quick key press
• Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
• Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
• Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
• 255 item Library data storage function
• Internal power supply with universal line cord – optional NiMH internal rechargeable power pack available
• Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting
• Base and indicator connected using quick connect plug
• Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module

The Defender 7000 Offers Multiple Features and Easy Configuration:

• Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:500,000 (minimum APW equal to 0.1d), selectable auto-optimization of average piece weight (APW). APW data can be displayed at any time using a quick key press.
• Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.
• Dynamic/Animal Weighing with selectable averaging times from 0-60 seconds.
• Checkweighing function for count and weight checking, with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target values can be displayed at any time using a quick key press.
• Display Hold mode for weighing large packages, holds last stable weight on display until cleared manually or automatically
• The Defender 7000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
• Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 7000 features selectable print options for data and print format
• To limit operator access to functions, the Defender 7000 offers both software lockouts for menu items as well as individual key functions.
• Library storage for up to 255 memory records that may contain data from a combination of different modes. These reference data can be quickly and conveniently recalled for use with the active mode.
• Multi-language feature allows the user to display operation and menu text in the language of their choice: English, Spanish, French, German, Italian. This allows for convenience and ease of training and operation of the Defender 7000.
• Accumulation mode with statistics feature allows totalizing weight and count values manually or automatically. The total accumulated value is displayed in real-time. With the press of the “Info” key, the number of weighments, average, standard deviation, minimum, maximum and difference are displayed. These statistical values can also be printed.
• Dual scale connections are built-in for 2-scale counting configuration. Connect two bases, a higher resolution base to optimize average piece weight, in conjunction with a large capacity base to weigh/count in bulk.
• Store, view and print over 262,000 date and time-stamped weighing results with the optional Alibi memory kit.

T71P: ABS plastic housing with internal rib reinforcements, reversible rear cover, backlit LCD weight display, checkweighing indication (green, yellow, red), membrane keypad with raised tactile keys, built-in bi-directional RS232 with manual/continuous/interval printing, external tare input, hardware configuration lockout switch, internal switching power supply with line cord and battery power using 6 “C” cell batteries.

Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over- and underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2, and I/O.

• Legal for Trade (Made from Certified/Approved weighing components): NTEP (CC No. 09-102 for indicator; 01-048A1 for bases) / Measurement Canada (Approval No. AM-5762 for Indicator; AM-5719 for bases)
• Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC Compliant to Directive 202/96/EC on waste electrical and electronic equipment (WEEE)
• Quality: OHAUS quality management system registered to ISO 9001:2008

Square Xtreme Chart

Model Number	D71XW10WR3	D71XW50WL4	D71XW100WL4
Price	$1,521.78 Add to Cart	$2,368.89 Add to Cart	$2,368.89 Add to Cart
Capacity x Readability	25 lb x 0.002 lb	100 lb x 0.01 lb	250 lb x 0.02 lb
	400 oz x 0.05 oz	1600 oz x 0.2 oz	4000 oz x .5 oz
	25lb : 0.05oz	100 lb : 0.2 oz	250 lb : .5 oz
	10 kg x 0.001 kg	50 kg x 0.005 kg	100 kg x 0.01 kg
	10000 g x 1 g	50000 g x 5 g	100000 g x 10 g
Maximum Displayed Resolution	1:12500	1:10000	1:12500
Capacity x Certified/Approved Readability	25 lb x 0.005 lb 10 kg x 0.002 kg	100 lb x 0.02 lb 50 kg x 0.01 kg	250 lb x 0.05 lb 100 kg x 0.02 kg
Maximum Certified Resolution	1:5,000	1:5,000	1:5,000
Legal for Trade	NTEP (CC No. 09-102 for indicator; 01-048A1 for bases) Measurement Canada (Approval No. AM-5762 for Indicator; AM-5719 for bases)
Pan Size	12 x 12 in 305 x 305 mm	18 x 18 in 457 x 457 mm
Scale Dimensions (W x H1 x D1 x D2)	12 x 3.7 x 23.2 x 12 x 16.7 in 305 x 95 x 590 x 305 x 425 mm	18 x 4.5 x 37 x 18 x 22.7 in 457 x 115 x 940 x 457 x 577 mm
Shipping Dimensions (L x W x H)	19.3 x 16.1 x 17.3 in 490 x 410 x 440 mm	31.2 x 23.6 x 9.5 in 810 x 600 x 240 mm
Net Weight	35.5 lb / 16.1 kg	69.6 lb / 31.6 kg
Shipping Weight	40.8 lb / 18.5 kg	74.5 lb / 33.8 kg
Indicator Model	T71XW
Column	13.8 in / 350 mm stainless steel	26.8 in / 680 mm stainless steel
Construction	Stainless steel indicator, removable weighing platform, column, base construction and loadcell
Safe Overload Capacity	150% of maximum capacity
Protection	NEMA 4X/IP66 for indicator, IP67 for loadcell
Weighing Units	lb, oz, lb:oz, kg, g, custom unit
Modes/Features	Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library
Display	6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight
Keypad	Positive feedback membrane keys, 5 function keys and alpha-numeric keypad
Stabilization Time	Within 2 seconds
Auto-zero Tracking	Off, 0.5, 1 or 3 d
Zeroing Range	2% or 100% of capacity
Calibration	Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point
Power	100-240 VAC / 50-60 Hz - Internal universal power supply, hardwire cord Opt. Int. rechargeable NiMH battery (10-hr. typical operation)
Interface	RS232 and external tare input
Operating Temperature Range	14oF to 104oF / -10oC to 40oC

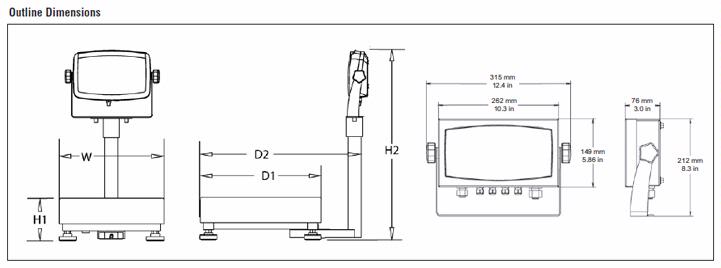

Dimensions

Model Number	D71XW10WR3	D71XW25WR3	D71XW50WL4	D71XW100WL4	D71XW250WX4
Scale Dimensions (W x H1 x D1 x D2)	12 x 3.7 x 23.2 x 12 x 16.7 in 305 x 95 x 590 x 305 x 425 mm		18 x 4.5 x 37 x 18 x 22.7 in 457 x 115 x 940 x 457 x 577 mm		24 x 5.4 x 37 x 24 x 28.7 in 610 x 137 x 940 x 610 x 730 mm
