Mark-10 MR51 Universal Torque Sensors	Authorized Dealer
A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The R51 has superb overload protection and is available in capacities from 10 ozin to 100 lbin.
Force Measurement >> Mark-10

View Spec Cart Have Questions? or email Us Our Staff will be glad to help Interchangeable chucks (order separately) Specifications Chart Due to the increased possibility of overload resulting from a higher weight attachment used with a lower capacity torque sensor, the G1016-2 and G1016-3 attachments are recommended for use only with an MR51-12 or higher capacity model

Mark-10 MR51 Universal Torque Sensors FREE UPS Ground Shipping (within the 48 continental US States) Model: Select MR51-10Z $907.25 MR51-20Z $907.25 MR51-50Z $907.25 MR51-12 $836.00 MR51-50 $836.00 MR51-100 $836.00    Mark-10 G1016-1 STH or R51 Torque Sensor Attachments, 0.028 to 0.25 in dia, add $156.75 Mark-10 G1016-2 STH or R51Torque Sensor Attachments, 0.052 to 0.375 in dia, add $161.50 Mark-10 G1016-3 STH or R51 Torque Sensor Attachments, 0.078 to 0.5 in dia, add $166.25 Mark-10 G1017 STH or R51 Bit Holder, 1/4 in hex, add $166.25

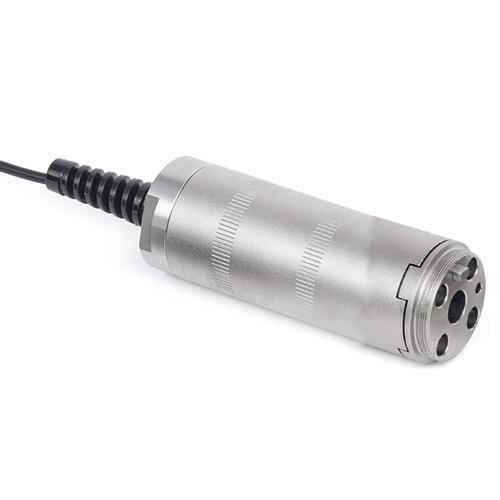

Series R51 smart sensors measure bi-directional torque for numerous applications across virtually all industries. Interchangeable Jacobs chucks and bit holder add flexibility for a variety of applications. The sensors can be used as hand held devices or mounted to a test stand. Superb overload protection adds peace of mind. Capacities available from 10 ozFin to 100 lbFin [7 to 1150 Ncm]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.

1. Compatible with the 7i, 5i and 3i digital indicators
2. Unique Plug & TestTM connector holds all calibration and configuration data
3. Outstanding overload protection
4. Interchangeable chucks (order separately)
5. NIST-traceable certificate of calibration included
6. Accuracy: + 0.20% of full scale +1 digit + indicatorWeight: From 1.4 lbs (0.6 kg)
7. Warranty: 3 years

Interchangeable chucks
G1017	G1016-1	G1016-2	G1016-3
$166.25 Add to Cart Bit holder 0.25 in [6.3 mm]	$156.75 Add to Cart Jacobs chuck 0.028 - 0.25 in [0.7 - 6.3 mm]	$161.50 Add to Cart Jacobs chuck 0.062 - 0.375 in [1.6 - 9.5 mm]	$166.25 Add to Cart Jacobs chuck 0.078 - 0.5 in [2.0 - 12.7 mm]

Model	Price	Capacity x Resolution (With Model 3i)	Capacity x Resolution (With Model 5i and 7i)
MR51-10Z	$907.25 Add to Cart	10 x 0.01 ozFin 7 x 0.005 kgFmm 7 x 0.005 Ncm	10 x 0.006 ozFin 7 x 0.005 kgFmm 10 x 0.006 ozFin 700 x 0.5 gFcm 70 x 0.05 Nmm 7 x 0.005 Ncm
MR51-20Z	Selected $907.25 Add to Cart	20 x 0.02 ozFin 14 x 0.01 kgFmm 14 x 0.01 Ncm	20 x 0.01 ozFin 14 x 0.01 kgFmm 20 x 0.01 ozFin 1400 x 1 gFcm 140 x 0.1 Nmm 14 x 0.01 Ncm
MR51-50Z	$907.25 Add to Cart	50 x 0.05 ozFin 36 x 0.05 kgFmm 36 x 0.05 Ncm	50 x 0.02 ozFin 36 x 0.02 kgFmm 50 x 0.02 ozFin 3600 x 2 gFcm 350 x 0.2 Nmm 35 x 0.02 Ncm
MR51-12	$836.00 Add to Cart	12 x 0.01 lbFin 140 x 0.1 kgFmm 135 x 0.1 Ncm	12 x 0.005 lbFi 140 x 0.1 kgFmm 12 x 0.005 lbFi 320 x 0.2 ozF 1 x 0.0005 lbFf 1.35 x 0.001 Nm
MR51-50	$836.00 Add to Cart	50 x 0.05 lbFi 580 x 0.5 kgFmm 570 x 0.5 Ncm	50 x 0.02 lbFi 580 x 0.5 kgFmm 50 x 0.02 lbFi 800 x 0.5 ozF 4 x 0.002 lbFft 5.7 x 0.005 Nm
MR51-100	$836.00 Add to Cart	100 x 0.1 lbFi 1150 x 1 kgFmm 1150 x 1 Ncm	100 x 0.05 lbFi 1150 x 0.5 kgFmm 100 x 0.05 lbFiN 1600 x 1 ozF 8 x 0.005 lbFft 11.5 x 0.005 Nm
