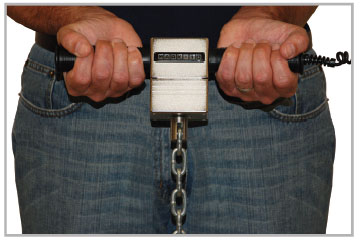

Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF [2,500 N].
Force Measurement >> Mark-10

Mark-10 MR05-500 Push / Pull Force Sensors 0.25 lb

View Spec Cart

View Test Stands

Have Questions?

email Us

Our Staff will be glad to help

Specifications Chart

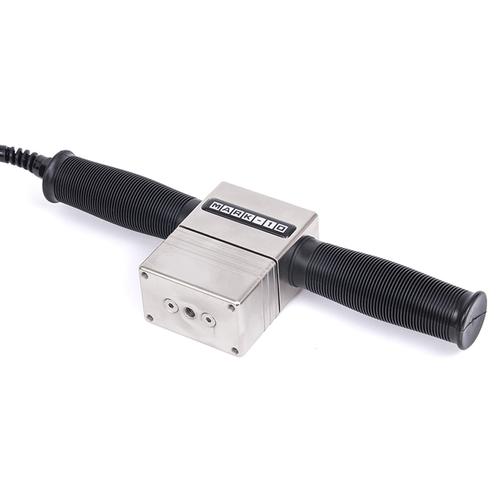

Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF [2,500 N]. Compatible with Mark- 10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.

Compatible with the 5i and 3i digital indicators
Unique Plug & TestTM connector holds all calibration and configuration data

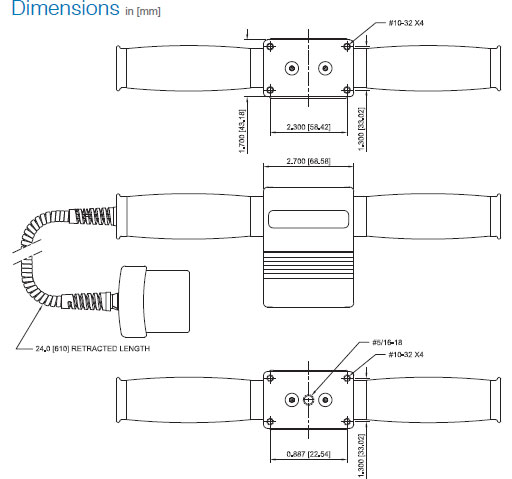

Rugged aluminum housing
Measures push and pull force
Accuracy: + 0.15% of full scale + indicatorWeight: 2.0 lbs (0.9 kg)
Warranty: 3 years

Model		MR05-500
Model		$831.25
Capacity x Resolution With Model 3i	lbF	500 x 0.5
	gF	-
	kgF	250 x 0.2
	N	2500 x 2
Capacity x Resolution With Model 5i	lbF	500 x 0.2
	ozF	8000 x 5
	kgF	250 x 0.1
	N	2500 x 1
	kN	2.5 x 0.001
