AND AD-4405 & AD-4407 Digital Weighing Indicators
Three choices of low cost, multi-functional weighing indicators to suit your specific environmental and application needs AD-4405 and AD-4407 give three choices of low cost, multi-functional weight indicators to suit your specific environmental & application needs.

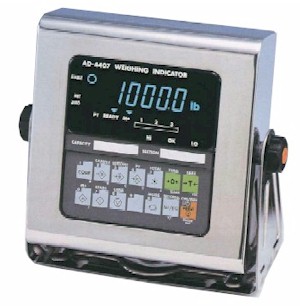

AND AD-4407 Indicator above


Legal For Trade	Canada Measurement Legal

Have Questions?

Our Staff will be glad to help

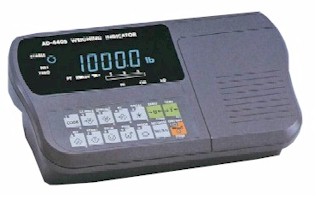

AND AD-4405 Indicator above

Three choices of low cost, multi-functional weighing indicators to suit your specific environmental and application needs

AD-4405 and AD-4407 give three choices of low cost, multi-functional weight indicators to suit your specific environmental & application needs.

Universal Flexi Coms - UFC allows you to customize the protocol of the printing format as well as outputting data with RS-232C
Lb/kg selectable
Up to 40,000 resolution
Accumulation Function - accumulative data is stored into memory automatically or manually
Comparator Function Upper/Lower, HiHi / Hi / OK / Lo / LoLo & Comparison - comparator output to optional relays
Simple Batch Weighing - Automatic batching and customer programming capability
Standard bi-directional RS-232C interface
Buzzer function
Code memory function
2 year warranty

AD-4405 Indicator

AD-4407 Indicator

IP-65 for your dust and waterproof weighing applications with stainless steel enclosure
Bright green 0.8 inch VFD display
0-9 keys for ttare, setpoints and sample count entries
Counting function
Standard wall/table mount bracket
Drives 8 load cells (350 ohms)

Specifications

	AD-4405	AD-4407
Price	$546.00	$686.40
Legal For Trade	NTEP #04-034 Canada AM-5661
Input Sensitivity	0.2µ V/D
Input Signal Range	-1mV - 15 mV
Load cell excitation	5 VDC ±5% 60mA, Remote Sensing (up to 4 load cells at 350/load cell)	5 VDC ±5% 120mA, Remote Sensing (up to 8 load cells at 350/load cell)
Zero Temperature coefficient	0.02µ V + 8ppm of dead load)/°C (typically)
Span Temperature coefficient	±8ppm/°C reading (typically)
Non-Linearity	0.01% of full scale
Input noise	less than ±0.4µ Vp-p
Input Impedance	10M ohms or more
A/D Conversion Method	integrating dual slope type
A/D Resolution	40,000 counts
Maximum Displayed Resolution	20,000 counts
A/D Conversion Rate	5 times/second, 10 times/second
Main Display	7 segment, 0.8 inch high VFD	7 segment, 0.8 inch high VFD
Power	AC 100 / 110 / 120 / 200 / 220 / 230 / 240 V -15 ~ +10%, 50/60 Hz	AC 100 / 110 / 120 / 200 / 220 / 230 / 240 V -15 ~ +10%, 50/60 Hz
Consumption	30VA	30VA
Battery Life (alkaline)	-	-
Operating Temperature	-10°C - 40°C (14°F - 104°F)
Operating Humidity	Less than 85% relative humidity, non-condensing
Physical Dimensions	10.83 W x 4.37 H x 6.26 D in / 275 x 111 x 159 mm	7.83 W x 8.11 H x 3.15 D in / 199 x 206 x 80 mm
Net Weight	2.87 lb / 1300 g	4.3 lb / 1950 g

AND AD-4405 & AD-4407 Digital Weighing Indicators
