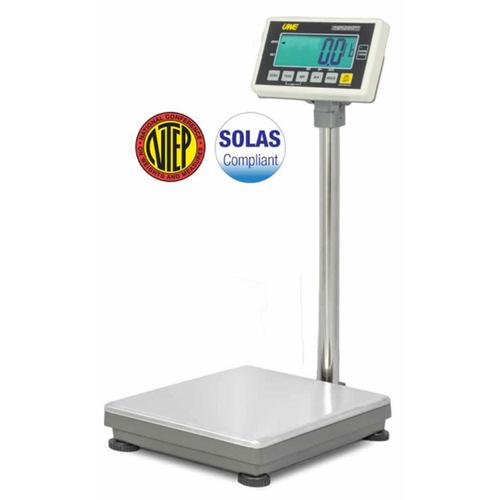

UWE UFM Stainless Steel Legal for Trade Bench Scales
Authorized Dealer
The UWE UFM-Series is Legal for Trade Bench Scales and are IP67 Washdown. Made with Stainless Steel and a Built-in rechargeable battery. Use the RS-232 port to connect to printers and computers. Comes in three different base sizes 13 x 17.7 Inches , 16.5 x 20.5 Inches or 19.7 x 23.6 Inches.
The UWE UFM-Series is Legal for Trade Bench Scales and are IP67 Washdown. Made with Stainless Steel and a Built-in rechargeable battery. Use the RS-232 port to connect to printers and computers. Comes in three different base sizes 13 x 17.7 Inches , 16.5 x 20.5 Inches or 19.7 x 23.6 Inches.
NTEP Approved 6,000 Divisions
60 lb to 1,200 lb Capacity
Large 2 Inch Backlit Display
Rechargeable Battery
3 Inch Wheel Kit Available
Configurable RS232 Interface
Large 2 inch LCD display with wide viewing angle – easy to see weight values from a distance, reduces mistakes
Built-in rechargeable battery and external power adapter – portability, battery lasts a minimum of 120 hours (without backlight)
Heavy duty rugged construction – will withstand harsh industrial operation
Accumulation function – allows you to add together consecutive weights to arrive at a total
Gravitational correction software – enables you to input different G acceleration factors
Made in Democratic Taiwan
Model
UFM-B30
UFM-B60
UFM-B150
UFM-F30
UFM-F60
UFM-F120
UFM-F300
UFM-L60
UFM-L120
UFM-L300
UFM-L600
Price
$521.05
$521.05
$521.05
$675.75
$675.75
$675.75
$675.75
$834.70
$834.70
$834.70
$834.70
Capacity x Readability
60 x 0.02 lb 30 x 0.01 kg
150 x 0.05 lb 60 x 0.02 kg
300 x 0.1 lb 150 x 0.05 kg
60 x 0.01 lb 30 x 0.005 kg
120 x 0.02 lb 60 x 0.01 kg
250 x 0.05 lb 120 x 0.02 kg
600 x 0.1 lb 300 x 0.05 kg
120 x 0.02 lb 60 x 0.01 kg
250 x 0.05 lb 120 x 0.02 kg
600 x 0.1 lb 300 x 0.05 kg
1200 x 0.2 lb 600 x 0.1 kg
Platform Size (W x D x H)
13 x 17.7 x 3.5 inches 330 x 450 x 90 mm
16.5 x 20.5 x 4.5 inches 420 x 520 x 120 mm
19.7 x 23.6 x 4.5 inches 500 x 600 x 120 mm
Legal for Trade
NTEP CoC #04-100
Divisions
3,000
6,000
Weighing Units
lb, kg
Functions
Accumulation
NEMA / IP Rating
NEMA 4X / IP 67 Protection
Tare Range
To capacity by subtraction
Power Source
Built-in rechargeable battery or external power adapter (included)
Construction
Stainless steel platform and cast aluminum base
Display
2 inch / 50.8 mm, 7 segment, wide viewing angle backlit LCD
Overall Dimensions (W x D x H)
13 x 20.7 x 28.3 inches 330 x 525 x 720 mm
16.5 x 23.5 x 33.9 inches 420 x 596 x 860 mm
19.7 x 25.5 x 33.9 inches 500 x 647 x 860 mm
Operating Environment
32ºF to 104ºF
Connectivity
RS232 interface confi gurable, for printer or computer interface
