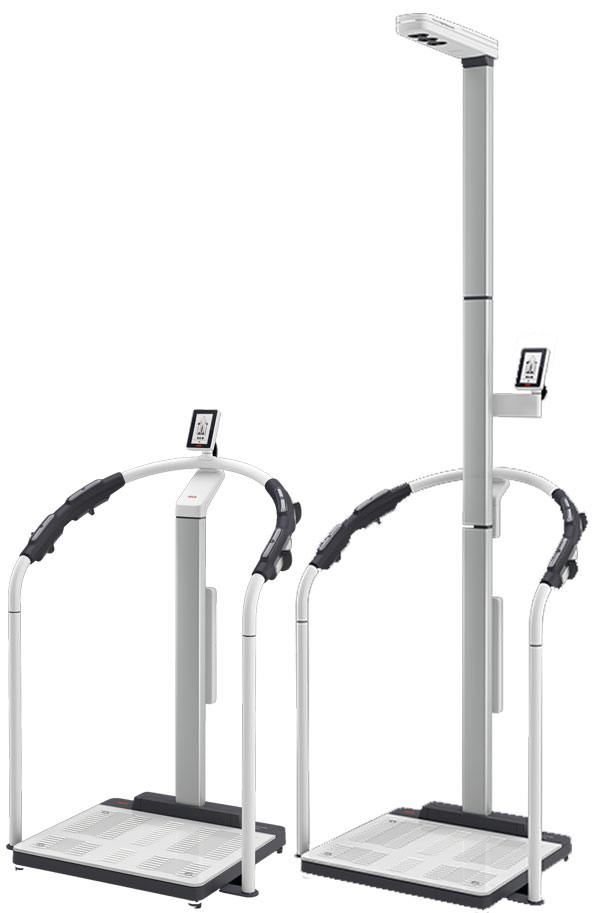

The high quality of the seca mBCA 554 is guaranteed by years of experience from research partnerships and collaboration with medical professionals. It offers study-validated precision, advanced cloud-based software, and ultrasonic length measurement. Its improved graphical analysis provides an accurate and comprehensive picture of the body composition in seconds and makes bioimpedance analysis an even more valuable support for therapy and diagnosis.
The high quality of the seca mBCA 554 is guaranteed by years of experience from research partnerships and collaboration with medical professionals. It offers study-validated precision, advanced cloud-based software, and ultrasonic length measurement. Its improved graphical analysis provides an accurate and comprehensive picture of the body composition in seconds and makes bioimpedance analysis an even more valuable support for therapy and diagnosis.
A cloud-based bioimpedance analysis
does the work for you
Thanks to the cloud-based software, all IT administrative tasks such as storing,
managing and backing up data are handled for you, leaving you with more time
for your patients. Sensitive patient data is transmitted and saved in an encrypted
form and protected from third-party access. The parameter templates can be
customized and tailored to specifi c questions and thematic priorities.
Developed in conjunction with medical users
Years of experience from research collaborations and working together with
medical specialists guarantee the highest precision and accuracy exemplifi ed
in the seca mBCA 555. Validated by medical studies, the analyzer provides
modern, cloud-based software, and optional innovative length measurement
with ultrasound technology. With its improved graphic analysis, it draws an
accurate and comprehensive picture of the bodys composition in seconds
and makes bioimpedance analysis an even more valuable support for therapy
and diagnosis
Every body component validated to the gold standard
The seca mBCA is validated as the only BIA solution for all components
with the most accurate reference method (gold standard). This includes the
complex comparison with a whole-body MRI for muscle mass and, with the
4C model, for fat mass or fat-free mass. In order to give the user absolute
certainty about the reliability of the measurement results, our validation studies
are published transparently and in a combined form in peer-reviewed journals
FEATURES
Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model (fat mass)
Handrail with fi xed handle positions: Measurements are reproducible and reliable
Validation studies are bundled and published in the European Journal of Clinical Nutrition 2013/2017, among others
Cloud-based software with easy understandable graphics guarantees a complete picture of the body composition
Functions and Properties
8 point measurement
EMR-validated
Wi-Fi
Acoustic signals can be activated
Auto-BMI
Auto-HOLD
Ethernet
Backlighting
HOLD
cm/inch switch-over
Pre-TARE
RESET
TARE
Touchscreen
Display of user and patient name or ID
Display date of birth patient
Auto-CLEAR
Extra rugged
Confirm button
CLEAR
Rotatable and tiltable display
Adjustable damping
Standby mode
Transport wheels
lbs/kg switch-over
Technical Data
Seca 554 ON IHM INT NN
Seca 554H ON IHM IUT NN
$9,029.00
$9,849.00
Capacity x Readability
800 x 0.1 lb 300 kg x 50 g
800 x 0.1 lb 300 kg x 50 g
Height Measurement
-
Ultrasonic
Measuring range
100 - 220 cm / 1 ft 12" - 7 ft 2"
Graduation
1 mm / 1/8"
Functions
Automatic calibration
Display type
4.3" tiltable and rotatable touchscreen
Connectivity
Wi-Fi, Ethernet
Ports
USB for barcode scanner
Measurement method
8-point Bioelectrical Impedance Analysis
Measurement current
100 µA
Measurement duration
24 seconds
Software
seca analytics 125
Net weight
67.2 lbs
Platform w x h d
23.6 x 2.8 x 18.4 in
Platform w x h d
33.0 x 94.0 x 25.6 in
Accessories
Ultrasonic height measurement seca 257 Barcode scanner mount seca 463 Large transport wheel set seca 468
