Rice Lake SLV RoughDeck Legal For Trade Livestock Scales

Rice Lake SLV RoughDeck Livestock Scales

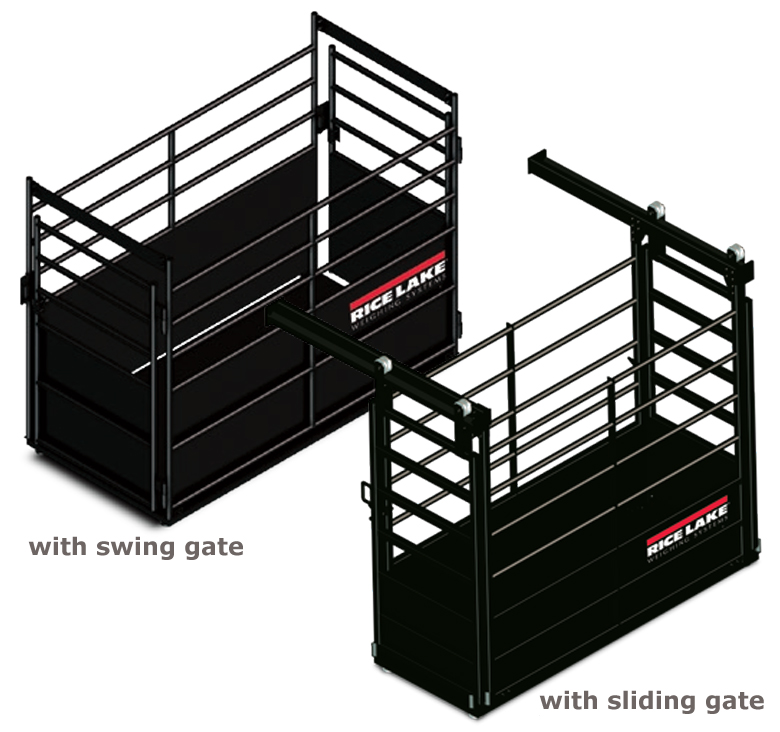

Select 226205 - 3 x 8 ft swing gate $5,850.00 226206 - 3 x 8 ft sliding gate $8,280.00 226207 - 4 x 8 ft swing gate $6,390.00 226209 - 4 x 8 ft sliding gate $8,820.00

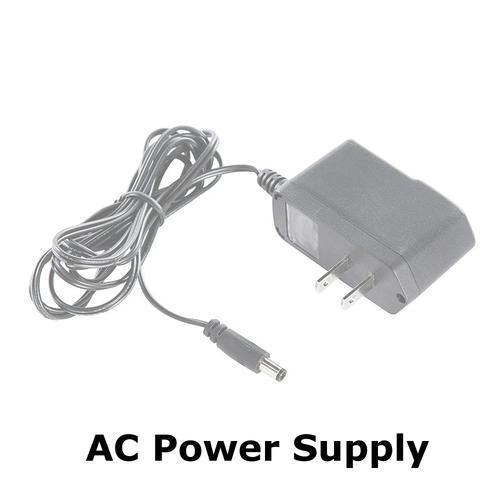

	Rice Lake 206433 External AC adapter , add $51.30

• Smooth deck instead of diamond safety tread plate
• Stainless steel load cells (RL32018S IP66) and hardware
• Stainless steel hermetically sealed load cells (RL32218S-HE IP69K) and hardware
• Angle iron bolted to scale for wood deck provisions (wood to be supplied by customer)
• Rubber mat 8 × 3?ft 8 × 4?ft 8 × 4?ft Price N/C Consult
• 380 universal segmented LCD display, battery powered, Synergy Series with 4-pin quick connect ag scale cable
• Floor anchor plates, mild steel (set of 2)
• Floor anchor plates, stainless steel (set of 2)

Accuracy requires a specialized foot Adjustable SUREFOOT™ support feet incorporate stainless steel top plates and neoprene bases. This unique combination decreases extraneous forces on the load cell, resulting in superior accuracy and repeatability

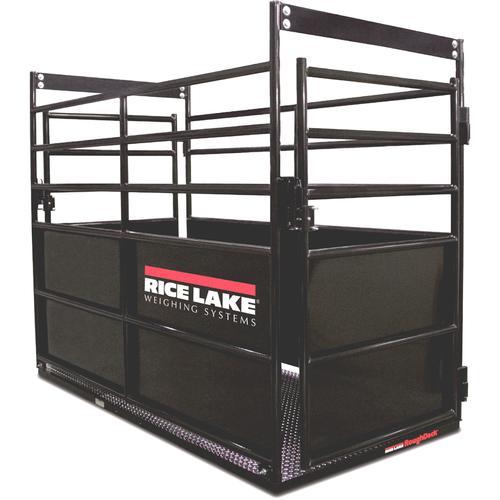

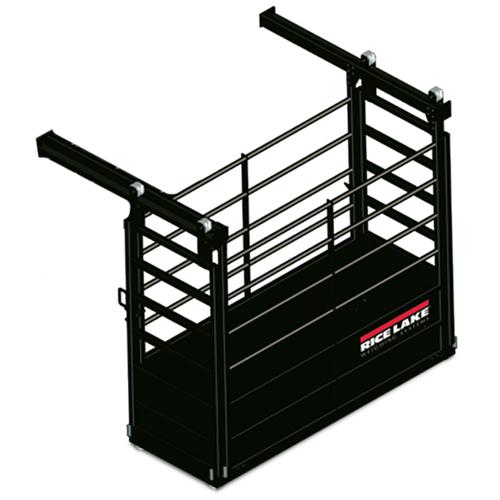

The RoughDeck SLV single animal livestock scale is a durable solution for weighing sheep, goats, cattle, hogs, horses and more. Depending on rancher needs, the SLV scale can be customized for retrofit or unique applications.

The diamond treadplate and rigid structural steel channel frame provide durability for weighing. The NEMA Type 4x stainless steel side-access junction box is well-protected and does not need a quick connector.

Equipped with four adjustable stainless steel SUREFOOT™ support feet and a SURVIVOR® EL147HE hostile environment load cell cable, this livestock scale can fit into any environment needed to weigh a variety of livestock. With four alloy steel load cells, the digital livestock scale provides quick and reliable measurements.

• Mild steel construction
• Rugged diamond safety treadplate deck
• Rigid structural steel channel frame
• NEMA Type 4X stainless steel side-access junction box without quick connector
• Signal trim summing board
• Four adjustable stainless steel SUREFOOT™ support feet
• SURVIVOR® EL147HE hostile environment load cell cable
• Four alloy steel load cells

Model	226205	226206	226207	226209
Price	$5,850.00 Add to Cart	$8,280.00 Add to Cart	$6,390.00 Add to Cart	$8,820.00 Add to Cart
Capacity x Readability	4000 x 1 lb	4000 x 1 lb	4000 x 1 lb	4000 x 1 lb
Pan Size	3 x 8 ft		4 x 8 ft
Assembled with	racks swing gates kick plates	sliding gate deck racks gates kick plates	racks swing gates kick plates	sliding gate deck racks gates kick plates
Indicator	380 Synergy More Info
Interface	RS-232, USB
Legal for Trade	SLV base: NTEP CC 92-001A12 Class III 4,000d 380 Synergy NTEP CC 21-051
Power	Batteries: 4 Alkaline C-cell (not included) Optional: 115/230VAC to 12VDC adapter
Display	Six 1 in (25 mm) tall, LCD digits
Weight	1200 lb	1310 lb	1500 lb	1610 lb
