Rice Lake Roughdeck and iQUBE²® System Low-Profile Floor Scales

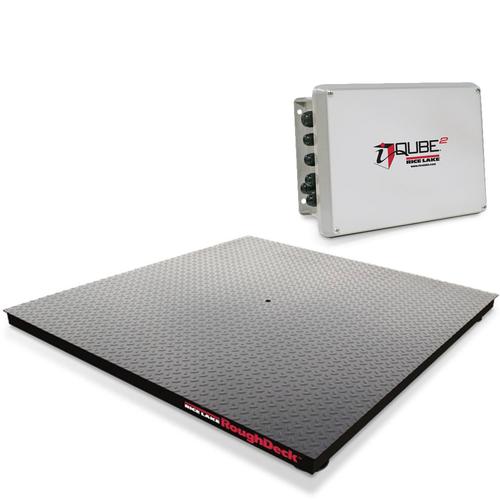

Base with iQUBE junction box Only Indicator Sold Separately		Have Questions? or email Us Our Staff will be glad to help Legal For Trade Selected Models Specifications Chart Please Call (800)832-0055 or Email Us for help Ordering this Scale

The iQUBE²® Junction Box

For mission-critical applications and unmatched performance, iQUBE² is the equipment of choice. Its high-speed ability to update up to 500 times per second on multi-channels makes it the fastest smart junction box available. Unmatched reaction time brings accuracy to new levels, increasing precision and profits.

Enhanced onboard diagnostics will identify noise, test for linearity and zero reference, and monitor drift. Diagnostics are enhanced by a unique load cell emulation feature which compensates for a failing load cell until a repair can be made.

• iQUBE2® board has four A/D channels
• Stainless steel or Fiberglass Reinforced Polyester (FRP), NEMA Type 4X polyester enclosure
• Supports networking up to four boards, for 16 A/D channels. Connection can be up to four separate platforms with a system total, or four separate scale systems
• Diagnostic routines for weighing errors and system health
• Cell tests for overloaded, underloaded, zero reference, drift, noise and unbalanced conditions
• Onboard status LEDs for communication and visual bi-color indication of cell health
• Cell emulator compensates for load cell failure until a repair can be made
• Cal-Match® algorithm automatically trims and calibrates the scale in one pass of test weights (stopping over each mount)
• Standard communication RS-232/RS-422 option card slot for fiber optic, Ethernet TCP/ IP or wireless TPC/IP
• Four digital I/O per card, for push button operation, set point control or cell status

Designed to enhance speed and performance, iQUBE² is the next generation of intelligent junction boxes. By taking standard j-box functions to a digital level, it offers more than any junction box you?ve ever known. iQUBE² has the unique ability to digitally monitor and communicate load cell performance, and when necessary will compensate for a failing load cell until repairs can be made. By creating a digital signal, iQUBE² provides unparalleled speed and communication, and is far more resistant to electrostatic discharge and transient damage from lightning strikes than a traditional scale system. iQUBE² is ideal for systems requiring single or multiple scales with multiple cells. From floor and hopper scales to large multi-deck truck scales, iQUBE² is the required solution for any mission-critical application.

Accuracy translates to profits Your scale controls either the quality or quantity of the product you are weighing. In other words, your scale accuracy is directly related to profits. Many factors can affect your scale accuracy, which can go unnoticed. iQUBE² monitors each load cell for weighing errors. Speed enhances precision

Faster data feedback improves the weight response efficiency of the HMI indicator. Whatever batching control application you are monitoring, iQUBE² gives you real-time data for precision control. Accurate targets can be achieved in fast-fill applications like asphalt, grain or chemicals where both speed and accuracy are required. Even though update speed is extremely fast, the accuracy is enhanced with an adaptive digital filter.

• The benefits of QUBE2 diagnostics iQUBE², when used with a diagnostic screen, displays and tracks cell performance, weight, dead load and current values for each load cell. The diagnostics system checks A/D, excitation, communication and load cell bridges.
• iQUBE2 Diagnostics iQUBE2 Tests for Return to Zero If any load cell in a scale system does not return to zero, it could be an indication of scale binding or a damaged load cell. A cell or scale that is binding could be zeroed and appear to work, but still not weigh correctly. The iQUBE² diagnostic data will troubleshoot these situations and pinpoint any problem areas.
• iQUBE2 Tests for Cell Balance Many factors influence scale linearity; however, when a scale is nonlinear, it usually isn?t noticed until inventory shortages have occurred. iQUBE² verifies linearity by monitoring load cell tolerances.

The RoughDeck Floor Scale

The RoughDeck HPs best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 10,000 pound capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HPs NEMA Type 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales

• Heavy-duty industrial design
• Structural steel channel frame
• 4 NTEP Certified alloy steel, shear beam load cells
• 20 ft SURVIVOr EL147HE hostile environment load cell cable
• TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
• Side-access junction box
• Rugged diamond deck safety treadplate
• 4 adjustable stainless steel SUREFOOT? support feet
