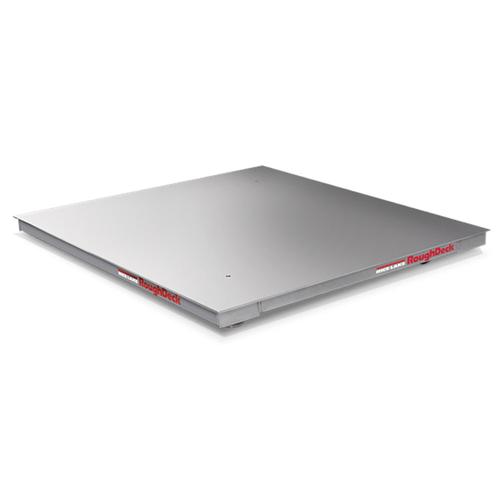

Rice Lake Roughdeck SS Stainless Steel Floor Scales
The RoughDeck SS floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel. Applications include dry chemical operations, fertilizer plants and other industries which require non-washdown corrosion resistance.
Rice Lake Scales > Industrial Scales > Floor Scales

Rice Lake SS-25X25-2K Roughdeck SS Stainless Steel Floor Scale - Legal for Trade - Base Only

Base Only Indicator Sold Separately


Legal For Trade Selected Models	Canada Measurement Selected Models

Specifications Chart Please Call (800)832-0055
or Email Us for help
Ordering this Scale

Factory Installed Options Must be added with scale
Rice Lake Floor anchor plates, Stainless Steel (set of 2) , Add $42.50
Rice Lake Roughdeck HP 4 drilled deck holes for scale height adjustment , Add $40.00
Stainless steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware , Add $200.00
Rice Lake Roughdeck SS Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel FM approved load cells and hardware , Add $500.00
Rice Lake Roughdeck SS Top Access Junction Box , Add $100.00

The Toughest, Most Accurate Floor Scale Available

The RoughDeck SS floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel. Applications include dry chemical operations, fertilizer plants and other industries which require non-washdown corrosion resistance.

Indicator Column\Stand
	Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch, add $268.60

Single Side Bumper Guard
	Rice Lake RoughDeck SS/HE Bumper Guard Option A 2.5 ft, add $196.00
	Rice Lake RoughDeck SS/HE Bumper Guard Option A 3.0 ft, add $232.00
	Rice Lake RoughDeck SS/HE Bumper Guard Option A 4.0 ft, add $304.15
	Rice Lake RoughDeck SS/HE Bumper Guard Option A 5.0 ft, add $379.20
	Rice Lake RoughDeck SS/HE Bumper Guard Option A 6.0 ft, add $454.25
	Rice Lake RoughDeck SS/HE Bumper Guard Option A 7.0 ft, add $529.30

Rice Lake Roughdeck SS Stainless Steel Floor Scales
Price From: $2425.50

Select Indicator (Must be added with scale)
	Rice Lake 381 Synergy 215695 LCD Digital Weight Legal for trade IP54 AA Alkaline Battery, add $256.75
	Rice Lake 381 Synergy 215696 LCD Digital Weight Legal for trade IP66 NiMH Battery, add $375.25
	Rice Lake 120 131923 LED Digital Weight Legal for Trade Indicator, add $359.45
	Rice Lake 120 Plus 103632 LCD Digital Weight Legal for trade Indicator, add $470.05
	Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V, add $572.75
	Rice Lake 480 LED Legend Series Digital Weight Indicator, add $691.25
	Rice Lake 482 LCD Legend Series Digital Weight Indicator, add $791.70
	Rice Lake 882IS Intrinsically-Safe 195091 Digital Weight Indicator with Tilt Stand - Power Sold Separate, add $1,189.50
For a full list of Rice Lake Indicators Click Here

Options Must be added with scale

(Some Factory Installed)

Ramps
	Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 2.5 ft x 3 ft x 3.5 in, add $939.90
	Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 3 ft x 3 ft x 3.5 in, add $939.90
	Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 4 ft x 3 ft x 3.5 in, add $1,146.60
	Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 2.5 ft x 4 ft x 3.5 in, add $1,045.20
	Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 3 ft x 4 ft x 3.5 in, add $1,146.60
	Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 4 ft x 4 ft x 3.5 in, add $1,560.00
	Rice Lake Roughdeck SS and HE Stainless Steel Access Ramp 5 ft x 4 ft x 3.5 in, add $1,762.80

Pit Frame
	Rice Lake 18758 RoughDeck SS and HE 2.5 ft x 2.5 ft Pit Frame (1,000lb - 10,000lb) SST , add $1,189.50
	Rice Lake 18760 RoughDeck SS and HE 3 ft x 3 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,189.50
	Rice Lake 18762 RoughDeck SS and HE 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,478.10
	Rice Lake 18764 RoughDeck SS and HE 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,829.10
	Rice Lake 18766 RoughDeck SS and HE 4 ft x 5 ft Pit Frame (1,000lb - 10,000lb) SST, add $1,657.50
	Rice Lake 18772 RoughDeck SS and HE 5 ft x 7 ft Pit Frame (1,000lb - 10,000lb) SST, add $2,176.20

A rigid six-inch, 304 stainless steel channel frame and smooth top plate provide a durable scale deck. For added corrosion resistance, four NTEP Certified stainless steel load cells, a stainless steel TuffSeal summing junction box and EL147HE hostile environment load cell cable complete the RoughDeck SS package.

The channel frame provides added protection by enclosing the load cells, cable and junction box inside, away from chemicals and other industrial elements.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

Rugged non-corrosive design
304 stainless steel construction
Rigid stainless steel channel frame
4 stainless steel NTEP Certified shear-beam load cells
20ft of SURVIVOr EL147HE hostile environment load cell cable
Side access junction box
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
Smooth stainless steel deck
4 adjustable stainless steel SUREFOOT? support feet

Model	SS-25X25-2K	SS-3X3-1K	SS-3X3-2K	SS-4X4-1K	SS-4X4-5K	SS-4X4-10K	SS-4X5-5K	SS-4X5-10K	SS-5X5-5K	SS-5X5-10K	SS-5X7-5K	SS-5X7-10K
	18663	46239	18664	46241	18665	18666	18667	18668	18671	18672	18675	18676
	$2,425.50	$2,791.25	$2,791.25	$4,004.00	$4,004.00	$5,472.00	$4,573.80	$6,395.40	$5,802.60	$7,459.40	$7,687.40	$9,834.40
Size	2.5 ft x 2.5 ft x 3.5 in	3 ft x 3 ft x 3.5 in	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 5 ft x 3.5 in	4 ft x 5 ft x 3.5 in	5 ft x 5 ft x 3.5 in	5 ft x 5 ft x 3.5 in	5 ft x 7 ft x 3.5 in	5 ft x 7 ft x 3.5 in
Capacity x Readability	2000 x 0.5 lb	1000 x 0.2 lb	2000 x 0.5 lb	1000 x 0.2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb
Capacity x Readability	1000 x 0.2 kg	500 x 0.1 kg	1000 x 0.2 kg	500 x 0.1 kg	2500 x 0.5 kg	5000 x 1 kg	2500 x 0.5 kg	5000 x 1 kg	2500 x 0.5 kg	5000 x 1 kg	2500 x 0.5 kg	5000 x 1 kg
Legal For Trade	NTEP CC 92-001, Class III 5,000d Measurement Canada AM-4827, Class III 5,000d AM-5301
End Load Capacity:	200% full scale at 1,000 lb - 100% full scale at 2,000 lb and 5,000 lb - 80% full scale at 10,000 lb
Junction Box	TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
Access	Side access junction box
Construction	304 stainless steel
Cable	20ft SURVIVOr EL147HE hostile environment load cell cable
Warranty	RoughDeck SS weldment five years, load cells two years, all other components one yeaR
