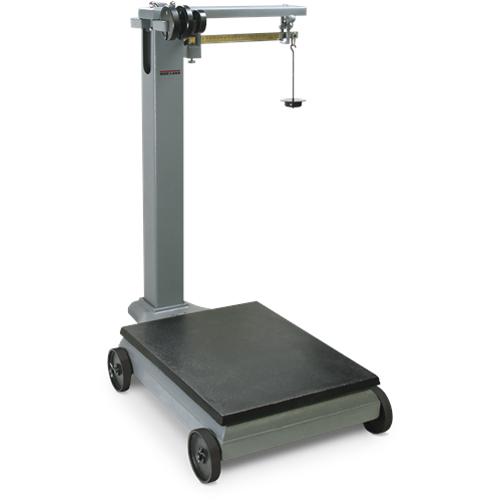

Rice Lake RL1200 Portable Beam Scale

Portable beam scales are well known for time-tested reliability and performance, and Rice Lakes RL1200 Series is designed to complement these demands. For agriculture, warehousing, or general industrial weighing, these cost-effective, cast-iron designs deliver the ultimate in portability and durability.

Well suited to intrinsically safe applications or areas without access to electricity, this all-mechanical design is available in either metric or avoirdupois (lb). The avoirdupois model offers a capacity of 1,000 pounds and is also NTEP Certified, making it suitable for a wide range of commercial and Legal for Trade applications.

• Construction: Cast-iron platform, base and levers
• Poise: Steel locking screw provided
• Platform Dimensions: (L x W) 24 in x 18 in
• Capacity: 1000 lb
• Approvals: NTEP Certified 93-004 Class III 2,000 d
• Warranty: One-year Limited Warranty

• NTEP Certified
• Cast iron construction
• Locking screw knob on poise
• Slotted cast iron counterpoise weights, marked to scale capacity
• Heavy-duty wheels for portability
• Weights and hanger
• Nickel plated steel beam with engraved brass insert

Model	RL1200	RL1200 480	RL1200 480 Plus	RL1200 380 Synergy
	157982	169187	169188	216112
	$799.00 Add to Cart	$2,052.00 Add to Cart	$2,052.00 Add to Cart	$1,789.00 Add to Cart
Capacity	1000 lb x 0.5 lb	1000 lb x 0.5 lb 500 kg x 0.2kg	1000 lb x 0.5 lb 500 kg x 0.2kg	1000 lb x 0.5 lb 500 kg x 0.2kg
Size	24 x 18 in	24 x 18 in	24 x 18 in	24 x 18 in
Legal For Trade	NTEP CC 93-004, Class III, 2,000 d			NTEP CC 21-051, Class III, 10,000d
	YES	YES	YES	YES
Warranty (limited)	One Year
TYPE	Mechanical	Digital	Digital	Digital
Indicator	-	482	482-Plus	380

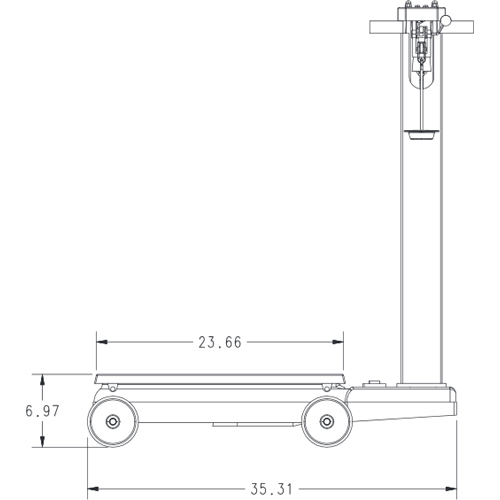

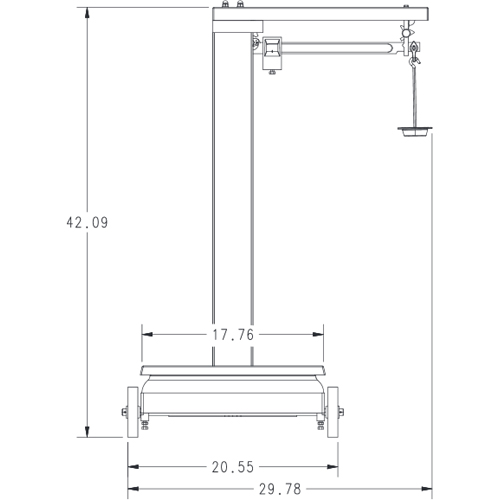

Dimensions Mechanical

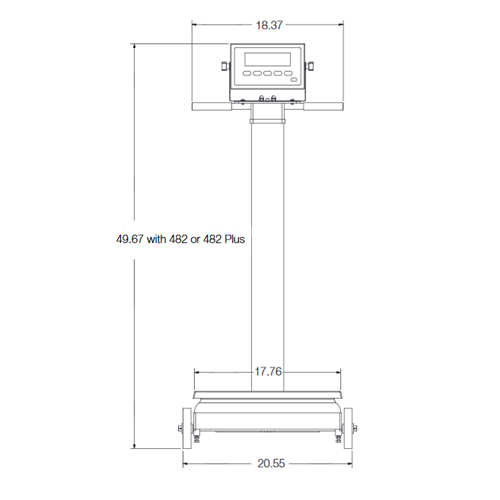

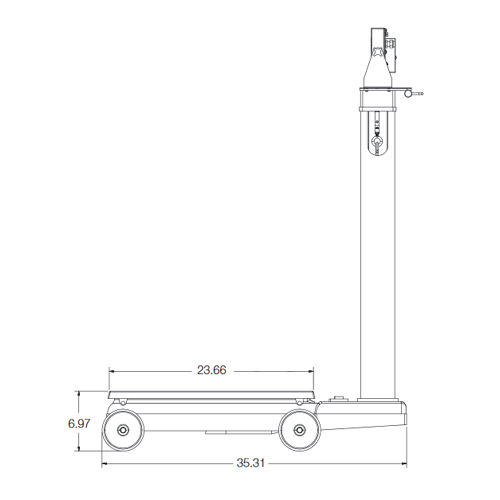

Dimensions Digital

Rice Lake 482 and Rice Lake 482 PLUS

482

482 PLUS

Advance to Rice Lake?s Legend Series?classic Rice Lake quality and design with innovative features for tomorrow. As the flagship of Rice Lake?s Legend Series, the 480 and 482 digital weight indicators have been designed to provide the very best in performance and value.

With stainless steel enclosures and advanced gasket systems, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Advanced circuitry also withstands electrical noise, power disturbances and transient spikes that are common to industrial applications.

Rice Lake?s Legend Series is the industry?s first choice for readability. With a choice between large, ultra-bright LED or LCD displays, 0.8 inch digits and sharp contrast, these indicators provide superior display visibility. The 480?s six-button tactile keypad allows for quick navigation and programming. Advance to the Plus Series for a full numeric keypad.

Connect to a printer, PC or remote display and make use of configurable print formats, time and date function, and local/remote capability. A standard lithium ion rechargeable battery allows operation from remote locations, such as a portable work station.

• LED or LCD backlit display, 0.8 in (20 mm), 6-digit, 7-segment
• Time and date, battery backed
• Local/remote operation
• Numeric keypad (480 Plus/482 Plus)
• Keyed entries for tare and setpoint values (480 Plus/482 Plus)
• 2 independent serial ports, RS-232 and 20 mA
• Programmable ticket formats for gross, net, accumulator and setpoints
• 5 continuous stream formats
• Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
• 8 setpoints, sequenced batch engine
• Configurable with Revolution® software
• Please call (800)832-0055 for Models with analog, relay, USB or Ethernet outputs

Rice Lake 380

380

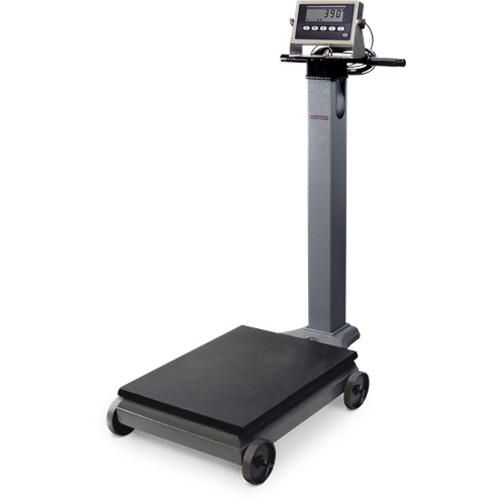

Portable beam scales are well known for time-tested reliability and performance, and Rice Lake's RL1200 Series is designed to complement these demands. For agriculture, warehousing, or general industrial weighing, these cost-effective, cast-iron designs deliver the ultimate in portability and durability. NTEP Certified and suitable for Legal for Trade applications, the RL1200 EM offers the added convenience of the 380 Synergy digital weight display. The battery-powered indicator lets users easily read weight values, zero, tare, toggle between units and transmit weight to an optional printer

216112 Scale
• NTEP Certified
• 1,000 lb capacity
• Heavy-duty wheels and handle for portability

380 Indicator
• LCD display
• Alkaline battery powered
• Push-button and keyed tare
• Two communication ports
• Five tactile buttons
• Configurable print formats
