Rice Lake BenchPro Legal for Trade Shipping Scales

Manufacturers

Rice Lake BenchPro Legal for Trade Shipping Scales
The BenchPro Series family of digital bench scales is ideal for many diverse industries and markets around the world. As a general purpose scale, the BenchPro offers many benefits, including the ability to tare containers and battery operation. Because of these extra features not typically found in traditional shipping, point of sale and postal scales
Rice Lake Scales > Shipping Scales

Rice Lake BenchPro Legal for Trade Shipping Scales

Have Questions?

email Us

Our Staff will be glad to help


Legal For Trade	Canada Measurement

Specifications Charts

6 x 10 in
10 x 10 in
12 x 14 in

12 x 16 in
18 x 18 in
20 x 20 in
24 x 24 in

The BenchPro Series family of digital bench scales is ideal for many diverse industries and markets around the world. As a general purpose scale, the BenchPro offers many benefits, including the ability to tare containers and battery operation. Because of these extra features not typically found in traditional shipping, point of sale and postal scales, the BenchPro may be used for additional applications including retail, restaurant and deli, manufacturing, inventory control and more. Standard Features

Simple operation, easy to set-up, configure and calibrate
Large product offering to suite many stand alone and PC Interface applications
Large six-digit backlight LCD display with 1in (29mm) characters
Operator Display-Four button touch key panel with Units, Tare, On/Off, F1 selection. Designed with heavy duty tempered glass keypad which provides increased protection against scratches & drops, repels water, dust and oil
Customer Display-optional display with no keyboard
Alternate Calibration Points – Perform calibration using weights less than full capacity
Units of Measure – Model/Capacity dependent provides selectable alternate modes of measurement in lb, kg, oz, grams or lb:oz (for use as postal scale only)
Powered USB HID Point of Sale Interface – Plug and Play USB Interface, provides power and communications to iDimension Series and popular shipping software programs like FedEx Ship Manager and UPS Worldship
Nine pin RS-232 Interface for legacy software program
Interface protocols include USB HID POS, SMA, NCI, 3835, ECR, 8213 and EH. Other Protocols may be available Please Call/Email (800-832-0055/[email protected]) us to check any other Protocol
Four AA alkaline battery operation for portability, BP 1214 Series only
Display Mounting – Front base mount as standard with optional desktop pole mount and column base mount (BP 1214 Series Only)
Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved

Rice Lake BenchPro Legal for Trade Shipping Scales

Model

Optional

	Rice Lake 183103 16 in H Table Top Display Post Only (indicator sold separately), add $172.00
	Rice Lake 174783 Column Bracket and Post for Model BP1214 only, add $42.50
	Rice Lake 180901 2nd Remote Customer Display, BenchPro Series with 18 in cable and capacity labels, add $61.20
	Rice Lake 174784 2nd Remote Operator Display, Bench Pro Series with 18 in cable and capacity labels, add $74.80
	Rice Lake 179191 2nd Remote Operator Display, Bench Pro Series with 18 in cable and capacity labels, add $61.20
	Rice Lake 178501 USB-RS-232 Serial Adapter, add $57.00

Replacement Parts

	Rice Lake 174786 Replacement USB Cable for BenchPro Series, add $8.50
	Rice Lake 174782 Replacement AC Power Supply with Cable for BenchPro Series, add $42.50
	Rice Lake 64794 Replacement RS-232 Cable for BenchPro Series, add $62.10
	Rice Lake 179191 Replacement Primary Operator Display, BenchPro Series with 18 in cable, Models BP 0610, BP 1010, BP 1216, add $68.40

6 x 10 in, 10 x 10 in, 12 x 14 in Platters
Model	BP-0610-6R	BP-0610-15R	BP-1010-6R	BP-1010-15R	BP-1214-6R	BP-1214-15R	BP-1214-75S	BP-1214-75SPL	BP-1214-75SMS
Model	182374	182375	182376	182377	179733	179732	174879	174880	184585
Price	$576.70	$576.70	$576.70	$576.70	$452.28	$452.28	$493.75	N/A	$572.75
Capacity x Readability	15 x 0.005 lb	30 x 0.01 lb	15 x 0.005 lb	30 x 0.01 lb	15 x 0.005 lb	30 x 0.01 lb	150 x 0.05 lb	150 x 0.05 lb	150 x 0.05 lb
	15 lb x 0.1 oz	30 lb x 0.2 oz	15 lb x 0.1 oz	30 lb x 0.2 oz	15 lb x 0.1 oz	30 lb x 0.2 oz	-	-	-
	240 x 0.1 oz	480 x 0.2 oz	240 x 0.1 oz	480 x 0.2 oz	240 x 0.1 oz	480 x 0.2 oz	-	-	-
	6 x 0.002 kg	15 x 0.005 kg	6 x 0.002 kg	15 x 0.005 kg	6 x 0.002 kg	15 x 0.005 kg	75 x 0.02 kg	75 x 0.02 kg	75 x 0.02 kg
	6000 x 2 g	-	6000 x 2 g	-	6000 x 2 g	-	-	-	-
Legal For Trade	NTEP COC # 17-002 Canada Weights and Measures: AM - 6050
Pan Size	6 x 10 in		10 x 10 in		12 x 14 in
Platter Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Plastic	Painted Mild Steel
Internal Resolution	500,000 internal count minimum
Overload Protection	Corner & center overload protection, provided on all models
Power	In-line Power Supply Input: 100-240 VAC, +10% -15% 3-wire w/ground Standard Terminated with USA 3 prong plug Output: 12V at .1 Amps DC minimum Frequency: 50/60 Hz +/-3 Hz, Standard Approvals: UL, CE, EN CU
Battery Type	-				Four AA alkaline batteries, 6V, with LowBat Indication at 4.3 volts (not included)
Battery Life	-				Non-backlight and software control for sleep mode, 250 hrs or 80hrs continuous use, power consumption at 68mA. Backlight and software control for sleep mode, 80 hrs or 50hrs continuous use, power consumption at 75mA
Construction	Powder coat painted mild steel base plate and load bridge with optional weight platters				DieCast Aluminum Loadbride and Base Housing with optional weight platters
Display	Minimum key press life of 500,000 cycles. ABS plastic housing with 6 annunciators to indicate zero, Gross/Bruto, Net, W1/W2/W3 mulit-range or multi-interval weight ranges. Dimensions 5.25in (133.4mm) L x 2.21in (56.1mm) W x 1.09in (27.76mm) Depth. Primary display includes an 18in (45.72 cm) cable, the remote operator display includes a 72in (182.88 cm) cable with RJ-45 connection scale
RS-232 Cable	10ft DB 9-pin male to female, straight pass through and null mode
USB Cable	6 inch (116.84mm) A/B type USB cable
USB HID	USB 2.0 full speed; Vendor Id: 1C19; Product Id: 0002
Cleaning	Exterior surfaces are capable of withstanding mild soap and water wipe-down with a wet cloth
Interface Protocols Available	USB HID POS, SMA, ECR, NCI, Toshiba 4690 USB available upon request						USB HID POS, SMA, NCI
Warranty	Two year limited warranty
Est. Weight	12 lb	12 lb	15 lb	15 lb	17 lb	17 lb	17 lb	17 lb	17 lb

12 x 16 in Platter
Model	BP-1216-50S	BP-1216-50SMS	BP-1216-50SBT	BP-1216-50ROL	BP-1216-75S	BP-1216-75SMS	BP-1216-75SBT	BP-1216-75SROL
Model	182403	182404	182405	182406	182993	182994	182995	182996
Price	$885.30	$885.30	$1,064.70	$1,006.20	$885.30	$633.25	$1,064.70	$1,006.20
Capacity x Readability	100 x 0.02 lb	100 x 0.02 lb	100 x 0.02 lb	100 x 0.02 lb	150 x 0.05 lb	150 x 0.05 lb	150 x 0.05 lb	150 x 0.05 lb
Capacity x Readability	50 x 0.01 kg	50 x 0.01 kg	50 x 0.01 kg	50 x 0.01 kg	75 x 0.02 kg	75 x 0.02 kg	75 x 0.02 kg	75 x 0.02 kg
Legal For Trade	NTEP COC # 17-002 Canada Weights and Measures: AM - 6050
Pan Size	12 x 16 in
Platter Type	Stainless Steel	Painted Mild Steel	Ball Top	Roller Conveyor	Stainless Steel	Painted Mild Steel	Ball Top	Roller Conveyor
Internal Resolution	500,000 internal count minimum
Overload Protection	Corner & center overload protection, provided on all models
Power	In-line Power Supply Input: 100-240 VAC, +10% -15% 3-wire w/ground Standard Terminated with USA 3 prong plug Output: 12V at .1 Amps DC minimum Frequency: 50/60 Hz +/-3 Hz, Standard Approvals: UL, CE, EN CU
Construction	DieCast Aluminum Loadbride and Base Housing with optional weight platters
Display	Minimum key press life of 500,000 cycles. ABS plastic housing with 6 annunciators to indicate zero, Gross/Bruto, Net, W1/W2/W3 mulit-range or multi-interval weight ranges. Dimensions 5.25in (133.4mm) L x 2.21in (56.1mm) W x 1.09in (27.76mm) Depth. Primary display includes an 18in (45.72 cm) cable, the remote operator display includes a 72in (182.88 cm) cable with RJ-45 connection scale
RS-232 Cable	10ft DB 9-pin male to female, straight pass through and null mode
USB Cable	6 inch (116.84mm) A/B type USB cable
USB HID	USB 2.0 full speed; Vendor Id: 1C19; Product Id: 0002
Cleaning	Exterior surfaces are capable of withstanding mild soap and water wipe-down with a wet cloth
Interface Protocols Available	USB HID POS, SMA, NCI				USB HID POS, SMA, NCI, 3835, EH, 8213
Warranty	Two year limited warranty
Est. Weight	31 lb	31 lb	37 lb	41 lb	31 lb	31 lb	37 lb	41 lb

18 x 18 in Platter
Model	BP 1818-50S	BP 1818-50SBT	BP 1818-75S	BP 1818-75SMS	BP 1818-75SBT	BP 1818-75ROL	BP 1818-150S	BP 1818-150SBT	BP 1818-150ROL
Model	182391	182393	182378	182379	182380	182381	182382	182384	182386
Price	$1,162.20	$1,431.30	$1,162.20	$930.75	$1,431.30	$1,287.00	$1,162.20	$1,431.30	$1,287.00
Capacity x Readability	100 x 0.02 lb	100 x 0.02 lb	150 x 0.05 lb	150 x 0.05 lb	150 x 0.05 lb	150 x 0.05 lb	300 x 0.1 lb	300 x 0.1 lb	300 x 0.1 lb
Capacity x Readability	50 x 0.01 kg	50 x 0.01 kg	75 x 0.02 kg	75 x 0.02 kg	75 x 0.02 kg	75 x 0.02 kg	150 x 0.05 kg	150 x 0.05 kg	150 x 0.05 kg
Legal For Trade	NTEP COC # 17-002 Canada Weights and Measures: AM - 6050
Pan Size	18 x 18 in
Platter Type	Stainless Steel	Ball Top	Stainless Steel	Painted Mild Steel	Ball Top	Roller Conveyor	Stainless Steel	Ball Top	Roller Conveyor
Internal Resolution	500,000 internal count minimum
Overload Protection	Corner & center overload protection, provided on all models
Power	In-line Power Supply Input: 100-240 VAC, +10% -15% 3-wire w/ground Standard Terminated with USA 3 prong plug Output: 12V at .1 Amps DC minimum Frequency: 50/60 Hz +/-3 Hz, Standard Approvals: UL, CE, EN CU
Construction	DieCast Aluminum Loadbride and Base Housing with optional weight platters
Display	Minimum key press life of 500,000 cycles. ABS plastic housing with 6 annunciators to indicate zero, Gross/Bruto, Net, W1/W2/W3 mulit-range or multi-interval weight ranges. Dimensions 5.25in (133.4mm) L x 2.21in (56.1mm) W x 1.09in (27.76mm) Depth. Primary display includes an 18in (45.72 cm) cable, the remote operator display includes a 72in (182.88 cm) cable with RJ-45 connection scale
RS-232 Cable	10ft DB 9-pin male to female, straight pass through and null mode
USB Cable	6 inch (116.84mm) A/B type USB cable
USB HID	USB 2.0 full speed; Vendor Id: 1C19; Product Id: 0002
Cleaning	Exterior surfaces are capable of withstanding mild soap and water wipe-down with a wet cloth
Interface Protocols Available	USB HID POS, SMA, NCI, 3835, EH, 8213
Warranty	Two year limited warranty
Est. Weight	63 lb	73 lb	63 lb	63 lb	73 lb	77 lb	63 lb	73 lb	77 lb

20 x 20 in and 24 x 24 in Platters
Model	BP 2020-150S	BP 2020-150SMS	BP 2020-150SBT	BP 2020-150ROL	BP 2424-150S	BP 2424-150SMS	BP 2424-150SBT	BP 2424-150ROL
Model	182395	182396	182397	182398	182399	182400	182401	182402
Price	$1,302.60	$1,407.90	$1,587.30	$1,379.82	$1,435.20	$1,563.90	$1,747.20	$1,512.42
Capacity x Readability	300 x 0.1 lb	300 x 0.1 lb	300 x 0.1 lb	300 x 0.1 lb	300 x 0.1 lb	300 x 0.1 lb	300 x 0.1 lb	300 x 0.1 lb
Capacity x Readability	150 x 0.05 kg	150 x 0.05 kg	150 x 0.05 kg	150 x 0.05 kg	150 x 0.05 kg	150 x 0.05 kg	150 x 0.05 kg	150 x 0.05 kg
Legal For Trade	NTEP COC # 17-002 Canada Weights and Measures: AM - 6050
Pan Size	20 x 20 in				24 x 24 in

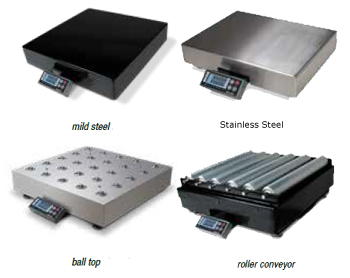

Platter Type	Stainless Steel	Painted Mild Steel	Ball Top	Roller Conveyor	Stainless Steel	Painted Mild Steel	Ball Top	Roller Conveyor
Internal Resolution	500,000 internal count minimum
Overload Protection	Corner & center overload protection, provided on all models
Power	In-line Power Supply Input: 100-240 VAC, +10% -15% 3-wire w/ground Standard Terminated with USA 3 prong plug Output: 12V at .1 Amps DC minimum Frequency: 50/60 Hz +/-3 Hz, Standard Approvals: UL, CE, EN CU
Construction	DieCast Aluminum Loadbride and Base Housing with optional weight platters
Display	Minimum key press life of 500,000 cycles. ABS plastic housing with 6 annunciators to indicate zero, Gross/Bruto, Net, W1/W2/W3 mulit-range or multi-interval weight ranges. Dimensions 5.25in (133.4mm) L x 2.21in (56.1mm) W x 1.09in (27.76mm) Depth. Primary display includes an 18in (45.72 cm) cable, the remote operator display includes a 72in (182.88 cm) cable with RJ-45 connection scale
RS-232 Cable	10ft DB 9-pin male to female, straight pass through and null mode
USB Cable	6 inch (116.84mm) A/B type USB cable
USB HID	USB 2.0 full speed; Vendor Id: 1C19; Product Id: 0002
Cleaning	Exterior surfaces are capable of withstanding mild soap and water wipe-down with a wet cloth
Interface Protocols Available	USB HID POS, SMA, NCI, 3835, EH, 8213
Warranty	Two year limited warranty
Est. Weight	76 lb	76 lb	88 lb	94 lb	131 lb	131 lb	131 lb	131 lb
