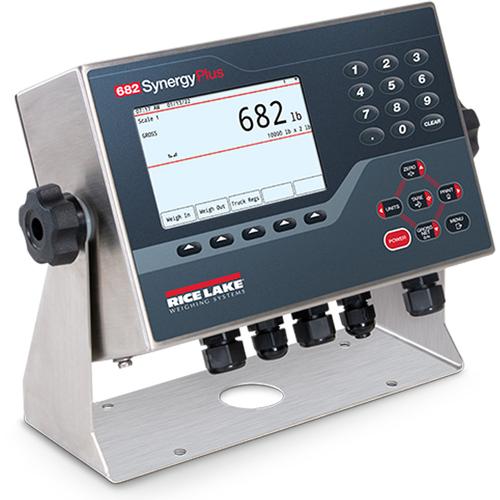

Rice Lake Weighing Systems' 682 Synergy Plus Series digital weight indicator is an advanced solution with the simplicity of a basic weight indicator.
The durable 682 Synergy Series indicator is constructed with 304 stainless steel and has an IP69 ingress rating to stand up to high-pressure, hightemperature washdowns found in food processing and other environments. The 682 indicator has a bright five-inch color LCD screen and configurable softkeys for an interface that is easy to use.
Advanced Connectivity
The 682 indicator comes standard with advanced communications to take on a wide range of applications. Connections to external devices and networks are available through RS-232 and RS-485 serial ports, USB, Ethernet, fieldbus, Wi-Fi and Bluetooth®. This digital weight indicator also has a built-in web server for easy remote monitoring and process control.
Truck Weighing
The 682 indicator has an integrated truck in/out mode specifically
designed for vehicle scale applications. This mode stores the
transaction after each weigh-out with truck ID, gross, tare and net
weights. Transactions may be printed or cleared at any time.
STANDARD FEATURES
- Graphical, LCD color display with configurable softkeys
- Numeric, tactile keypad for scale operations, numeric entry and navigation
- Multi-language operation and text entry
- Formattable tickets
- Battery backed time and date
- Multiple communication options
- Fieldbus communication using Rice Lake’s SCT-2200 modules and RS-485 port
- Built-in web server for remote access, systems integration and data monitoring
- Built-in truck in/out application
- Stainless steel IP69 enclosure
- Four onboard configurable digital I/O points, TTL logic
- Local/remote
OPTIONS
- Analog output: 16-bit resolution, 0-10? VDC, 0-20?mA, 4-20?mA
- Relay card
- Dual serial card
- RJ45 Ethernet connector
| Model with US Plug |
193155 |
207354 |
$854.10
|
$971.10
|
| Model with EU Plug |
193156
| 207355 |
$854.10
|
$971.10
|
| Model with UK Plug |
207348 |
207356 |
$854.10
|
$971.10
|
| Model with AUS Plug |
207349 |
207357 |
$854.10
|
$971.10
|
| Model with 9-36 VDC |
193157 |
- |
$939.90
|
- |
| With External RJ45 Connector (IP66) |
- |
YES |
| RATING/MATERIAL |
IP69 (IP66 with RJ45 option)
AISI 304 Stainless Steel |
| Legal For Trade |
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121, Class III/IIIHD, 10,000d
OIML |
| POWER |
Line Voltage: 100-240 VAC, 50-60Hz
Optional: 9-23 VDC |
| POWER CONSUMPTION |
~3.2W (AC) with one 350 ohm load cell, 15W max; 4W with 4-350 ohm load cells or 8-700 ohm load cells |
| EXCITATION VOLTAGE |
10 VDC (+ 5 VDC), 8 x 350 ohm or 16 x 700 ohm load cells |
| ANALOG SIGNAL INPUT RANGE |
-5 mV to +70 mV |
| ANALOG SIGNAL SENSITIVITY |
0.3 µV/graduation minimum
1 µV/graduation recommended |
| A/D SAMPLE RATE |
6.25-120 Hz, software selectable |
| RESOLUTION |
Internal: 8,000,000 counts
Display: 1,000,000 |
| SYSTEM LINEARITY / PI RATING |
Within 0.01% full scale |
| DIGITAL I/O |
Four configurable I/O - 5V logic |
| COMMUNICATION PORTS |
Two RS-232 (three-wire)
RS-485/422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)
Wi-Fi
Bluetooth® |
| STATUS ANNUNCIATORS |
Zero, Gross/Net, Tare, Wi-Fi, Bluetooth® |
| DISPLAY |
Five-inch LCD, 800 x 480 pixel, 500 NIT |
| KEYS/BUTTONS |
Flat membrane panel, tactile feel 18 buttons plus 5 softkeys and power
|
| TEMPERATURE RANGE |
Legal: 14oF to 104oF (-10oC to 40oC)
Industrial: 14oF to 122oF (-10oC to 50oC) |

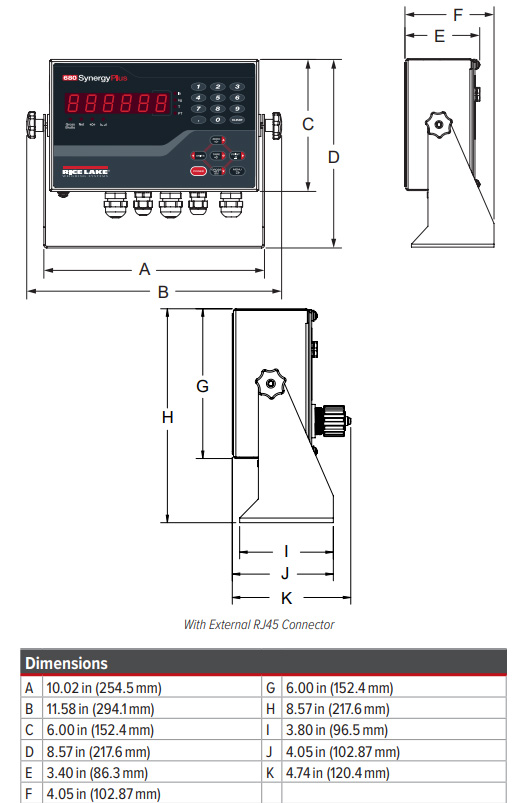

| DIMENSIONS (W X H X D): |
11.6 x 8.6 x 4.0 in (29.47 x 21.85 x 10.16 cm)
With RJ45 option: 11.6 x 8.6 x 4.5 in (29.47 x 21.85 x 11.43 cm) |
| WEIGHT |
6.25 lb (3 kg) |
| WARRANTY |
Two-year limited warranty |
| Approvals |
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121, Class III/IIIHD, 10,000d
OIML pending
EU-NAWI pending
cULus
CE
UKCA |
|
