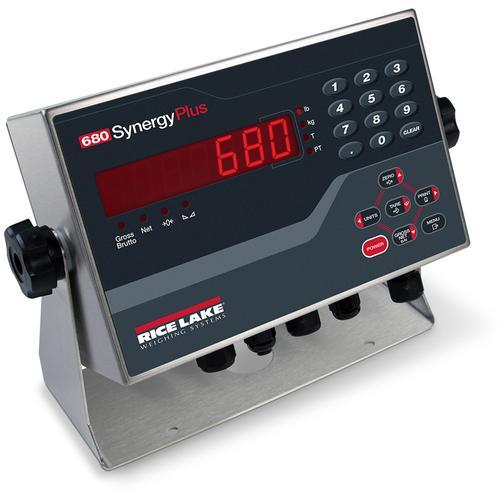

The Next Generation of Configurable Indicators
Rice Lake’s configurable 680 Synergy Series indicator combines powerful features found in advanced instrumentation with easy-to-use functions of more basic indicators. Designed with the customer in mind, the 680 is suitable for real-world, industrial environments. Tackle general purpose weighing, straightforward automation and a wide range of applications with the 680 Synergy Series.
Powerful Functions Backed by Advanced Communication
With eight setpoints and four digital I/O, the 680 can perform basic batching and filling operations. Design a multi-step procedure and run it automatically from beginning to end with the 680’s configurable batch engine. Users can also customize printed tickets with formattable gross, net, setpoint and auxiliary print formats. The 680 also supports multiple onboard communication options, cutting costs and providing connection to multiple devices such as printers and computers.
Durable, IP69K Construction
Constructed with durable 304 stainless steel and able to withstand harsh washdowns, the 680 maximizes process efficiency in virtually any environment or application. An IP69K rating ensures the 680 can stand up to high-pressure, high-temperature washdowns found in food processing environments.
STANDARD FEATURES
- Bright seven-digit, seven-segment LED display
- Battery backed time and date
- Full numeric keypad
- Three serial ports: two RS-232, one full duplex RS-485
- Numeric keyed entry allowed for tare and setpoint entry
- Formattable tickets
- Ethernet TCP/IP
- USB device
- Stainless steel IP69K enclosure
- Four onboard configurable digital I/O points, TTL logic
OPTIONS
- Analog Output: Type: Voltage or current output, 16-bit resolution
- Voltage Output: 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC
- Voltage Load Resistance: 1 KO minimum
- Current Output: 0-20?mA, 0-24 mA, 4-20 mA
- Current Loop Resistance: 1,000O maximum
| Model with US Plug |
193152 |
195176 |
200183 |
$746.55
|
$986.70
|
$854.10
|
| Model with EU Plug |
193153 |
195177 |
200184 |
$746.55
|
$986.70
|
$854.10
|
| Model with UK Plug |
196326 |
196539 |
200185 |
$746.55
|
$986.70
|
$854.10
|
| Model with AUS Plug |
196327 |
196538 |
200186 |
$746.55
|
$986.70
|
$854.10
|
| Model with 9-36 VDC |
193154 |
- |
- |
$822.90
|
|
|
| With Analog Output Card |
- |
YES |
- |
| With External RJ45 Connector (IP66) |
- |
- |
YES |
| RATING/MATERIAL |
Rating: IP69K
Material: AISI 304 Stainless Stee |
| Legal For Trade |
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121, Class III/IIIHD, 10,000d
OIML |
| POWER |
Line voltages: 100-240 VAC
Frequency: 50-60 Hz |
| POWER CONSUMPTION |
~2W (AC) with one 350 ohm load cell, 15W max |
| EXCITATION VOLTAGE |
+5 VDC, 8 x 350O or 16 x 700O load cells |
| ANALOG SIGNAL INPUT RANGE |
-0.5 mV/V to +7 mV/V |
| ANALOG SIGNAL SENSITIVITY |
1 µV/graduation recommended |
| A/D SAMPLE RATE |
6.25-120 Hz, software selectable |
| RESOLUTION |
Internal: 8,000,000 counts
Display: 1,000,000 |
| SYSTEM LINEARITY / PI RATING |
Within 0.01% full scale |
| DIGITAL I/O |
Four configurable I/O - 5V logic |
| COMMUNICATION PORTS |
Two RS-232 (three-wire)
RS-485 (five-wire)
USB (device)
Ethernet (10/100) |
| STATUS ANNUNCIATORS |
Eight LED annunciators |
| DISPLAY |
Seven 0.8?in tall, seven-segment digits |
| KEYS/BUTTONS |
Flat membrane panel, tactile feel (18 buttons plus ON/OFF) |
| TEMPERATURE RANGE |
Legal: 14oF to 104oF (-10oC to 40oC)
Industrial: 14oF to 122oF (-10oC to 50oC) |
| DIMENSIONS (W X H X D): |
11.58 in x 8.57 in x 4.05 in (30 cm x 22 cm x 10 cm) |
| WEIGHT |
6.25?lb (3?kg) |
| WARRANTY |
Two-year limited warranty |
| EMC IMMUNITY |
10 V/m |
| Approvals |
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121, Class III/IIIHD,
10,000d
OIML
EU Test Certificate TC11562
UL/cUL Listed
CE Marked |
|
