Defining Value and Performance

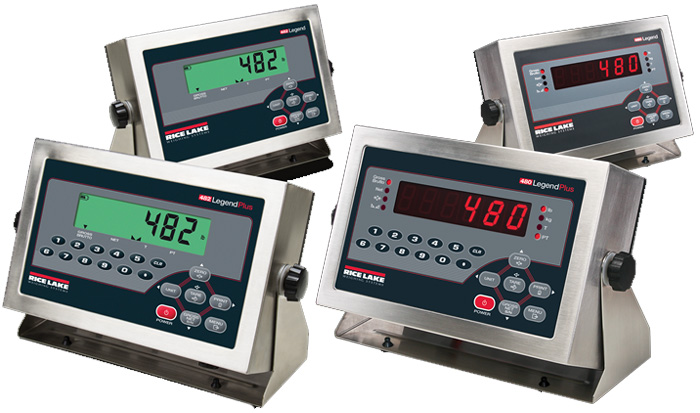

Rice Lake’s Legend Series combines industrial strength with innovative features to deliver the best in performance and value
Advance to Rice Lake’s Legend Series With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.
Advanced circuitry withstands electrical noise, power disturbances and transient spikes that are common to industrial applications. The Legend Series’ six-button tactile keypad allows for quick navigation and programming. The Legend Plus Series offers a full numeric keypad.
The Legend Series offers a valuable solution for a variety of applications, from basic weighing to batching. Built-in gross/net modes provide quick flexibility for everyday needs. Also utilize the 480’s custom ticket printing to modify gross, net and setpoint tokens for a tailored print format.
Power
- Standard AC power for stationary applications
- Optional internal battery for portability, with power-saving modes for long-lasting operation
Options
- Analog output with 0-10 VDC, 0-20mA, 4-20mA; configurable for positive and negative value tracking
- Relay output with two inputs and four dry contact relays
- USB and Ethernet TCP/IP board supports server and client connections
Functions
- Internal clock with time stamp can be positioned in configurable print formats
- Unit ID number can be entered by the operator to uniquely identify each scale or job
- Eight batch steps with latched or continuous outputs based on gross, net or delay values
Features
- Two serial ports: one on demand and one continuous or two on demand
- Single scale input from light capacity bench scales to heavy capacity industrial scales
- Local/Remote: add an additional indicator as a secondary display in a remote location
- 0.8in (20mm), 6-digit, 7-segment display
- LED, 480 and 480 Plus
- LCD, 482 and 482 Plus
- Time and date, battery backed
- Local/remote operation
- Numeric keypad (480 Plus and 482 Plus)
- Keypad entries and setpoint values (480 Plus and 482 Plus)
- Two independent serial ports, RS-232 and 20mA
- NEMA Type 4X/IP66 stainless steel washdown enclosure
- Password protection for user and configuration changes
- Selectable conversion rate and display update rate
- Hardware or audit trail metrology sealing
- Programmable ticket formats for gross, net, accumulator, and setpoints
- Five continuous stream formats
- Adapter filter or rolling average filter
- Configurable with Revolution® software
- Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications, and print formats
- Eight setpoints, sequenced batch engine
Options/Accessories
- Analog output, 0-10VDC, 0-20mA, 4-20mA, selection for 20% offset
- Relay output, two digital inputs, four dry contact relays (supports two boards)
- Battery, rechargeable lithium ion
480: power for 18 hours of battery life on one 350 ohm load (LCD current draw vs LED current draw)
482: power for 40 hours of battery life on one 350 ohm load Power-saving modes for sleep and wake-up threshold
- Ethernet TCP/IP and USB interface
| MODEL with 115 VAC US Plug |

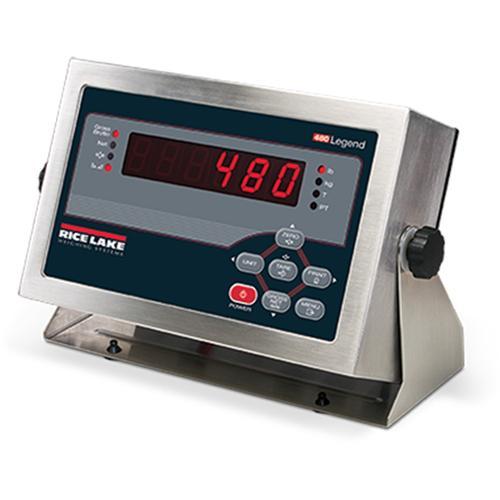

480
126564 |
480 Analog Output
130338 |
480 USB/Ethernet
164594 |

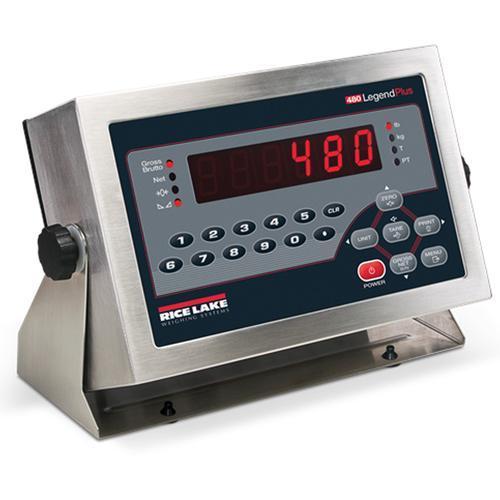

480 Plus
164588 |
480 Plus Analog Output
164589 |
480 Plus Relay Output
164590 |
480 Plus USB/Ethernet
164596 |
$691.25
|
$1,010.10
|
$1,087.20
|
$691.25
|
$1,010.10
|
$854.10
|
$1,087.20
|
| MODEL with 90-264VAC Euro Plug |
480 90-264VAC
126565 |
480 90-264VAC Analog Output
130339 |
480 90-264VAC USB/Ethernet
164595 |
480 Plus 90-264VAC
164591 |
480 Plus 90-264VAC Analog Output
164592 |
480 Plus 90-264VAC Relay Output
164593 |
480 Plus 90-264VAC USB/Ethernet
164597 |
$691.25
|
$971.10
|
$1,087.20
|
$691.25
|
$1,010.10
|
$815.10
|
$1,087.20
|
| Display Type |
LED |
LED |
LED |
LED |
LED |
LED |
LED |
| Display: |
0.8 in (20 mm), six-digit, seven-segment |
| Legal for Trade |
NTEP CC 12-123, Class III/IIIL, 10,000 d
Measurement Canada AM-5892C |
| Analog Output |
- |
16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA |
- |
- |
16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA |
- |
- |
| Ethernet and USB Board |
- |
- |
USB five-pin header for PC, printer or flash drive.
Ethernet TCP/IP, RJ45 jack, server and client ports |
- |
- |
- |
USB five-pin header for PC, printer or flash drive.
Ethernet TCP/IP, RJ45 jack, server and client ports |
| Relay Board |
- |
- |
- |
- |
- |
Two opto-isolated, 5 to 24 VDC, active high inputs. Two inputs (requires relay output option). Primary keys, pseudo functions, batching functions. (4) 30 VDC, 2 amp dry-contract relays |
- |
| Power |
Line voltages: 110 - 240VAC
Frequency: 50 or 60Hz
Estimated battery life:18 hours (one 350 ohm load cell) with backlight |
| Excitation Voltage |
5VDC, 8 x 350 ohm load cells or 16700 ohm load cells |
| Analog Signal Input Range |
+7mV/V |
| Analog Signal Sensitivity |
0.1uV/graduation minimum
0.5uV/graduation recommended |
| Resolution |
Internal: 523,000 counts
Display: 100,000 displayed graduations |
| A/D Sample Rate |
Software selectable 5, 10, 20, 40Hz |
| System Linearity |
Within 0.01% of full scale |
| Digital Inputs |
Two inputs (requires relay output option) Primary keys, pseudo functions, batching functions |
| Circuit Protection |
Immunity 10V/m ESD + 10KV air + 6KV contact |
| RFI Protection |
Capacitor bypass and ESD suppressors |
| Communication Ports |
Com 1: RS-232 full duplex;
Com 2: RS-232 full duplex or 20 mA simplex;
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud, 7 or 8 data bits, even, odd or no parity |
| Display |
0.8in (20mm), 6-digit, 7-segment |
| Status Annunciators |
Gross, net, center of zero, stand still, lb, kg, tare, preset tare |
| Keyboard |
Flat membrane panel, embossed keys, tactile |
| Analog Output Option |
16-bit resolution, voltage output 0-10VDC, current output 0-20mA / 4-20mA |
| Relay Board Option |
(2) Opto-isolated, 5 to 24VDC, active high inputs
(4) 30VDC, 2 amp dry-contract relays |
| Certified Operating Range |
Legal: 14oF to 104oF (-10oC to 40oC)
Industrial: 14oF to 122oF (-10oC to 50oC) |
| Rating/Material |
Enclosure: NEMA Type 4X/IP66, stainless steel |
| Weight |
6.4lb (2.9kg) |
| Warranty |
Two-year limited |
| Approvals: |
NTEP CC 21-051, Class III/IIIL, 10,000 d
Measurement Canada AM-6184
cULus
CE marked
OIML T5692 TC8322 III nmax 10,000 |
| MODEL with 115 VAC US Plug |

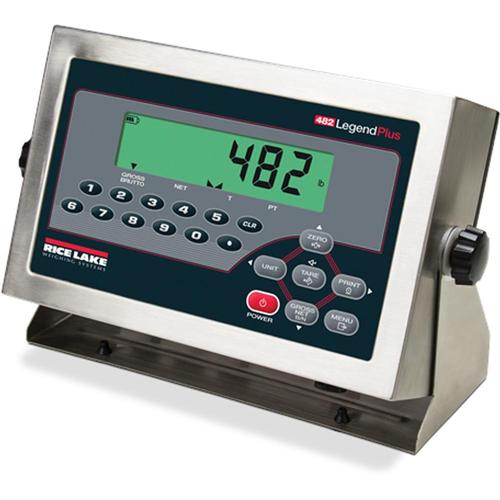

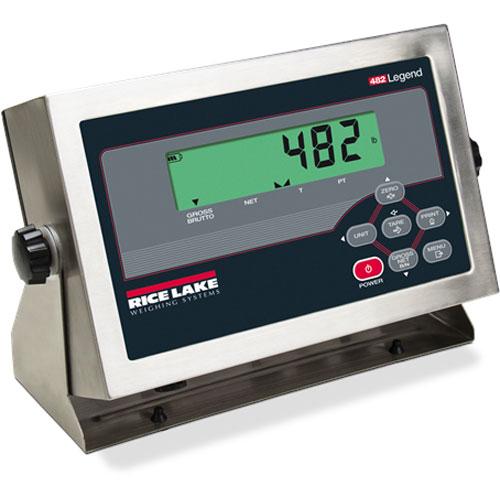

482
164581 |
482 with internal battery
164582 |
482
164584 |
482 with internal battery
164585 |
$791.70
|
$955.50
|
$791.70
|
$900.00
|
| MODEL with 90-264VAC Euro Plug |
482 90-264VAC
164672 |
482 90-264VAC with internal battery
164583 |
482 90-264VAC
164673 |
482 90-264VAC with internal battery
164586 |
$770.25
|
$900.00
|
$770.25
|
$900.00
|
| Display Type |
LCD |
LCD |
LCD |
LCD |
| Display: |
LCD backlit display, Transmissive/Transflective 0.8 in (20 mm), six-digit, seven-segment |
| Legal for Trade |
NTEP CC 12-123, Class III/IIIL, 10,000 d
Measurement Canada AM-5892C |
| Internal Battery |
- |
YES |
- |
YES |
| Power |
Line voltages: 110 - 240VAC
Frequency: 50 or 60Hz
Estimated battery life:18 hours (one 350 ohm load cell) with backlight |
| Excitation Voltage |
5VDC, 8 x 350 ohm load cells or 16700 ohm load cells |
| Analog Signal Input Range |
+7mV/V |
| Analog Signal Sensitivity |
0.1uV/graduation minimum
0.5uV/graduation recommended |
| Resolution |
Internal: 523,000 counts
Display: 100,000 displayed graduations |
| A/D Sample Rate |
Software selectable 5, 10, 20, 40Hz |
| System Linearity |
Within 0.01% of full scale |
| Digital Inputs |
Two inputs (requires relay output option) Primary keys, pseudo functions, batching functions |
| Circuit Protection |
Immunity 10V/m ESD + 10KV air + 6KV contact |
| RFI Protection |
Capacitor bypass and ESD suppressors |
| Communication Ports |
Com 1: RS-232 full duplex;
Com 2: RS-232 full duplex or 20 mA simplex;
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud, 7 or 8 data bits, even, odd or no parity |
| Display |
0.8in (20mm), 6-digit, 7-segment |
| Status Annunciators |
Gross, net, center of zero, stand still, lb, kg, tare, preset tare |
| Keyboard |
Flat membrane panel, embossed keys, tactile |
| Analog Output Option |
16-bit resolution, voltage output 0-10VDC, current output 0-20mA / 4-20mA |
| Relay Board Option |
(2) Opto-isolated, 5 to 24VDC, active high inputs
(4) 30VDC, 2 amp dry-contract relays |
| Certified Operating Range |
Legal: 14oF to 104oF (-10oC to 40oC)
Industrial: 14oF to 122oF (-10oC to 50oC) |
| Rating/Material |
Enclosure: NEMA Type 4X/IP66, stainless steel |
| Weight |
6.4lb (2.9kg) |
| Warranty |
Two-year limited |
| Approvals: |
NTEP CC 21-051, Class III/IIIL, 10,000 d
Measurement Canada AM-6184
cULus
CE marked
OIML T5692 TC8322 III nmax 10,000 |
|
