| Mobile weighing provides a variety of benefits including speed, efficiency, and accuracy. The RAVAS ProLine Touch adds to that list by becoming the first weighing hand pallet truck equipped with a touch screen indicator that calculates weight in increments of 3.5 ounces. It’s perfect for use in the food, pharmaceutical, and chemical industries, and parts supply chains.
|
| Industrial Scales >> RAVAS Scales >> Pallet Jack Scales |
|
Have Questions?
Our Staff will be glad to help |
Dims
|

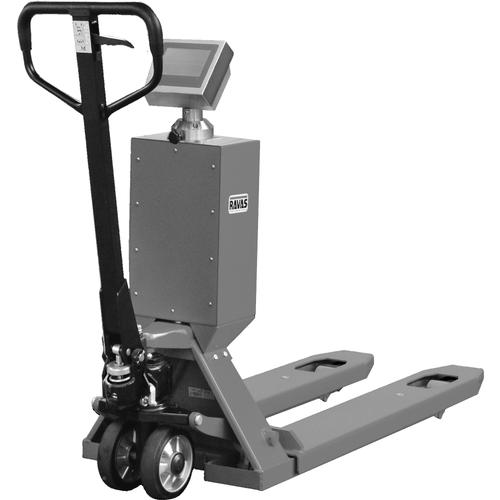

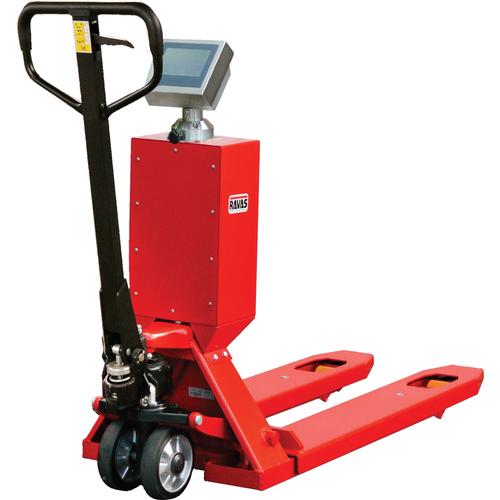

Mobile weighing provides a variety of benefits including speed, efficiency, and accuracy. The RAVAS ProLine Touch adds to that list by becoming the first weighing hand pallet truck equipped with a touch screen indicator that calculates weight in increments of 3.5 ounces. It’s perfect for use in the food, pharmaceutical, and chemical industries, and parts supply chains.
Enhance Your Logistical and Production Processes
- Accurately piece counts and weighs
- Advanced scale functions for dosing
- 7.1" touch screen indicator with advanced functions
- Programmable user interface
- USB port for data capture
- 12-hours of battery life
FUNCTIONS
- Automatic and manual zero correction
- Internal clock for date and time
- Error messages in display
- Piece counting by sampling or calculation of piece weights
- Totalling
- Entry of alphanumeric codes
- Automatic and manual tare via touch screen
- Gross/net weighing
- Weighing, Counting, Totalizing and Dosing
STANDARD SPECIFICATIONS
- CAPACITY: 5,000 lb
- GRADUATION MULTIRANGE:
- 0 - 400 lb: graduation 0.2 lb
- 400 - 1,000 lb: graduation 0.5 lb
- 1,000 - 5,000 lb: graduation 1 lb
- MAXIMUM TOLERANCE: 0.08% of the load lifted
- DISPLAY: 7.1 inch, high resolution touch screen
- PROTECTION CLASS: NEMA 4 / IP65
- POWER CONSUMPTION: 360 mA
- BATTERY: 12V, by 2 exchangeable battery modules 6V-4,8Ah
- BATTERY CYCLE TIME: 15 hours, charging time 6 hours
- CHARGER: 110V NiMH charger
- PROTECTION CLASS: NEMA 4 / IP65
- POWER CONSUMPTION: 360 mA
- BATTERY: 12V, by 2 exchangeable battery modules 6V-4,8Ah
- BATTERY CYCLE TIME: 15 hours, charging time 6 hours
- CHARGER: 110V NiMH charger

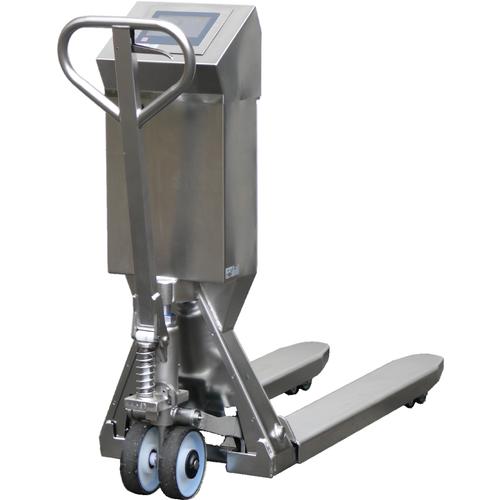

RAVAS-TOUCH GMP
BENEFITS (GMP)
- Minimal maintenance, easy cleaning and high resistance to corrosion
- Manufactured 100% in stainless steel 304L (1.4307) or 316L (1.4404), including all hydraulic parts
- Open under-fork construction, closed fork-shoe, for maximum hygiene
- Hydraulic equipment contains food grade oil
- Continuous weld: welds are polished
- Electro polishing, for very smooth surfaces
FUNCTIONS (GMP)
- Automatic and manual zero correction
- Gross/net weighing
- Automatic and manual tare via touch screen
- Entry of alphanumeric codes
- Totalling with sequence number
- Piece counting by sampling or entry of piece weights
- Error messages in display
- Internal clock
- USB port for data capture
HYGIENIC CONSTRUCTION (GMP)
- All bearings are waterproof and self-lubricated
- All moveable parts have polymer bearings, free of lubrication
- Pump function with plastic coated stainless steel cable (no chain)
- Internal dashboard with on/off switch, fuse and USB port
- Completely silicon free
|
|

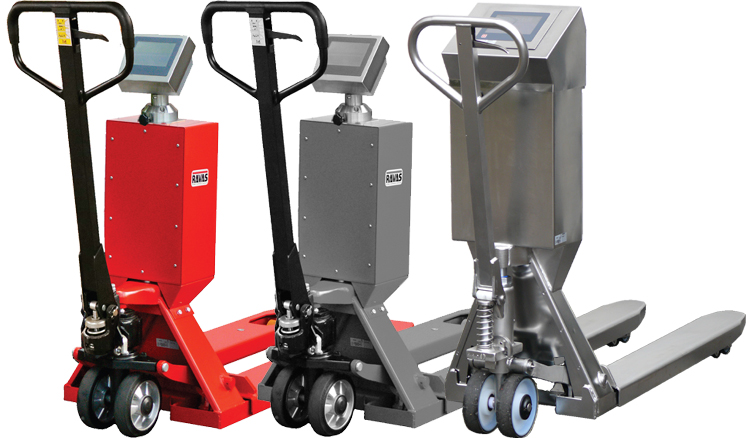

| Model |
ProLine-Touch |
ProLineSS-Touch |
ProLineSS-Touch-GMP |
ProLine-Touch-22 |
ProLineSS-Touch-22 |
ProLineSS-Touch-GMP-22 |
$7,329.00
|
$15,442.00
|
$25,142.00
|
$7,626.00
|
$13,801.00
|
$23,028.00
|
| Capacity X Readability |
400 x 0.2 lb
1000 x 0.5 lb
5000 x 1 lb |
400 x 0.2 lb
1000 x 0.5 lb
5000 x 1 lb |
400 x 0.2 lb
1000 x 0.5 lb
5000 x 1 lb |
400 x 0.2 lb
1000 x 0.5 lb
5000 x 1 lb |
400 x 0.2 lb
1000 x 0.5 lb
5000 x 1 lb |
400 x 0.2 lb
1000 x 0.5 lb
5000 x 1 lb |
| Dimensions |
48 x 27.2 x 3.25 inch |
48 x 27.2 x 3.25 inch |
48 x 27.2 x 3.25 inch |
48 x 21.7 x 3.25 inch |
48 x 21.7 x 3.25 inch |
48 x 21.7 x 3.25 inch |
| Legal for Trade |
- |
| Max. tolerance |
0.1% of the load lifted |
| Load Cells |
4 x 2,000 lb each |
| Display |
7.1 inch, high resolution touch screen, rotating |
7.1 inch, high resolution touch screen |
7.1 inch, high resolution touch screen, rotating |
7.1 inch, high resolution touch screen |
| Functions |
Zero correction, gross/net weight, totaling with sequence number, internal clock for date and time, piece counting by sampling, calculation or entry of piece weight, ID-code entry alpha-numeric via QWERTY keypad (4 x 20 characters), tare memory for 50 values, basic-count-totaling-dosing software. |
| Protection class |
NEMA 4 / IP65 (for standard systems) |
GMPNEMA 4 / load cells IP67, indicator IP65 |
NEMA 4 / IP65 (for standard systems) |
GMPNEMA 4 / load cells IP67, indicator IP65 |
| Power supply |
Long life battery, 12 Volt NiMH, exchangeable, incl. charger (9,6 Ah) |
| Data communication |

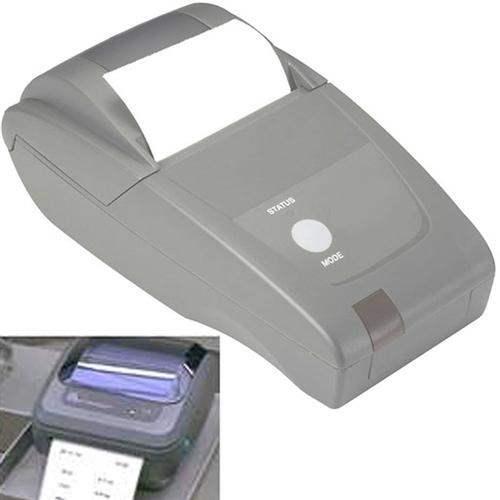

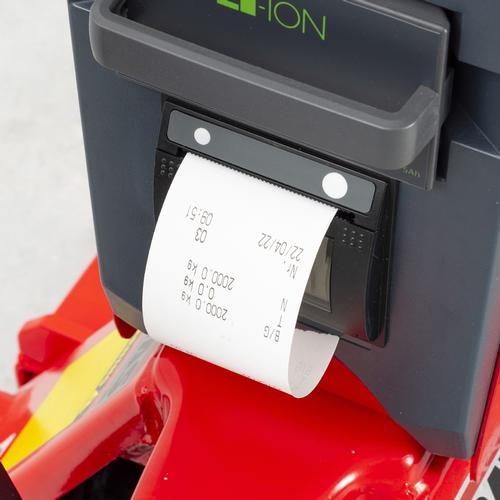

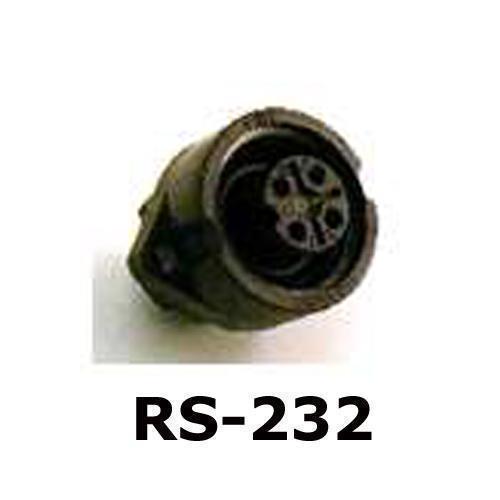

3 ports (2 x RS232, 1 x USB) (an integrated printer requires 1 RS232 port) |
1 x USB |
3 ports (2 x RS232, 1 x USB) (an integrated printer requires 1 RS232 port) |
1 x USB |

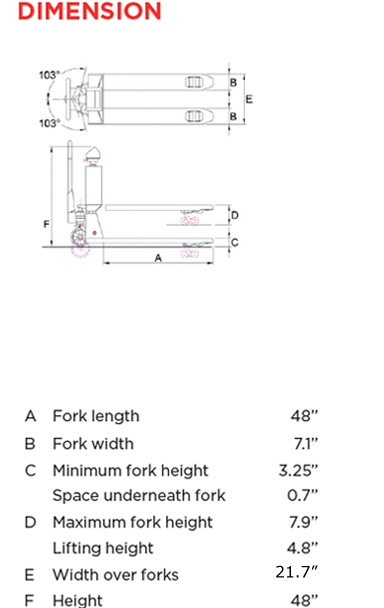

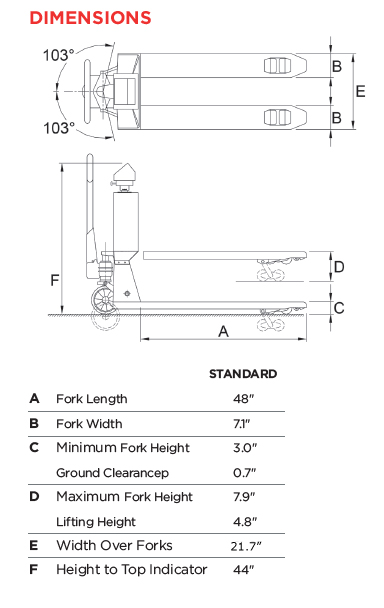

Fork dimensions
L x W x H |
48 x 7.1 x 3.25 inch |

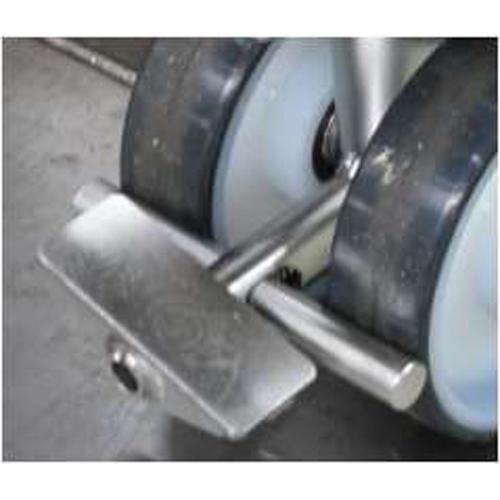

| Wheels |
Steering: rubber / Load: single polyurethan |
Steering: rubber / Load: single nylon |
Steering: nylon / Load: nylon, single |
Steering: rubber / Load: single polyurethan |
Steering: rubber / Load: single nylon |
Steering: nylon / Load: nylon, single |

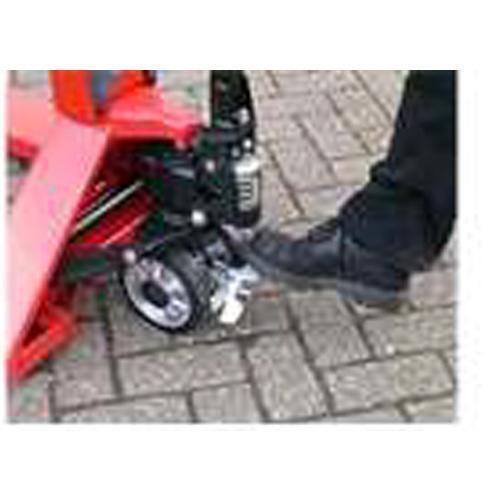

| Pump |
Quick lift |
ergonomic lift |
Quick lift |
ergonomic lift |

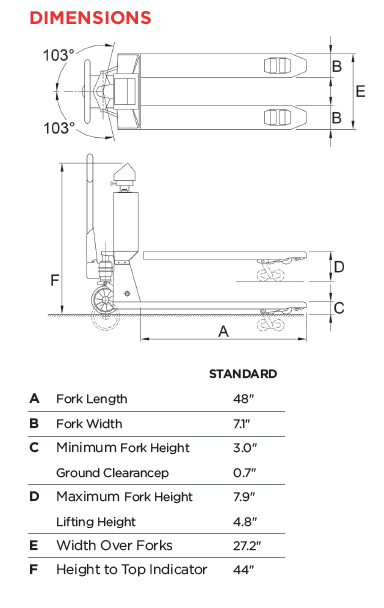

Dims
