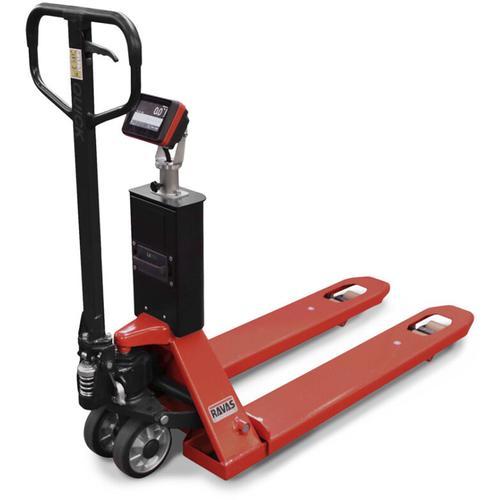

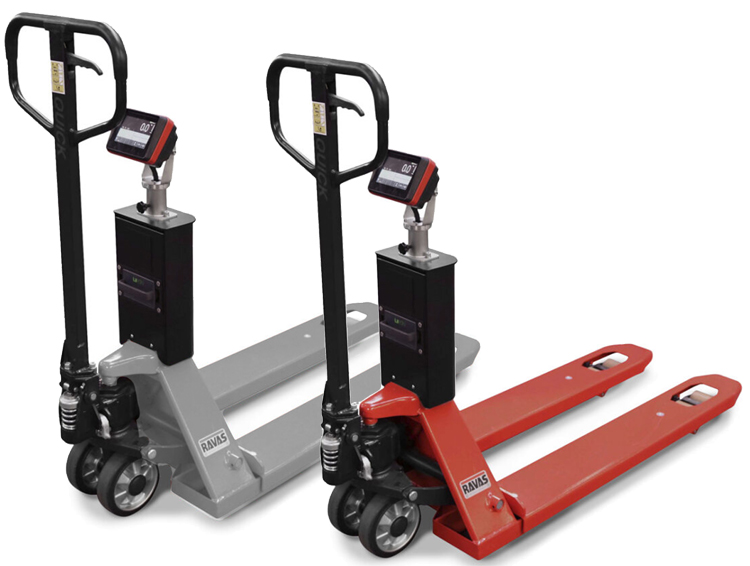

RAVAS-520 Pallet Truck Scales

Manufacturers

RAVAS-520 Pallet Truck Scales	Authorized Dealer
If your material handling process includes piece counting or repeatable steps, the RAVAS-520 advanced scale functions will save you valuable time. With an intuitive touch screen display, multiple weighing functions, Bluetooth connectivity, and Lithium-ion powered battery, the RAVAS-520 will enhance your warehouse operation.
Industrial Scales >> RAVAS Scales >> Pallet Jack Scales

Legal For Trade

Have Questions?

email Us

Our Staff will be glad to help

Specifications Charts

Dims

RAVAS-520 - If your material handling process includes piece counting or repeatable steps, the RAVAS-520 advanced scale functions will save you valuable time. With an intuitive touch screen display, multiple weighing functions, Bluetooth connectivity, and Lithium-ion powered battery, the RAVAS-520 will enhance your warehouse operation.

Extended scale functions

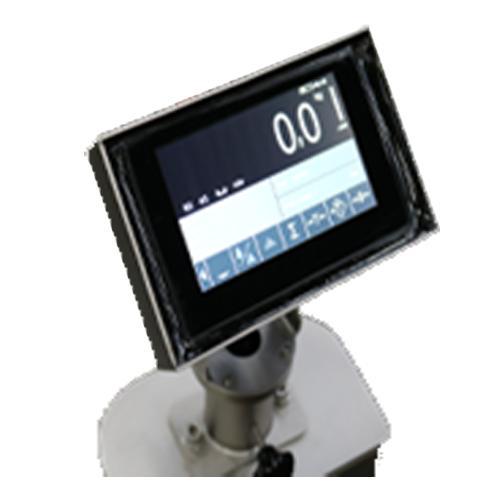

Touch screen display - The display has an intuitive 5-inch touch screen with 0.98-inch high digits. Only the active keys are visible, making it extremely easy to use.
Lithium ion powered - Power supply by a rechargeable and removable Li-ion battery. In combination with power save functions, it enables you to work for hours on end.
Customized functions - The indicator offers several advanced scale functions, including a piece counting program. It is also programmable for customer-specific routines.
Integrated data connectivity - The indicator features multiple types of connectivity for data transfer, such as the RS232 interface, USB-output and advanced connectivity via Bluetooth or WiFi.

Advanced Functionality

Standard NTEP approved
5 in touch screen with easy to read digits
Power supply by a rechargeable and removable Li-ion battery
Programmable routines
Standard with piece counting function
Integrated data connectivity

FUNCTIONS

Automatic and manual zero correction
Gross/net weighing
Tare memory for 10 values
Internal clock for date and time
On board: RS232 port connection for printer USB output for data transfer (with USB Stick) Free COM 1 for Wifi or RS232
The USB output can also be used to connect a bar-code scanner (end of 2019)

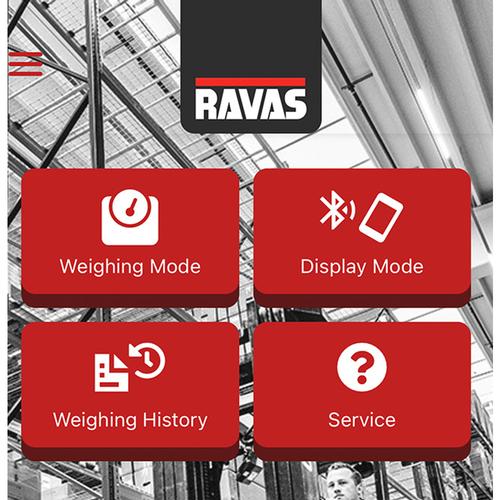

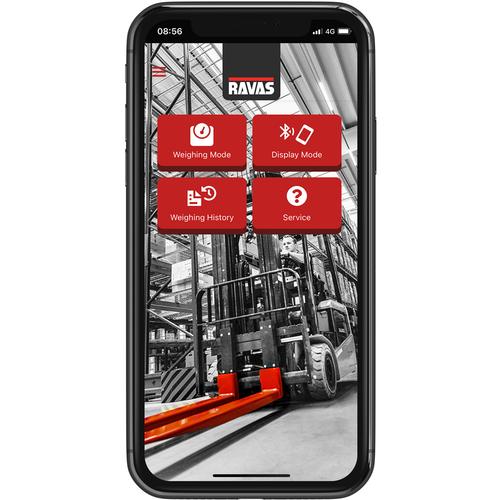

Bluetooth 4.0 for RAVAS WeightsApp

STANDARD SPECIFICATIONS

WEIGHT CAPACITY: Max. 5,000 lb
GRADUATION: 0 - 3,000 lb: graduation 1 lb, or 5,000lb: graduation 2 lb
MAXIMUM TOLERANCE: 0.1 % of applied load
DISPLAY: Full-colour 5in touch display with 1 in high digits
KEYPAD: Display mode defines the available keys, on/off key
PROTECTION CLASS: Loadcells NEMA 5, indicator NEMA 4
BATTERY: Li-ion battery pack 14.8V/5Ah incl. charger
BATTERY LIFE: 25 hours continuous use (50 hours with sleep modes)
CHARGER: 110/120 - 14,8V. Approximately 6 hours charging time
INDICATOR MOUNTING: Rotating and tiltable
STEERING WHEELS: Rubber
LOADING WHEELS: Polyurethane, single
COLOR :Red (RAL 3000), epoxy painted
OWN WEIGHT: 250 lb
PUMP: Quick lift

RAVAS-520 Pallet Truck Scales

OPTIONS Must be Ordered with scale

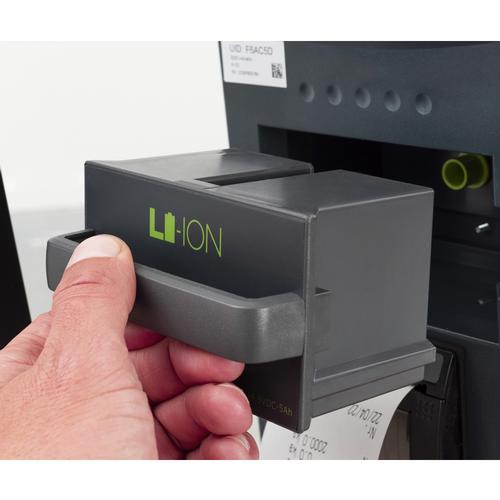

	Ravas Extra Exchangeable LI-ION Battery Pack for Ravas 520 , add $205.00
	Ravas PRP-PAP-INT-TH-RAVAS Paper Roll for Thermal Printers width 2.28 in diameter 2 in length 700 in, add $9.00
	Ravas 12 Rolls of Paper for Thermal Printers width 2.28 in diameter 2 in length 700 in, add $48.00

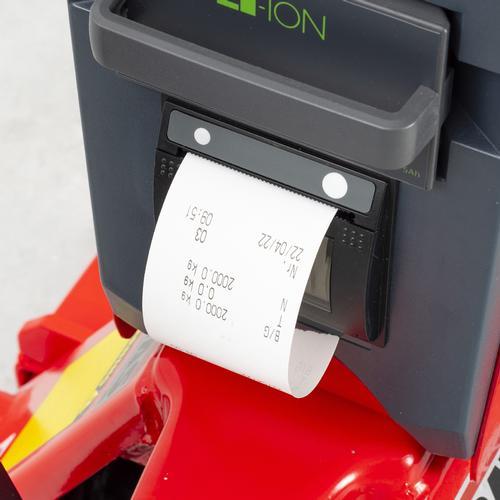

	Ravas Integrated Thermal Printer for RAVAS-520- Must Order With Scale, add $416.00

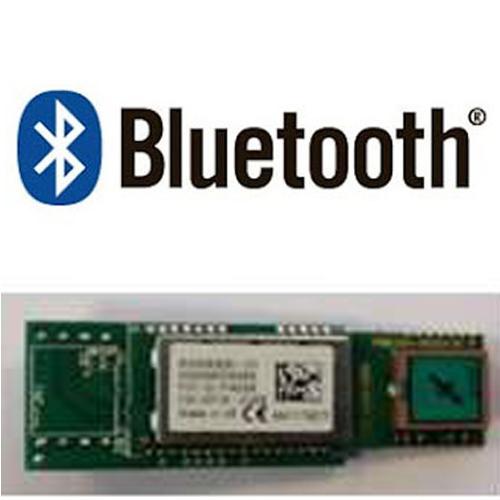

	Ravas Integrated BLUETOOTH Output for RAVAS-520- Must Order With Scale, add $575.00

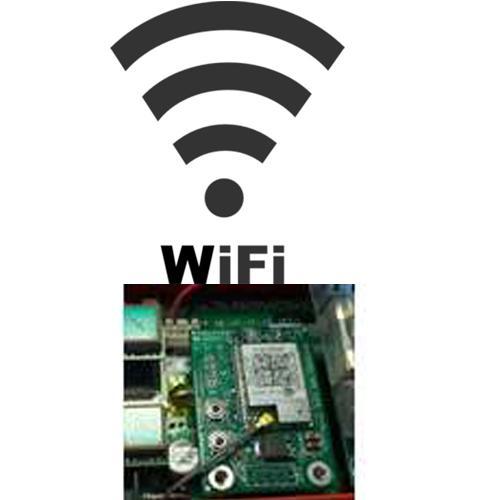

	Ravas X-PICO Integrated WIFI Output for RAVAS-520- Must Order With Scale, add $712.00
	Ravas Barcode Reader Connected via USB for Ravas 520, add $1,305.00

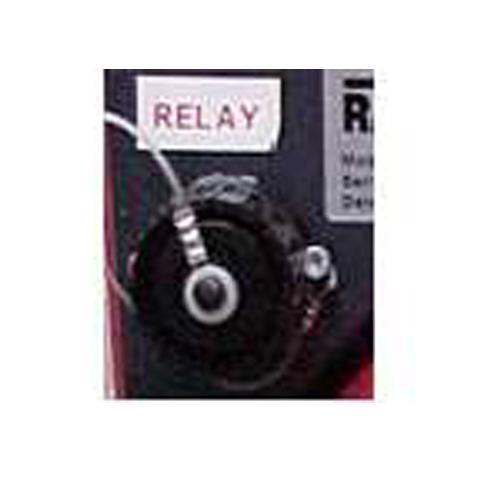

	Ravas Integrated RELAY Output for RAVAS-520- Must Order With Scale, add $865.00
	Ravas Rotating Indicator With Stainless Steel IP65 Housing for RAVAS-520- Must Order With Scale, add $1,041.00

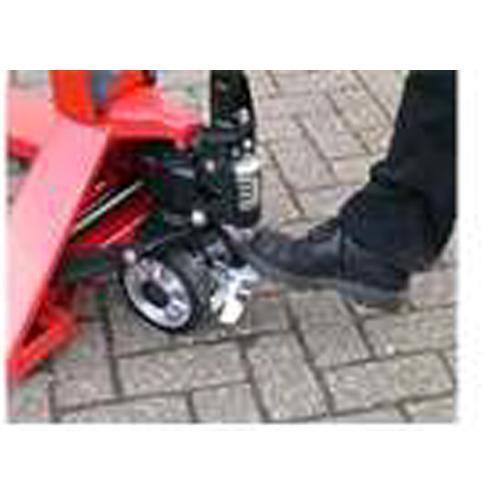

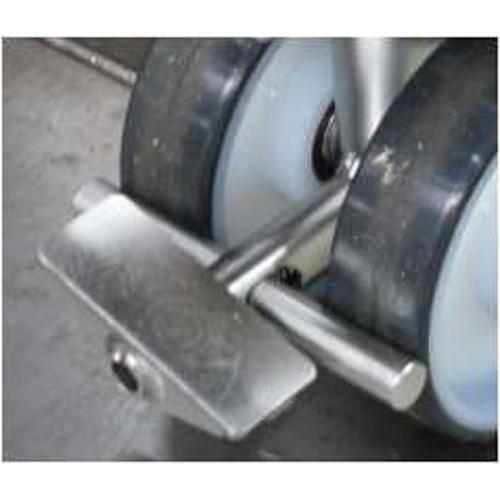

	Ravas Foot Brake for RAVAS-520- Must Order With Scale, add $233.00

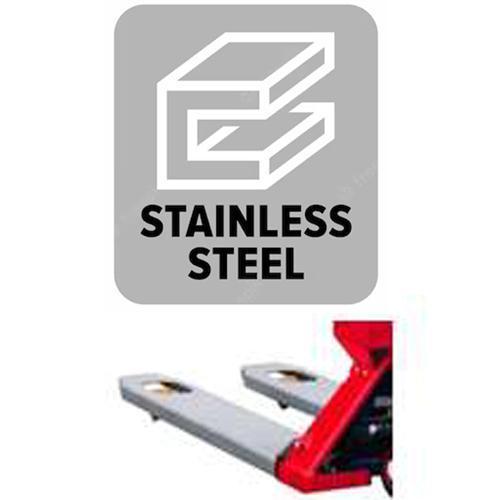

	Ravas Stainless steel fork shoes for RAVAS-520 - Must Order With Scale, add $1,235.00
	Ravas Stainless Steel Foot Brake for RAVAS-520-SS - Must Order With Scale, add $544.00
Software
	Ravas RDC RAVAS DATA COLLECTOR SOFTWARE for Ravas 320 or Ravas 520, add $599.00
	Ravas RAVAS FOR RDC App for Android for Ravas 320 or Ravas 520, add $192.00
	Ravas RIS RAVAS INTEGRATION SOFTWARE. for Ravas 320 or Ravas 520, add $5,855.00

More info

OPTIONS*

Thermal or matrix printer 12V
Bluetooth- or WiFi- data transfer • Reference scale via RS232 (for more accurate piece counting)
Parking brake
1D USB bar-code scanner, not in combination with legal for trade
Additional Li-ion battery pack

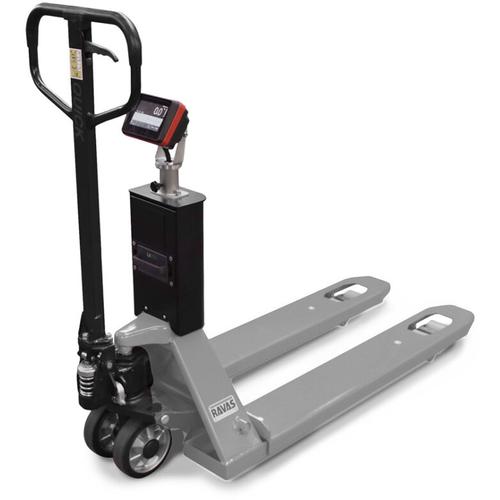

Stainless steel chassis
RDC, RAVAS Data Collector Software
RIS, RAVAS Integration Software

*The use of options may change related specifications.

Model	RAVAS-520	RAVAS-520-22	RAVAS-520SS	RAVAS-520SS-22
Model	$3,472.00	$3,769.00	$10,915.00	$9,707.00
Capacity X Readability	3000 x 1 lb 5000 x 2 lb	3000 x 1 lb 5000 x 2 lb	3000 x 1 lb 5000 x 2 lb	3000 x 1 lb 5000 x 2 lb
Dimensions	48 x 27 x 3.25 inch	48 x 21.7 x 3.25 inch	48 x 27 x 3.25 inch	48 x 21.7 x 3.25 inch
Frame	Painted Steel		Stainless Steel
Legal for Trade	Standard NTEP approved
Max. tolerance	0.1% of the load lifted
Display	5 inch, full color touch display with 1 inch high digits
Functions	Zero correction, gross/net weight, internal clock for date and time, piece counting by sampling, calculation or entry of piece weight, tare memory for 10 values, ID-code entry for 4 ID-codes, totaling with 10 registers
Protection class	NEMA 4 / IP65 (for standard systems)
Power supply	14.8 Volt /5 Ah, exchangeable Li-Ion battery, incl. charger
Data communication	4 ports, standard Bluetooth 4.0 for RAVAS WeightsApp and USB output, optional RS232 port for printer and port for Bluetooth or WiFi
Fork dimensions L x W x H	48 x 7.1 x 3.25 inch
Width over forks	27.2 inch		21.7 inch
Wheels	Steering: rubber / Load: single polyurethan
Pump	Quick lift

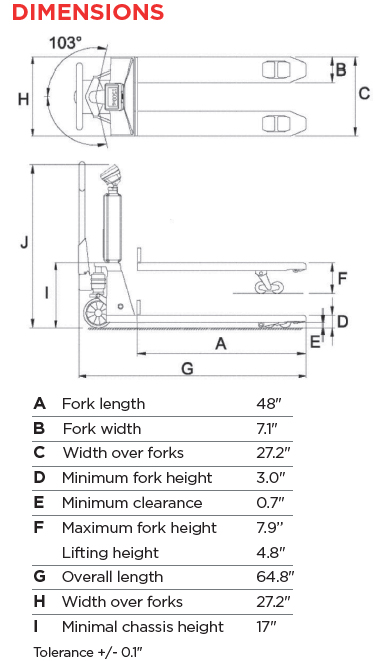

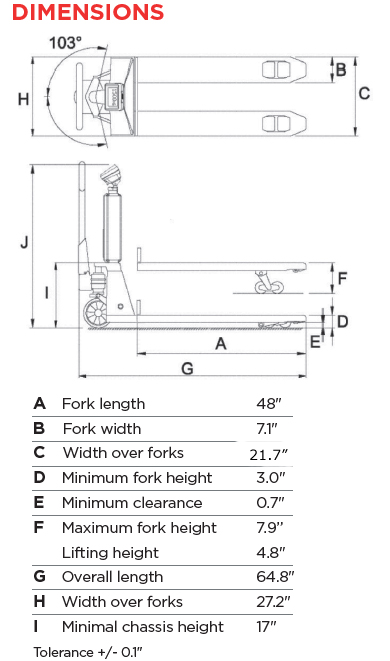

Dims

RAVAS-520

RAVAS-520-22
