RAVAS-256X Explosion Proof Pallet Truck Scales |
Authorized Dealer |

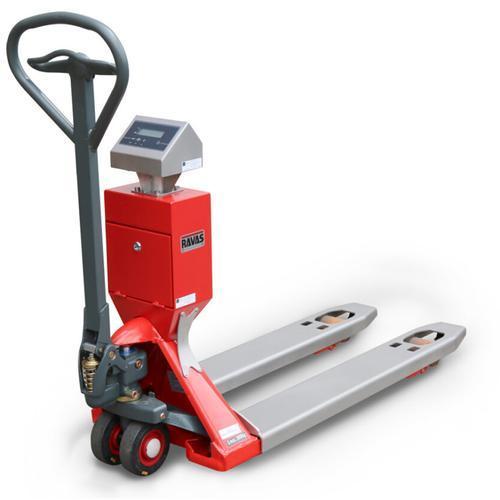

| The RAVAS-256X is an explosion-proof weighing hand pallet truck. FM Certified and standard equipped with stainless steel fork shoes. Experience excellence in hazardous surroundings. The RAVAS-256x is designed for dosing and batching applications in hazardous environments.
|
| Industrial Scales >> RAVAS Scales >> Pallet Jack Scales |
|
 |
Legal For Trade*
* Selected Models Only |
Have Questions?
Our Staff will be glad to help |
Dims
|
|
|
The RAVAS-256X is an explosion-proof weighing hand pallet truck. FM Certified and standard equipped with stainless steel fork shoes. Experience excellence in hazardous surroundings. The RAVAS-256x is designed for dosing and batching applications in hazardous environments.
Explosion proof
The RAVAS-256x is designed for dosing and batching applications in hazardous environments.
FM Certified
Standard FM certified for the USA and Canada, for Class I, II, III , Division 1, Groups A-G, temperature Class T4, Ta = 104 F
Options

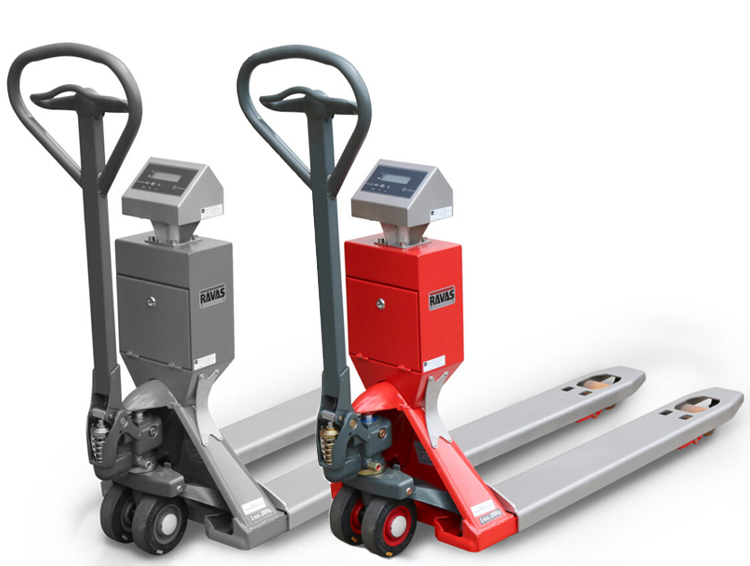

Optionally available in full stainless steel, as NTEP approved Legal for trade version, with a rotating indicator and big push buttons for use with gloves.
CML Europe uses a RAVAS-256X for mixing and dosing
CML Europe produces chemical raw materials in small quantities for pharmaceutical companies. Mixing and dosing are done with a RAVAS-256X explosion proof hand pallet truck scale for ATEX zone 1&21. Read more about this specific application.
Designed for Hazardous Environments
- Safely weigh while on the move in hazardous areas
- FM approved for USA and Canada - Class I,II,III Division 1, Groups A-G, Temperature class T4, Ta = 104 F
- Stainless steel fork cover
- Perfect for mixing and batching
- Rotating display, visible from all sides
- Rechargeable and exchangeable battery
- Large, 6-digit LED display
FUNCTIONS
- key off/On
- digits large with keypad Numeric
- correction zero manual and Automatic
- button push by tare Automatic
- use-non of minutes 30 after off-switch Automatic
- resolution display higher 10x
- toggle kg/lb
STANDARD SPECIFICATIONS
- CAPACITY: 5,000 lb.
- GRADUATION: 1 lb.
- MAXIMUM TOLERANCE: 0.1% of the load lifted
- DISPLAY: backlit LCD, 1.2" high digits
- PROTECTION CLASS: System IP65, load cells and terminal IP67
- BATTERY CYCLE TIME: 70 hours
- CHARGING TIME: Approximately 6 hours
- STEERING WHEELS: Rubber, antistatic
- LOADING WHEELS: Polyurethane, single
- OWN WEIGHT: 330 lbs.
- FINISHING/COLOR: Epoxy coated / red, RAL3000
- FM CERTIFICATION: Class I,II,III Division 1, Groups A-G, Temperature class T4, Ta = 104 F
| Painted Steel |
RAVAS-256x-5K-1 |
RAVAS-256x-5K-05 |
RAVAS-256x-3K-02 |
RAVAS-256x-5K-2-N |
RAVAS-256x-3K-1-N |
$7,985.00
|
$8,393.00
|
$8,787.00
|
$8,519.00
|
$8,519.00
|
| Stainless Steel |
RAVAS-256xSS-5K-1 |
RAVAS-256xSS-5K-05 |
RAVAS-256xSS-3K-02 |
RAVAS-256xSS-5K-2-N |
RAVAS-256xSS-3K-1-N |
$16,098.00
|
$16,506.00
|
$16,900.00
|
$16,632.00
|
$16,632.00
|
| Capacity X Readability |
5000 x 1 lb |
5000 x 0.5 lb |
2500 x 0.2 lb |
5000 x 2 lb |
3000 x 1 lb |
| Dimensions |
48 x 27 x 3.25 inch |
48 x 27 x 3.25 inch |
48 x 27 x 3.25 inch |
48 x 27 x 3.25 inch |
48 x 27 x 3.25 inch |
| Legal for Trade |
- |
NTEP approved |
| Max. tolerance |
0.1% of the load lifted |
| Load Cells |
4 x 2,000 lb each |
| Display |
LED, digit height 1.2 inch |
| Functions |
Zero correction, gross/net weighing, tare entry via numeric key-pad, 10x higher display resolution (not for NTEP/Legal for Trade), lb/kg toggle |
| Protection class |
NEMA 4 / IP65 (for standard systems) |
| Power supply |

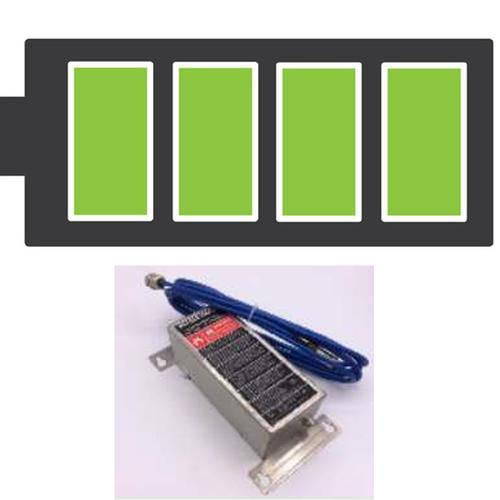

Via 10 Volt / 8 Ah Exi battery, exchangeable and rechargeable, incl. charger for charging the battery outside the Ex area. |
| Data communication |
none |
Fork dimensions
L x W x H |
48 x 7.1 x 3.25 inch |
| Width over forks |
27.2 inch |
| Wheels |
Rubber anti-static steering wheels, single PU loading wheels. |
| Pump |
Quick lift |
| Painted Steel |
RAVAS-256x-22-5K-1 |
RAVAS-256x-22-5K-05 |
RAVAS-256x-22-3K-02 |
RAVAS-256x-22-5K-2-N |
RAVAS-256x-22-3K-1-N |
$8,282.00
|
$8,690.00
|
$9,084.00
|
$8,816.00
|
$8,816.00
|
| Stainless Steel |
RAVAS-256xSS-22-5K-1 |
RAVAS-256xSS-22-5K-05 |
RAVAS-256xSS-22-3K-02 |
RAVAS-256xSS-22-5K-2-N |
RAVAS-256xSS-22-3K-1-N |
$14,457.00
|
$14,865.00
|
$15,259.00
|
$14,991.00
|
$14,991.00
|
| Capacity X Readability |
5000 x 1 lb |
5000 x 0.5 lb |
2500 x 0.2 lb |
5000 x 2 lb |
3000 x 1 lb |
| Dimensions |
48 x 21.7 x 3.25 inch |
48 x 21.7 x 3.25 inch |
48 x 21.7 x 3.25 inch |
48 x 21.7 x 3.25 inch |
48 x 21.7 x 3.25 inch |
| Legal for Trade |
- |
Standard NTEP approved |
| Max. tolerance |
0.1% of the load lifted |
| Load Cells |
4 x 2,000 lb each |
| Display |
LED, digit height 1.2 inch |
| Functions |
Zero correction, gross/net weighing, tare entry via numeric key-pad, 10x higher display resolution (not for NTEP/Legal for Trade), lb/kg toggle |
| Protection class |
NEMA 4 / IP65 (for standard systems) |
| Power supply |
Via 10 Volt / 8 Ah Exi battery, exchangeable and rechargeable, incl. charger for charging the battery outside the Ex area. |
| Data communication |
none |
Fork dimensions
L x W x H |
48 x 7.1 x 3.25 inch |
| Width over forks |
21.7 inch |
| Wheels |
Rubber anti-static steering wheels, single PU loading wheels. |
| Pump |
Quick lift |

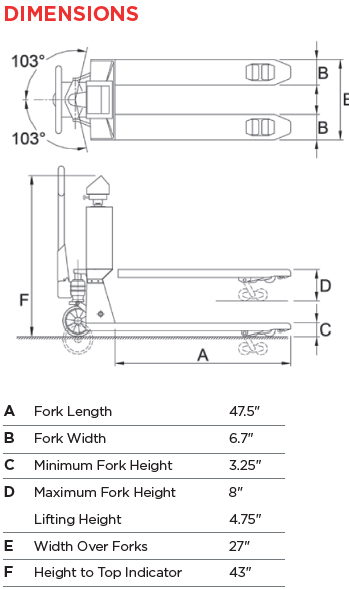

Dims
RAVAS-256x |
RAVAS-256x-22 |
|
