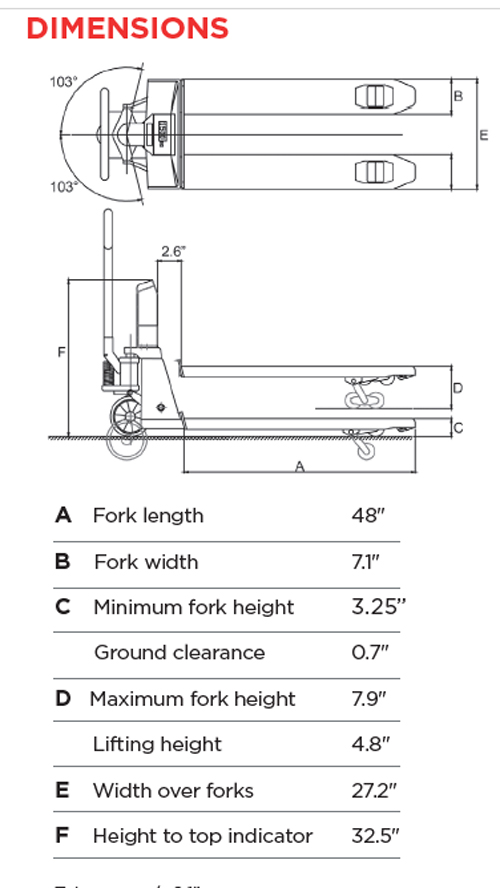

Dims
|

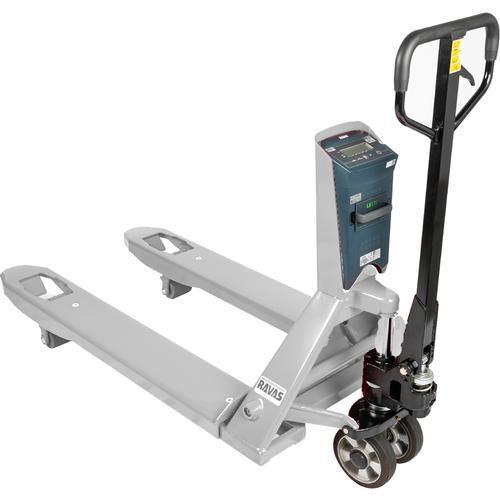

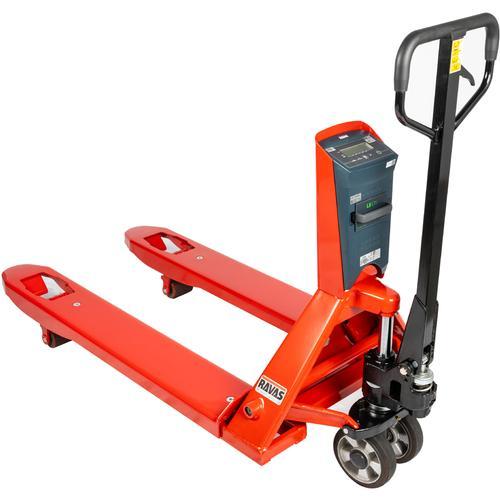

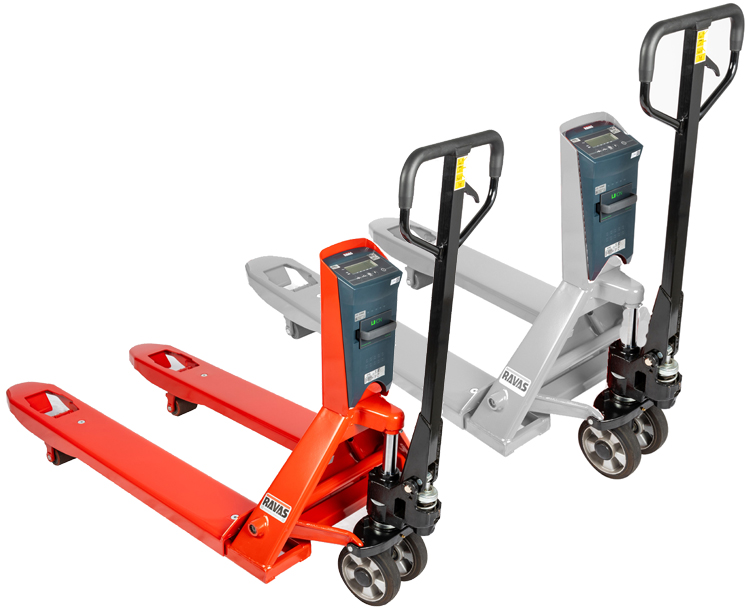

RAVAS-320 - Perfect for material handling warehouses and dosing and mixing processes, the RAVAS-320 comes standard with NTEP Legal-for-Trade certification for customers who buy, sell, or charge based on weight.
Extended scale functions
High accuracy - With a maximum tolerance of 0.1% of the forks' load, the RAVAS-320 is suitable for use in warehouses and production environments, such as mixing and batching.
Option: NTEP - Optionally, the RAVAS-320 can be NTEP-approved for commercial transactions. This allows you to invoice your customer by weight.

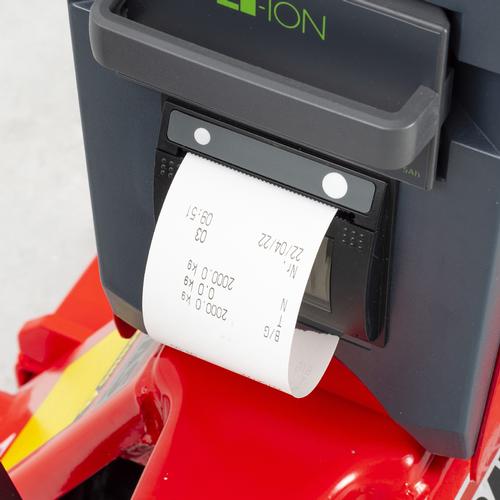

Option: Printer - The RAVAS-320 can be equipped with a built-in printer that prints weights, totals, a numerical ID, date/time, and article or order number.

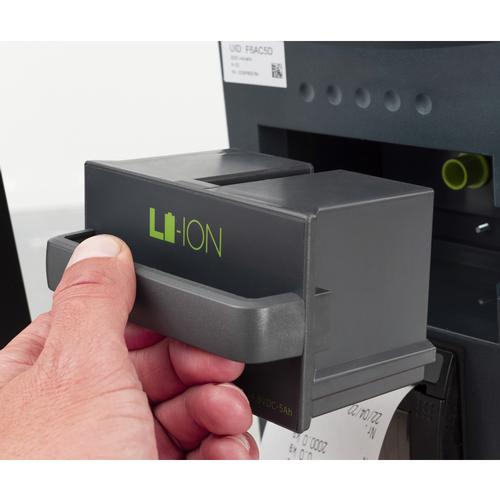

Option: Li-ion battery pack - A standard lead-acid battery pack powers the RAVAS-320 for 30 hours of use or by a Li-ion battery pack for 75 working hours. Both can be charged on a separate charger.
Creating additional revenue by re-weighing inbound pallets in your cross docking process is simplified with a RAVAS-320 Hand Pallet Jack. Our mobile weighing system includes a scale and onboard indicator so you can weigh while on the move. Perfect for material handling warehouses and dosing and mixing processes, the RAVAS-320 comes standard with NTEP Legal-for-Trade certification for customers who buy, sell, or charge based upon weight.
Extended Mobile Weighing Capabilities
- Standard NTEP approved
- High capacity Li-ion battery pack for 75 hours of continuous operation
- Optional automatic dosing function and Bluetooth/WiFi connectivity
- Three communication portals
- Compatible with RAVAS WeightsApp
FUNCTIONS
- Automatic and manual zero correction
- Gross/net weighing
- Automatic and manual tare
- Totalling with sequence number
- Code entry (5-digit)
- RS232 port for connection with printer

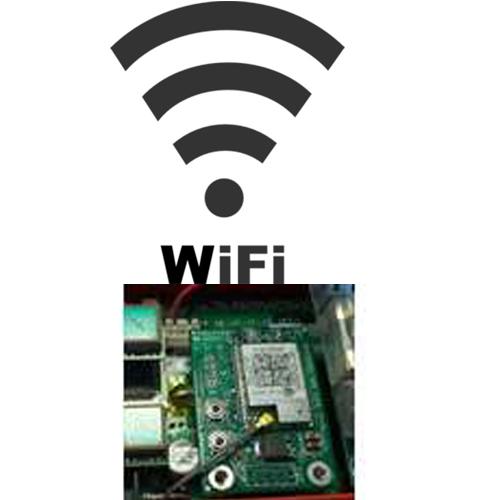

- Extra port for Bluetooth or WiFi option board

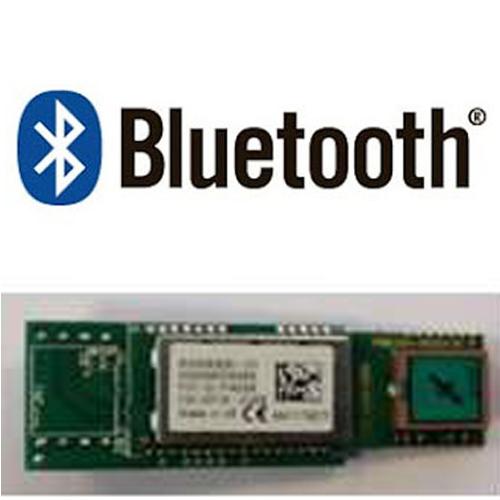

- Bluetooth 4.0 for RAVAS WeightsApp
- Internal clock
- Error messages in display
- Automatic switch-off after 30 minutes of non-use
- lb/kg toggle
STANDARD SPECIFICATIONS
- WEIGHT CAPACITY: Max. 5,000 lb
- GRADUATION: 0 - 5,000 lb: graduation 2 lb (optional: multirange graduation)
- MAXIMUM TOLERANCE: 0.1% of the load lifted

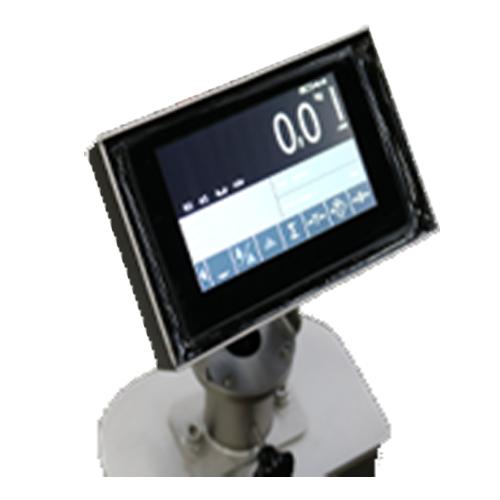

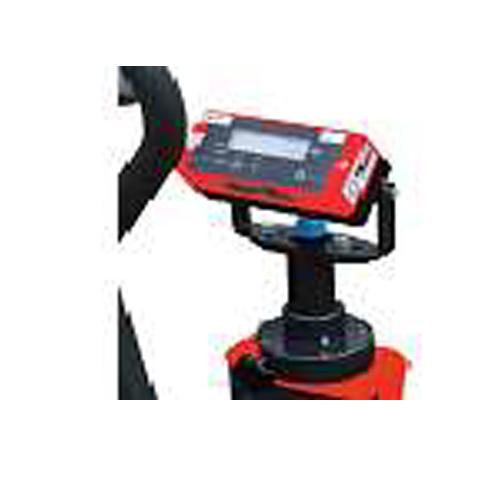

- DISPLAY: LCD, dual color, digit height 0.79", backlight
- KEYPAD: 5 function keys, on/of key
- PROTECTION CLASS: Load cells NEMA 5, display NEMA 4 (printer excluded)
- BATTERY: 14,8Vdc/5Ah, exchangeable, Li-ionbattery pack, charger included.
- BATTERY LIFE: 75 hours, low battery indication in display
- CHARGER: 110/120 - 14,8V. Approximately 6 hours charging time
- STEERING WHEELS: Rubber
- LOADING WHEELS: Polyurethane, single
- COLOR :Red (RAL 3000), epoxy painted
- OWN WEIGHT: 250 lb

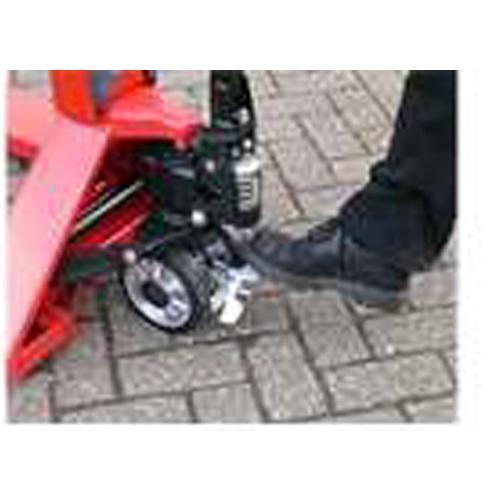

- PUMP: Quick lift
|
|
