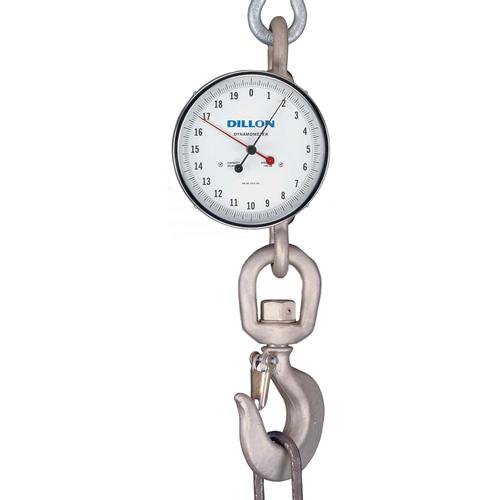

Dillon AP Crane Scale 30008-0058, 5000 x 20 lb

Proven reliability and performance

• Accuracy: to +/-0.5% of full scale
• Tare adjustment: up to 20% of full scale range
• Ultimate safety factor: 5:1 (4:1 for 20,000 lb, 50,000 lb, 10,000 kg and 20,000 kg)
• Dial diameter: 10
• Scale length: (from inside of eye to inside of hook)
  • Low Range: 25-1/2
  • Medium Range: 29-3/4
  • High Range: 37-1/2

Available in low, intermediate and high range models in either pound or kilogram models: 13 capacities from 500 to 50,000 pounds and 9 capacities from 200 to 20,000 kg.

Anti-parallax dial and pointer - easy to read even at an angle

Tare capability - tare loads up to 20% of caqpacity can be zeroed out with zero control

Dust protection - pinion gear, sector gear and shafts are mounted in precision aircraft bearings, permanently sealed against dust and dirt. Oiling is never required

Tough construction - mechanism case is a heavy aluminum allow casting, tough enough to resist even heavy blows

Ingenious design - utilizes a specially designed allow steel beam that translates force to pounds. Full scale reading results from beam deflection of only 0.026. Applied loads are indicated instantly.

Reduced wear - pinion and sector gears are cut from stainless steel and hardened aluminum. Use of these dissimilar materials greatly reduces friction and wear

Protective finish - scale cases are coated with a baked-on powder paint process making them resistant to chips, scratches, rust and corrosion

Maximum indicator - remains in position to indicate peak load point after load is removed from the scale

*4:1 ultimate safety factor - all other models have 5:1 ultimate safety factor
