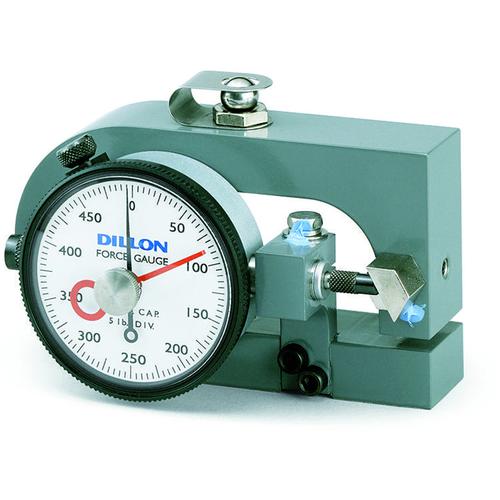

Dillon 30446-0074 X-C Compression Force Gauge with Maximum Hand , 500 x 5 lb

Proven accuracy and ruggedness sets the Dillon X-C mechanical force gauge apart in the force measurement industry. The “D" shaped deflection beam is the heart of the Force Gauge system. Highly engineered materials with close machining tolerances and proper heat treatment provide optimum strength and spring characteristics more ...
Test Equipment > Force Gauges > Mechanical Force Gauges
Dillon 30446-0074 X-C Compression Force Gauge with Maximum Hand , 500 x 5 lb

Specifications Chart View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

Dillon 30446-0074 X-C Compression Force Gauge with Maximum Hand , 500 x 5 lb
FREE Ground Shipping
(48 US States Only)

Price: $1,735.00


Available to Ship


Optional Accessories

View Features

Dillon
SKU: 30446-0074

Features

Proven accuracy and ruggedness sets the Dillon X-C mechanical force gauge apart in the force measurement industry. The “D" shaped deflection beam is the heart of the Force Gauge system. Highly engineered materials with close machining tolerances and proper heat treatment provide optimum strength and spring characteristics.

Ideal for stand alone force applications or often used as the load defining component of a much larger system.

The Dillon X-C compression calibration force gauge comes in 8 capacities ranging from 50 lb to 25,000 lb or 50 to 10000 kg. All X-C force gauges feature accuracy of ±1% of full capacity, except the 25,000 (10,000 kg) capacity instruments which are accurate to ±2% of full capacity.

Load is applied against a hardened ball which rotates to maintain vertical alignment as pressure increases. The ball is held in place with a spring clip or retainer. A threaded mounting hole is located opposite the loading ball in the bottom of the beam.

Optional shockless dial indicator is available for installations involving the sudden application or release of force (maximum pointer cannot be supplied with shockless dial indicator). A maximum load pointer is also available, which remains at peak load until manually reset.

The Dillon X-C compression gauge comes with force gauge assembly, carrying case and compression-loading spherical ball fitting (note: case is not included with the 25000 lb, 50000 lb, 10000 kg or 20000 kg models).


Weight: 20.00 lb
Other Dillon X-C Compression with Maximum Hand
Dillon 30386-0159 X-C Compression Force Gauge with Maximum Hand 100 x 1 lb
30386-0159
X-C Compression Force Gauge with Maximum Hand 100 x 1 lb

$1,735.00
Dillon 30446-0074 X-C Compression Force Gauge with Maximum Hand , 500 x 5 lb
30446-0074
X-C Compression Force Gauge with Maximum Hand
500 x 5 lb

$1,735.00

You are viewing this product
Dillon 30446-0090 X-C Compression Force Gauge with Maximum Hand , 250 x 2.5 lb
30446-0090
X-C Compression Force Gauge with Maximum Hand
250 x 2.5 lb

$1,735.00
Dillon 30444-0050 X-C Compression Force Gauge with Maximum Hand , 1000 x 10 lb
30444-0050
X-C Compression Force Gauge with Maximum Hand
1000 x 10 lb

$2,210.00
Dillon 30388-0058 X-C Compression Force Gauge with Maximum Hand, 2000 x 20 lb
30388-0058
X-C Compression Force Gauge with Maximum Hand
2000 x 20 lb

$2,210.00
Dillon 30389-0057 X-C Compression Force Gauge with Maximum Hand, 5000 x 50 lb
30389-0057
X-C Compression Force Gauge with Maximum Hand
5000 x 50 lb

$2,740.00
Dillon 30423-0055 X-C Compression Force Gauge with Maximum Hand, 10000 x 100 lb
30423-0055
X-C Compression Force Gauge with Maximum Hand
10000 x 100 lb

$3,840.00
Dillon 30449-0055 X-C Compression Force Gauge with Maximum Hand, 25000 x 250 lb
30449-0055
X-C Compression Force Gauge with Maximum Hand
25000 x 250 lb

$4,225.50

Specifications

Standard Compression Pounds Models

Model 30386-0035 30386-0043 30446-0033 30446-0017 30444-0019 30388-0017 30389-0016 30449-0014
Capacity & Dial Divisions 50 x 1/2 lb 100 x 1 lb 250 x 2-1/2 lb 500 x 5 lb 1000 x 10 lb 2000 x 20 lb 5000 x 50 lb 25000 x 250 lb

Compression Models with Maximum Hand in Pounds

Model with Maximum Hand 30386-0159 30446-0090 30446-0074 30444-0050 30388-0058 30389-0057 30423-0055 30449-0055
Capacity & Dial Divisions 100 x 1 lb 250 x 2-1/2 lb 500 x 5 lb 1000 x 10 lb 2000 x 20 lb 5000 x 50 lb 10000 x 100 lb 25000 x 250 lb

Compression Models with Maximum Hand in Kilogram

Model with Maximum Hand 30386-0183 30446-0181 30446-0082 30444-0068 30388-0066 30389-0065 30423-0063 30449-0063
Capacity & Dial Divisions 50 x 0.5 kg 100 x 1 kg 200 x 2 kg 500 x 5 kg 1000 x 10 kg 2000 x 20 kg 5000 x 50 kg 10000 x 100 kg

* within the 48 continental US States


Optional Accessories


Dillon Maximum Reading Pointer for X-Series Force Gauges
more info
Dillon Maximum Reading Pointer for X-Series Force Gauges
$140.00

Maximum reading pointer for Dillon X series force gauges
